Idler Gear Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Bearing Driver Attachment, 52 x 55 mm 07746-0010400
• Driver Handle, 15 x 135L 07749-0010000

1. Remove the idler gear shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).

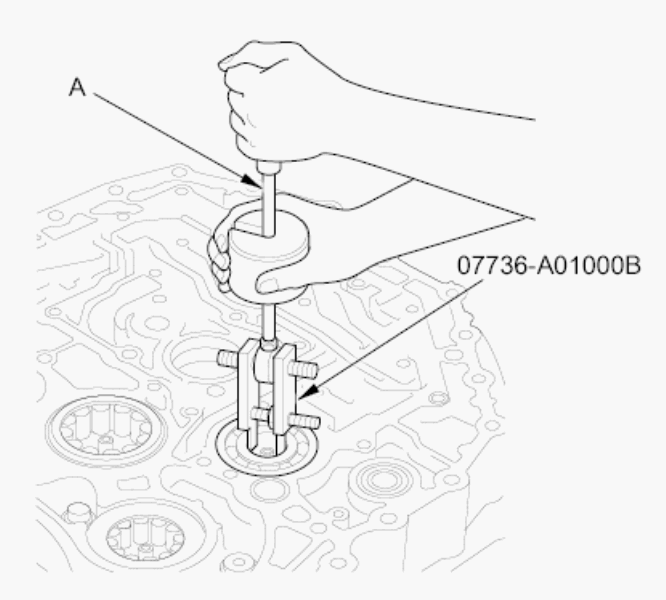

   Fig 1: Removing Idler Gear Shaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Locating ATF Guide Plate And Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the torque converter housing.
4. Drive the bearing until it bottoms into the torque converter housing using the 15x135L driver handle and the 52 x 55 mm bearing driver attachment.

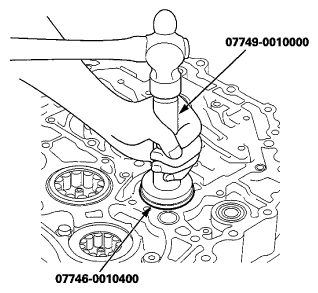

   Fig 3: Driving Bearing Into Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
