Countershaft Bearing Replacement

Special Tools Required

• Bearing Driver Attachment, 72 x 75 mm 07746-0010600
• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000

1. Remove the countershaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).

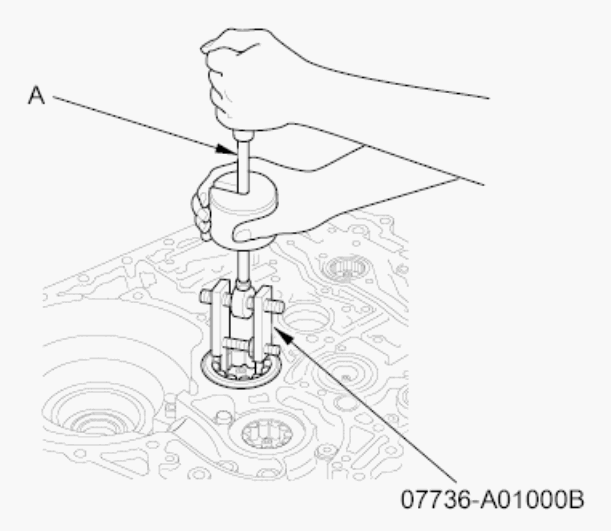

   Fig 1: Removing Countershaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Checking ATF Guide Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the direction shown.
4. Drive the bearing (A) in the torque converter housing using the 15 x 135L driver handle and the 72x75 mm bearing driver attachment; install the bearing outer notch-cut (B) to a depth (C) of 0-0.14 mm (0-0.0055 in) below the torque converter housing surface (D).

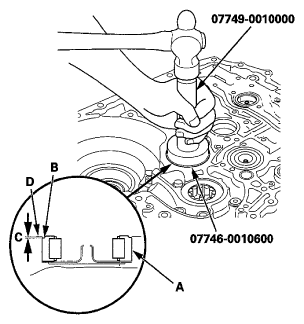

   Fig 3: Driving Bearing In Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
