PCM A/T Control System Electrical Connections
PCM A/T Control System Electrical Connections
WARNING:
This page is about a different variant/trim than selected.

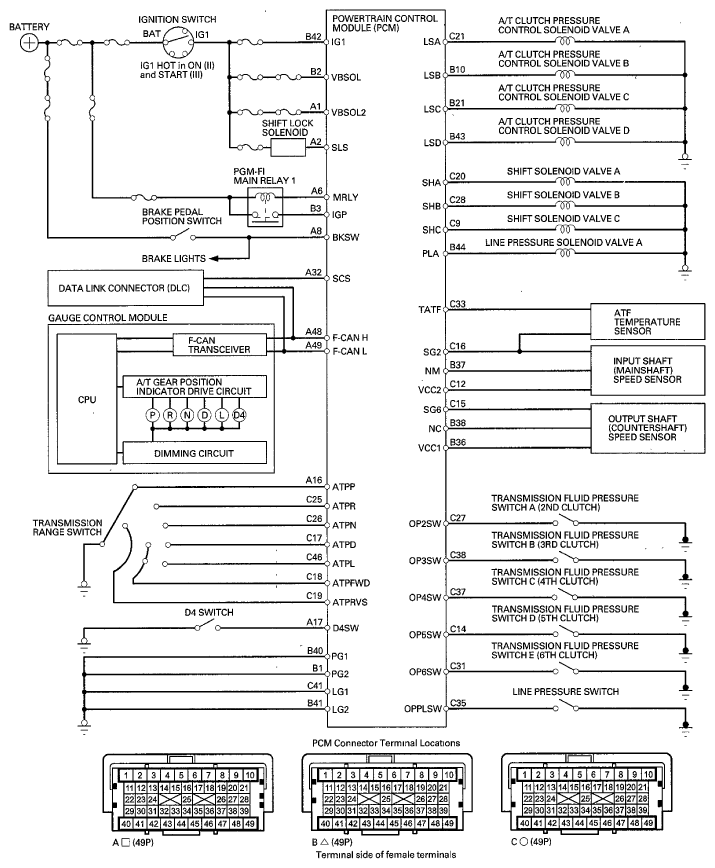

Fig 1: PCM A/T Control System Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
