Section 1 (Automatic Transmission - 6-Speed)
>>
System Description
>>
Clutches and Gears
>>
Transmission Cutaway View
Transmission Cutaway View
WARNING:
This page is about a different variant/trim than selected.

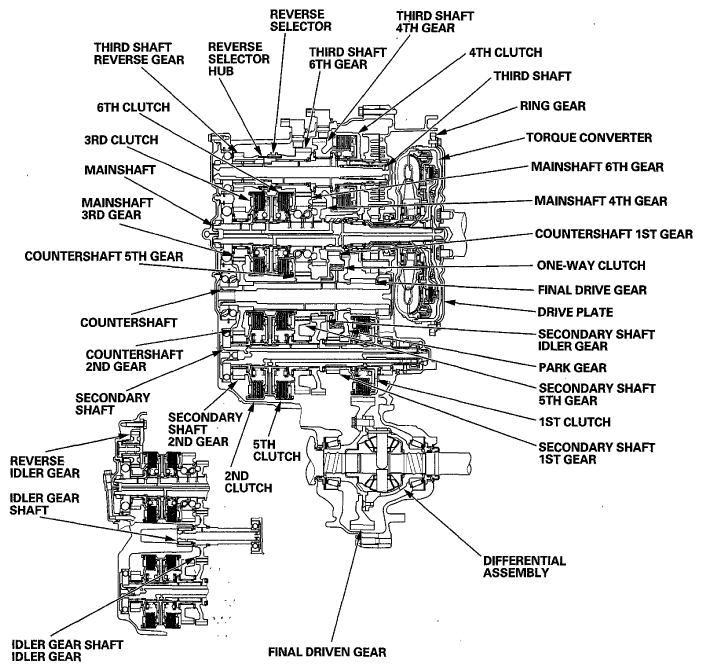

Fig 1: Transmission Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
