Shift Solenoid Valve C Test and Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

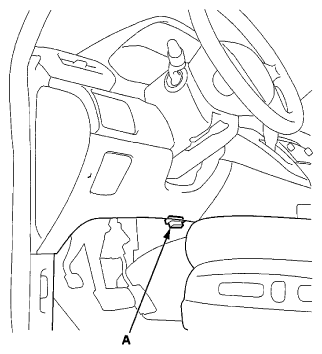

    Fig 1: Locating Data Link Connector
    G06969067Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  3. Select Shift Solenoid Valve C in the Miscellaneous Test Menu on the HDS.
  4. Check that shift solenoid valve C operates with the HDS. A clicking sound should be heard.
    • If a clicking sound is heard, the solenoid valve is OK. The test is complete, disconnect the HDS.
    • If no clicking sound is heard, go to step 5 and test the solenoid valve.
  5. Remove the ATF dipstick, then remove the front subframe damper (A).

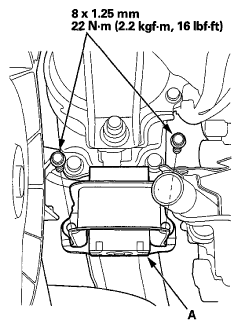

    Fig 2: Locating Front Subframe Damper And Bolts With Torque Specifications
    G06969068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Raise the vehicle on a lift, and make sure it is securely supported.
  7. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  8. Disconnect the shift solenoid valve C connector (A), and remove shift solenoid valve C (B) with the O-rings (C).

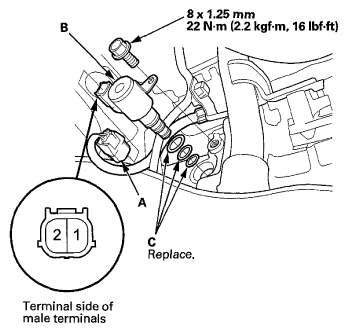

    Fig 3: Locating Shift Solenoid Valve C Connector, Shift Solenoid Valve C And O-Rings With Torque Specifications
    G06969069Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Measure the resistance of the shift solenoid valve between connector terminals No. 1 and No. 2.

    Standard: 13.8-17.1 Ω

    • If the resistance is out of the standard, go to step  14 and replace the shift solenoid valve.
    • If the resistance is within the standard, go to step 10 and check the solenoid valve for a clicking sound and operation.
  10. Connect a tube (A) to shift solenoid valve C (B).
    Fig 4: Locating Tube And Shift Solenoid Valve C
    G06969070Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Connect a jumper wire from the negative battery terminal to shift solenoid valve C connector terminal No. 1, and connect another jumper wire from the positive battery terminal to connector terminal No. 2.
    • If a clicking sound is heard, go to step 12.
    • If no clicking sound is heard, go to step  14 and replace the shift solenoid valve.
  12. Connect a jumper wire from the negative battery terminal to shift solenoid valve C connector terminal No. 1, and connect another jumper wire from the positive battery terminal to connector terminal No. 2. Blow air into the tube (A):
    • If the air goes out of the port (C), go to step 13.
    • If the air does not go out of the port (C), go to step  14 and replace the shift solenoid valve.
  13. Disconnect the jumper wires from the shift solenoid valve C connector. Blow air into the tube.
    • If the air goes out of the port (C), go to step 14 and replace shift solenoid valve C.
    • If the air does not go out of the port (C), repair the wire between the PCM connector terminal and shift solenoid valve C.
  14. Install new O-rings (three O-rings per solenoid valve) on the solenoid valve.
    NOTE: A new solenoid valve comes with new O-rings. If you install a new solenoid valve, use the O-rings provided with it.
  15. Install shift solenoid valve C, and connect the shift solenoid valve C connector.
  16. Install the front subframe damper and the ATF dipstick.
  17. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
