Shift Lever Knob and Shift Lever Knob Cover Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble or assemble it.

Pull down the shift lever ring (A).

Fig 1: Removing Shift Lever Knob Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wrap the end of a flat-tip screwdriver (B) with tape, pry the shift lever knob cover (C) and remove it.
Remove the D4 switch (A) by expanding its lock tabs (B) from the shift lever knob (C).

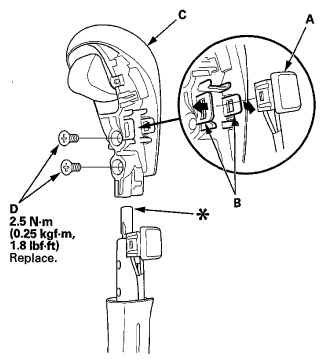

Fig 2: Locating D4 Switch, Lock Tabs And Shift Lever Knob With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (D), then remove the shift lever knob.
Install the shift lever knob over the shift lever.
Secure the shift lever knob with new screws.
Install the D4 switch in the shift lever knob.
Pull down the shift lever ring if necessary, and install the shift lever knob cover. Then pull up the shift lever ring to secure the knob cover.
