PCM Manufacturer Identification

WARNING: This page is about a different variant/trim than selected.

Remove the cover (A).

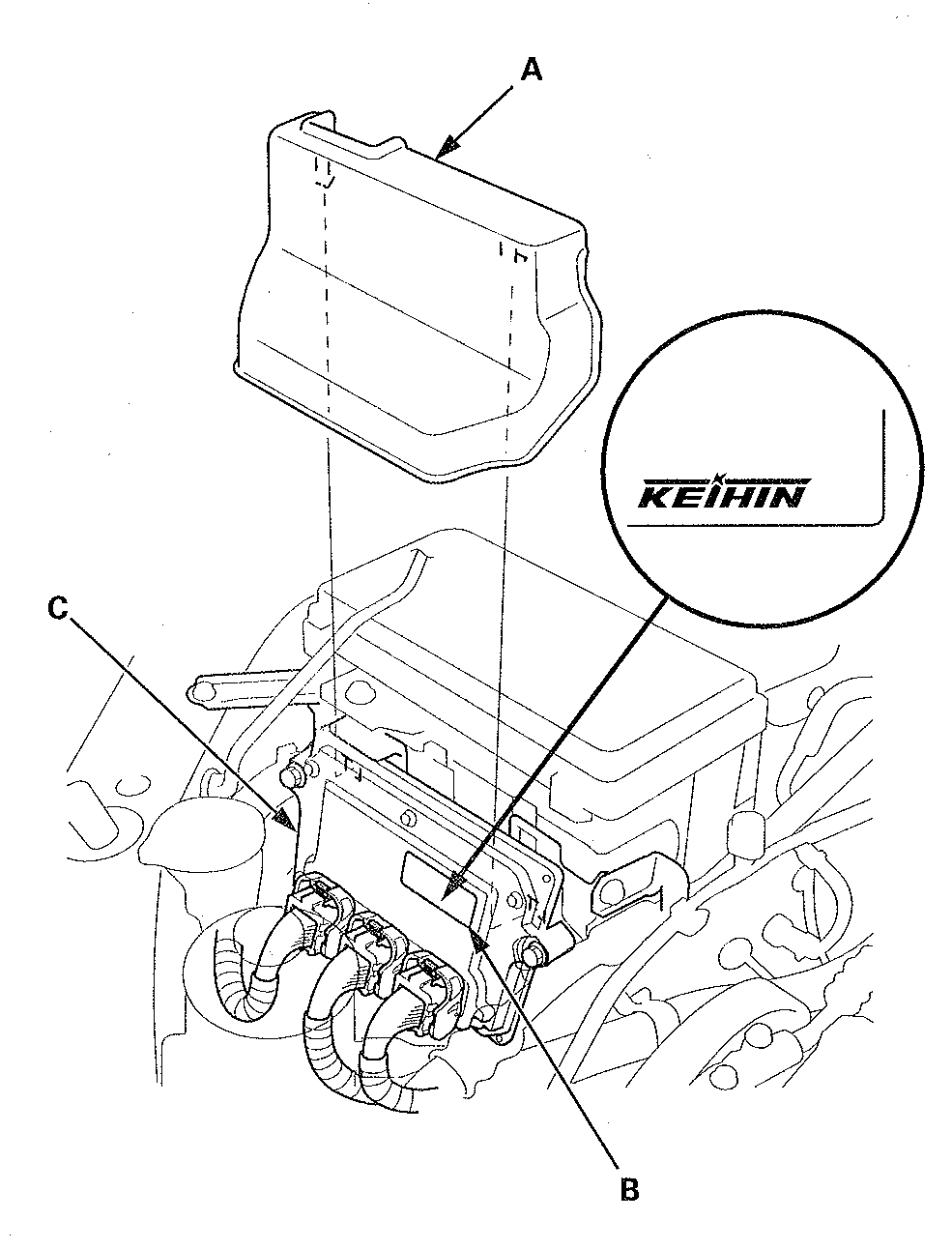

Keihin PCM

Fig 1: Identifying Keihin PCM
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to General Troubleshooting Information for more details.

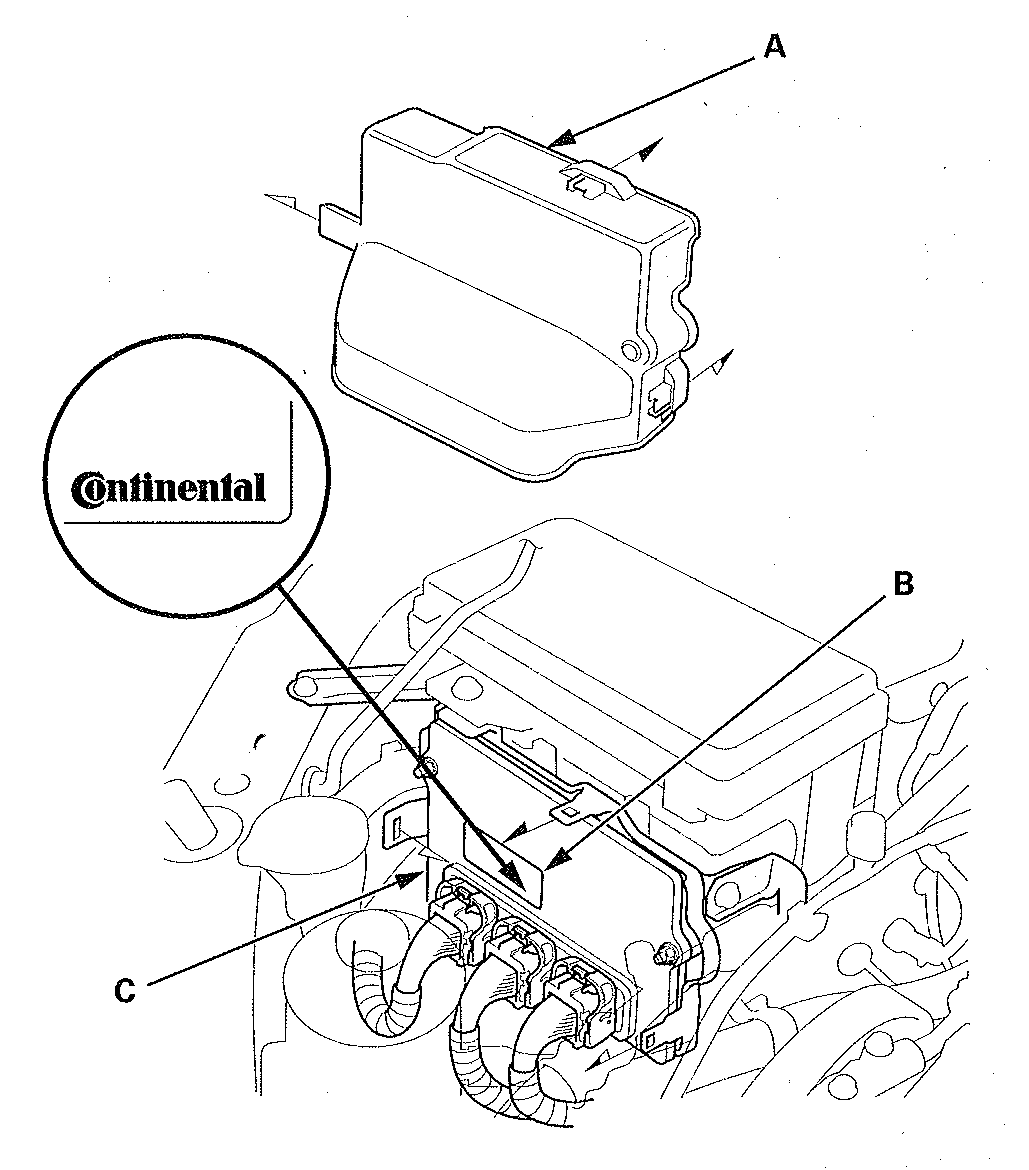

Continental PCM

Fig 2: Identifying Continental PCM
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to General Troubleshooting Information for more details.
Check the label (B) on the PCM (C) to determine if the PCM was manufactured by Keihin or Continental.
After check the label, install the cover.
