Clear A/T DTCs Procedures

WARNING: This page is about a different variant/trim than selected.
  1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

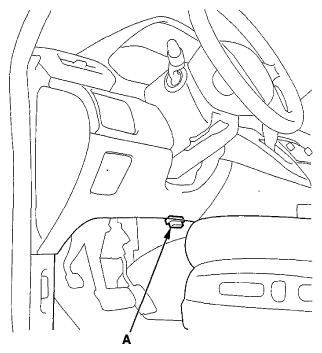

    Fig 1: Locating Data Link Connector
    G06968902Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).
  3. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  4. Clear the DTC(s) on the HDS screen.
