Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Remove the battery base (see step 10 on ENGINE REMOVAL ).
Disconnect the positive starter cable (A) and the S terminal connector (B).

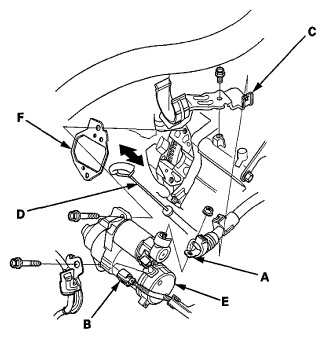

Fig 1: Identifying Positive Starter Cable And S Terminal Connector, Radiator Hose Bracket, Dipstick, Starter, Starter And Gasket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the upper radiator hose bracket (C) and the dipstick (D).
Remove the two bolts holding the starter, then remove the starter (E) and the gasket (F).
