Timing Belt Inspection

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  2. Remove the front upper cover.

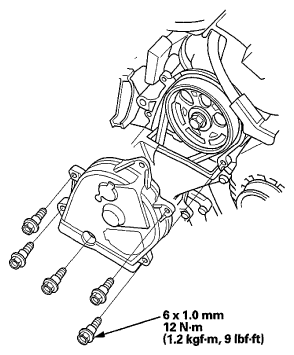

    Fig 1: Front Upper Cover With Bolts And Torque Specifications
    G06963543Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the timing belt for cracks and oil or coolant contamination. Replace the belt if it is cracked, or contaminated with oil or coolant. Wipe off any oil or solvent that gets on the belt pulleys.
    NOTE: If there is any leakage, repair them before replacing the timing belt.

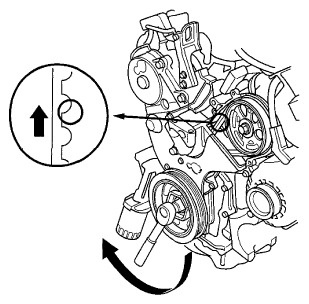

    Fig 2: Identifying Timing Belt For Cracks And Oil Or Coolant Contamination
    G06963544Courtesy of AMERICAN HONDA MOTOR CO., INC.
