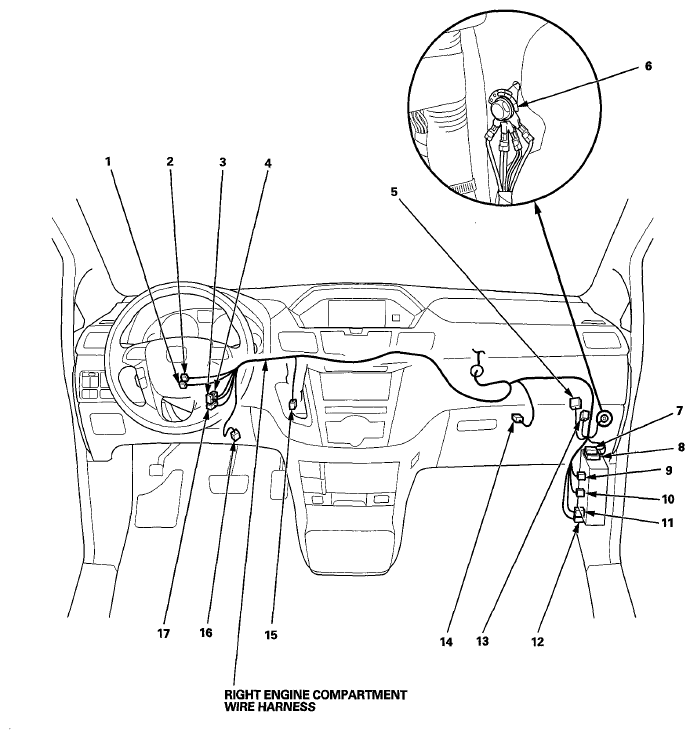

Right Engine Compartment Wire Harness (Dashboard Branch) (F)
RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||
|---|---|---|---|---|---|---|---|---|---|
| Acceleration pedal position (APP) sensor | 15 | 6 | Under left side of dash | ||||||
| Brake pedal position switch | 16 | 4 | Under left side of dash | ||||||
| Engine mount control unit | 5 | 16 | Under right side of dash | ||||||
| Passenger's under-dash fuse/relay box connector A (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 10 | 13 | Under right side of dash | ||||||
| Passenger's under-dash fuse/relay box connector C (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 9 | 2 | Under right side of dash | ||||||
| C202 | 14 | 2 | Right kick panel | Front A/C wire harness (see Front A/C Wire Harness (K) ) | |||||
| C203 (Junction connector) | 13 | 12 | Under right side of dash | ||||||
| C204 | 7 | 4 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) (see Dashboard Wire Harness (View of Middle to Passenger's Side) (H) ) | |||||
| C205 | 8 | 34 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) (see Dashboard Wire Harness (View of Middle to Passenger's Side) (H) ) | (1) | ||||
| C205 | 8 | 20 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) (see Dashboard Wire Harness (View of Middle to Passenger's Side) (H) ) | (2) | ||||
| C206 | 11 | 5 | Under right side of dash | Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) | |||||
| C207 | 12 | 6 | Under right side of dash | Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) | |||||
| C208 | 1 | 5 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||
| C209 | 2 | 2 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||
| C210 | 17 | 20 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||
| C211 | 3 | 3 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||
| C212 | 4 | 8 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||
| G204 | 6 | Under right side of dash | Body ground, via right side engine compartment wire harness | ||||||
|
|||||||||
