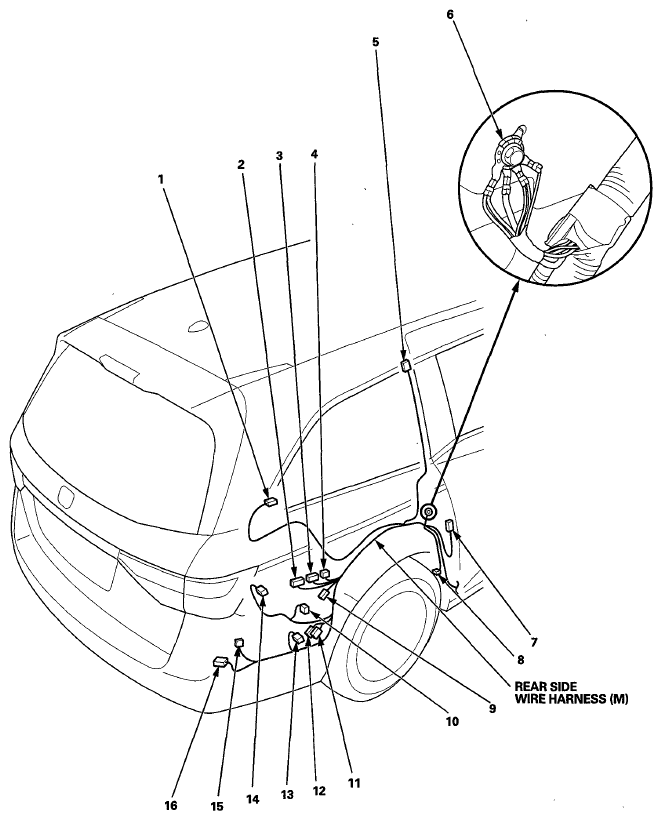

| Rear A/C control unit connector B |
14 |
5 |
Right rear side trim panel |
|
|
| Rear blower motor |
10 |
2 |
Right rear side trim panel |
|
|
| Rear power transistor |
13 |
4 |
Right rear side trim panel |
|
|
| Rear suspension stroke sensor |
8 |
3 |
Right C-pillar |
|
|
| Right power sliding door control unit connector A |
3 |
12 |
Right rear side trim panel |
|
|
| Right power sliding door control unit connector B |
2 |
16 |
Right rear side trim panel |
|
|
| Right power sliding door control unit connector C |
4 |
5 |
Right rear side trim panel |
|
|
| Right satellite speaker |
1 |
2 |
Right D-pillar |
|
|
| Right side curtain airbag inflator |
5 |
4 |
Right C-pillar |
|
|
| Right side impact sensor (Third) |
9 |
4 |
Right rear side trim panel |
|
|
| Right sliding door switch |
7 |
1 |
Right C-pillar |
|
|
| XM receiver connector A |
15 |
14 |
Right rear side trim panel |
|
|
| C607 |
12 |
13 |
Right rear side trim panel |
Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) ) |
|
| C607 |
12 |
5 |
Right rear side trim panel |
Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) ) |
|
| C608 |
11 |
16 |
Right rear side trim panel |
Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) ) |
|
| C654 |
16 |
12 |
Right rear side trim panel |
Rear wire harness (see Rear Wire Harness (N) ) |
|
| C654 |
16 |
2 |
Right rear side trim panel |
Rear wire harness (see Rear Wire Harness (N) ) |
|
| G652 |
6 |
|
Right C-pillar |
Body ground, via right side wire harness |
|
