Component Location Index

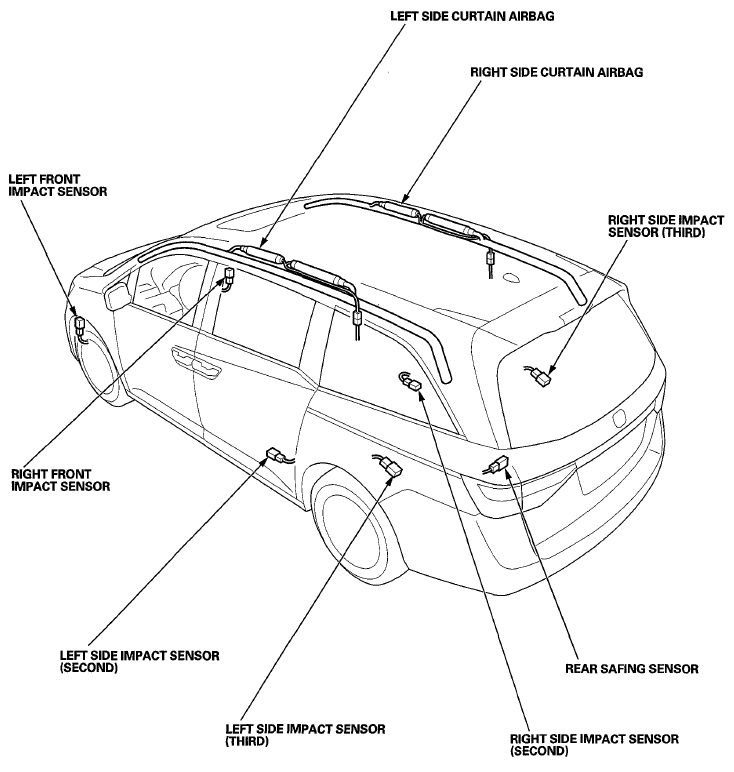

Fig 1: SRS Components Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

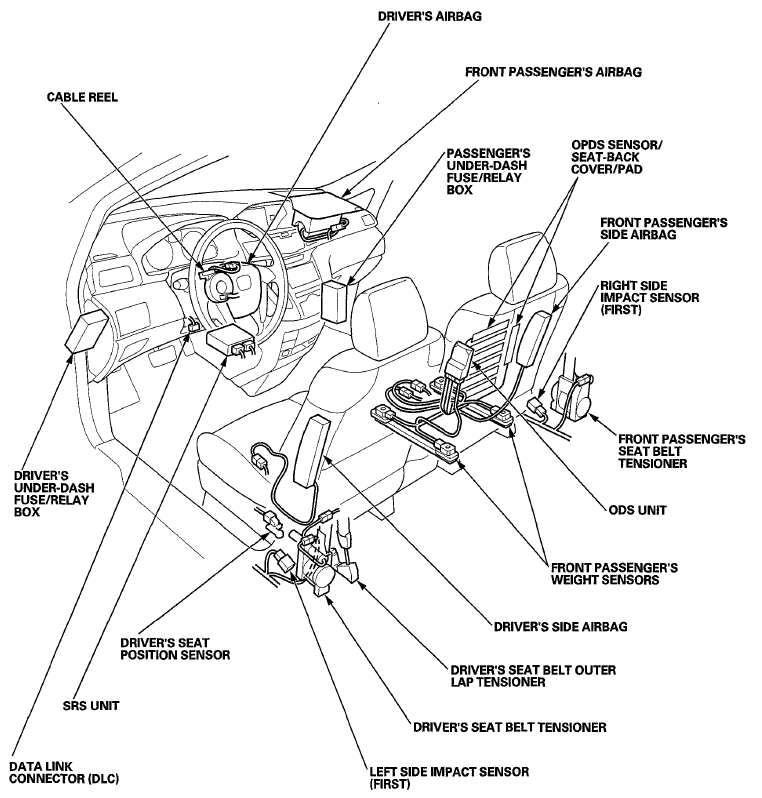

Fig 2: SRS Components Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

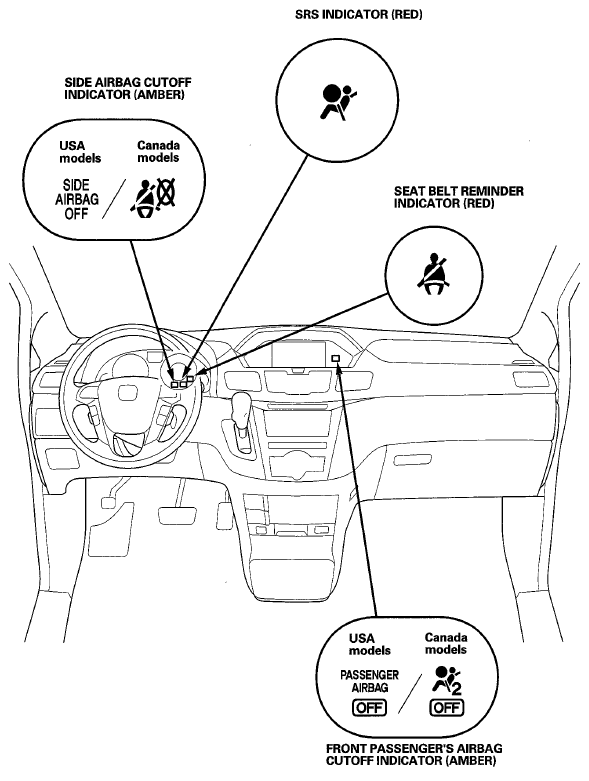

Fig 3: Identifying SRS (Supplemental Restraint System) Indicators

Courtesy of AMERICAN HONDA MOTOR CO., INC.
