Recirculation Control Motor Replacement: Installation

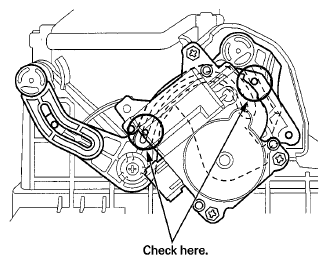

  1. Make sure the damper lever pins in the motor lever are visible through the holes.
    Fig 1: Identifying Damper Lever Pins Checking Position
    G06968245Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. While holding the recirculation control motor (A), install the self-tapping screws.
    Fig 2: Identifying Recirculation Control Motor
    G06968246Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the blower unit (see BLOWER UNIT REMOVAL/INSTALLATION  ).
  4. After installation, make sure the motor runs smoothly.
