Right Engine Compartment Wire Harness (Engine Compartment Branch) (F)

RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) REFERENCE CHART

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

A/C condenser fan motor

Front of engine compartment

A/C pressure sensor

Rear of engine compartment

Rear engine mount actuator

Rear of engine compartment

Front suspension stroke sensor

Right side of engine compartment

⁽⁵⁾

Horn (High)

Right side of engine compartment

Horn (Low)

Left side of engine compartment

Left fog light

Behind left side of front bumper

Left front corner sensor

Behind left side of front bumper

⁽³⁾

Left front turn signal/parking/side marker light

Behind left headlight

Left headlight (high)

Behind left headlight

Left headlight (low)

Behind left headlight

⁽⁶⁾

Left HID unit

Behind left headlight

⁽⁵⁾

Left headlight leveling motor

Behind left headlight

⁽⁵⁾

Optional connector (for fog light)

Right side of engine compartment

⁽⁷⁾

Outside air temperature sensor

Behind left side of front bumper

⁽²⁾

PCM connector A

Right side of engine compartment

Power steering pressure (PSP) switch

Rear of engine compartment

Radiator fan motor

Front of engine compartment

Relay control module connector B (see UNDER-HOOD FUSE/RELAY BOX (RELAY CONTROL MODULE PART) )

Right side of engine compartment

Relay control module connector C (see UNDER-HOOD FUSE/RELAY BOX (RELAY CONTROL MODULE PART) )

Right side of engine compartment

Relay control module connector D (see UNDER-HOOD FUSE/RELAY BOX (RELAY CONTROL MODULE PART) )

Right side of engine compartment

Relay control module connector E (see UNDER-HOOD FUSE/RELAY BOX (RELAY CONTROL MODULE PART) )

Right side of engine compartment

Right fog light

Behind right side of front bumper

Right front impact sensor

Behind right side of front bumper

Right front corner sensor

Behind right side of front bumper

⁽³⁾

Right front turn signal/parking/side marker light

Behind right headlight

Right headlight (high)

Behind right headlight

Right headlight (low)

Behind right headlight

⁽⁶⁾

Right headlight leveling motor

Behind right headlight

⁽⁵⁾

Right HID unit

Behind right headlight

⁽⁵⁾

Right-front wheel speed sensor

Right side of wheel well

Security hood switch

Front of engine compartment

⁽⁴⁾

Under-hood fuse/relay box connector A (see UNDER-HOOD FUSE/RELAY BOX )

Right side of engine compartment

Under-hood fuse/relay box connector B (see UNDER-HOOD FUSE/RELAY BOX )

Right side of engine compartment

Under-hood fuse/relay box connector C (see UNDER-HOOD FUSE/RELAY BOX )

Right side of engine compartment

Under-hood fuse/relay box connector D (see UNDER-HOOD FUSE/RELAY BOX )

Right side of engine compartment

Washer fluid level switch

Behind right side of front bumper

⁽¹⁾

Windshield wiper motor

Left side of engine compartment

Windshield/rear window washer

Behind right side of front bumper

⁽¹⁾	Canada models

⁽²⁾	With climate control

⁽³⁾	With parking and back-up sensor system

⁽⁴⁾	With security

⁽⁵⁾

With HID

⁽⁶⁾	Without HID

⁽⁷⁾	Without fog light

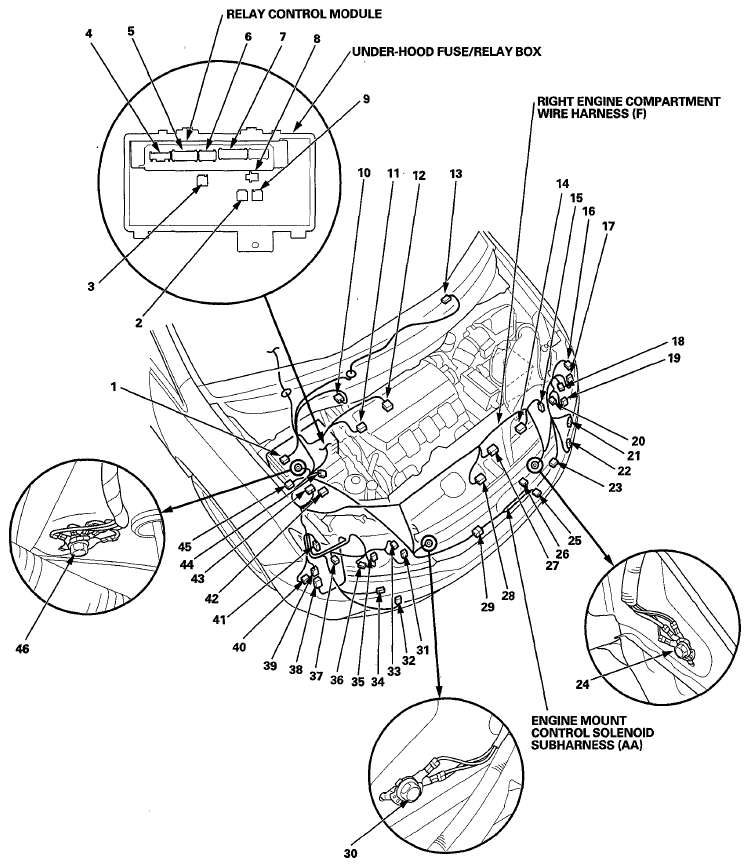

Fig 1: Identifying Right Engine Compartment Wire Harness

Courtesy of AMERICAN HONDA MOTOR CO., INC.

RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) REFERENCE CHART

Connector or Terminal	Ref	Cavities	Location	Connects to
C101	42	13	Right side of engine compartment	Engine wire harness (see Engine Wire Harness (Engine Section) (D) )
C201	29	4	Front of engine compartment	Engine mount control solenoid subharness
G201	24		Left side of engine compartment	Body ground, via right side engine compartment wire harness
G202	30		Right side of engine compartment	Body ground, via right side engine compartment wire harness
G203	46		Right side of engine compartment	Body ground, via right side engine compartment wire harness
