Left Engine Compartment Wire Harness (Dashboard Branch) (G)

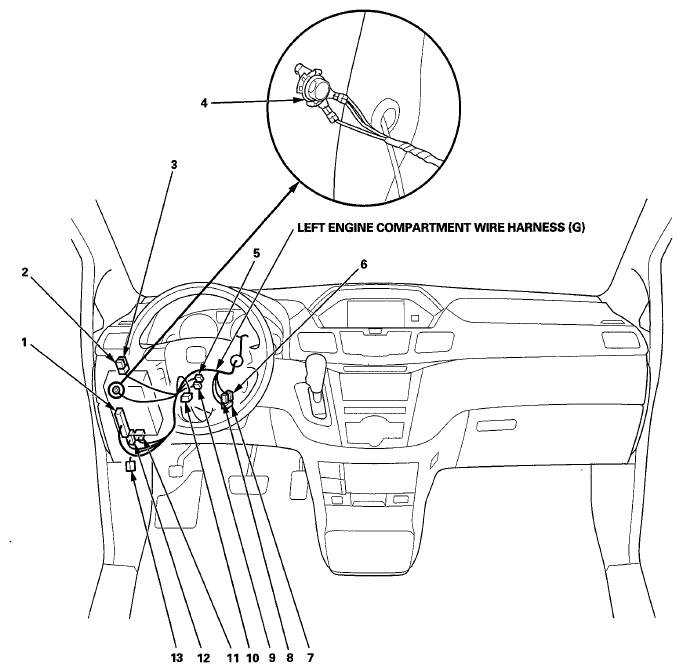

LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's under-dash fuse/relay box connector F (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 1 | 32 | Under left side of dash | ||
| Parking brake switch | 10 | 1 | Under left side of dash | ||
| Relay block (front blower motor relay) | 2 | 4 | Under left side of dash | ||
| Relay block (interior lights cut relay) | 3 | 4 | Under left side of dash | ||
| C208 | 9 | 5 | Under left side of dash | Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) | |
| C209 | 5 | 2 | Under left side of dash | Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) | |
| C210 | 7 | 20 | Under left side of dash | Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) | |
| C211 | 8 | 3 | Under left side of dash | Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) | |
| C212 | 6 | 8 | Under left side of dash | Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) | |
| C301 | 11 | 4 | Under left side of dash | Dashboard wire harness (view of driver's side) (see Dashboard Wire Harness (View of Driver's Side) (H) ) | |
| C302 | 12 | 16 | Under left side of dash | Dashboard wire harness (view of driver's side) (see Dashboard Wire Harness (View of Driver's Side) (H) ) | |
| C303 | 13 | 2 | Under left side of dash | Left side wire harness (left front branch) (see Left Side Wire Harness (Left Front Branch) (L) ) | |
| G302 | 4 | Under left side of dash | Body ground, via left engine compartment wire harness |
