Left CESS Articulated Harness (T)

LEFT CESS ARTICULATED HARNESS REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
C605 13 21 Left side of floor Left side wire harness (left front branch) (see Left Side Wire Harness (Left Front Branch) (L) ) (1)
C605 13 6 Left side of floor Left side wire harness (left front branch) (see Left Side Wire Harness (Left Front Branch) (L) ) (2)
C606 14 6 Left side of floor Left side wire harness (left front branch) (see Left Side Wire Harness (Left Front Branch) (L) )
C681 11 21 Left sliding door Left sliding door wire harness (1)
C681 11 6 Left sliding door Left sliding door wire harness (2)
C682 12 6 Left sliding door Left sliding door wire harness
CESS: Constant Electricity Supply System
(1) With power sliding door
(2) Without power sliding door

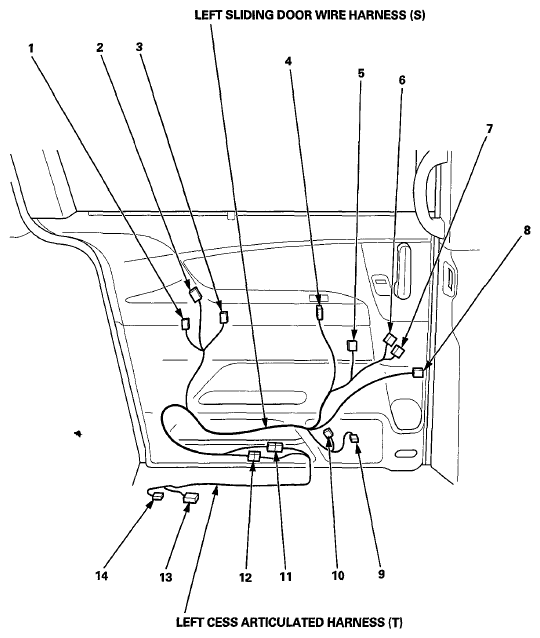

Fig 1: Identifying Left Sliding Door Wire Harness And Left CESS Articulated Harness
G06968522Courtesy of AMERICAN HONDA MOTOR CO., INC.
