Component Location Index
>>
Without Multi-Information Display
Without Multi-Information Display

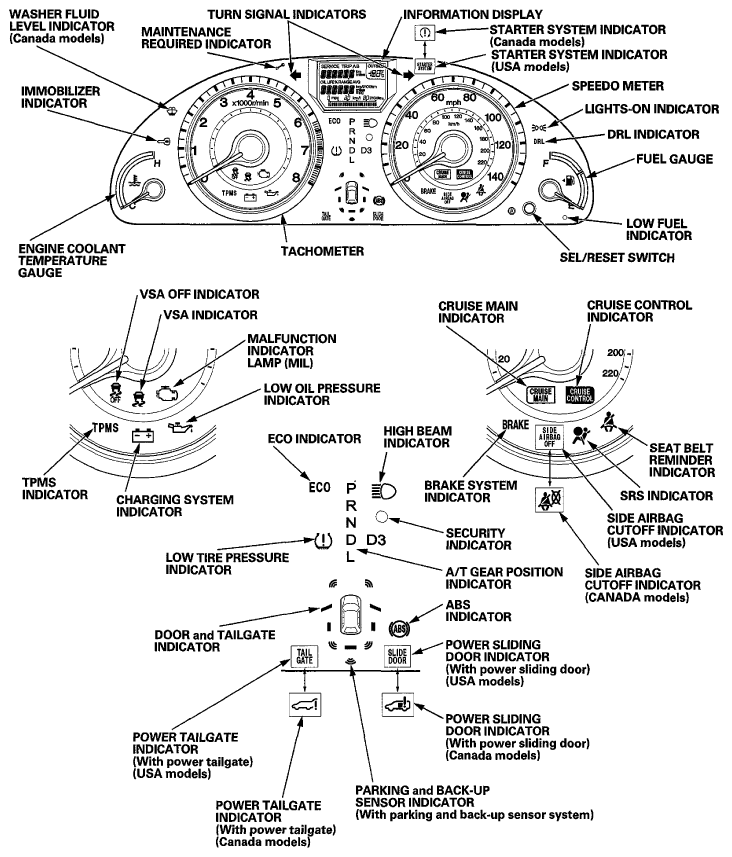

Fig 1: Identifying Vehicle Gauge System Components Without Multi-Information Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.

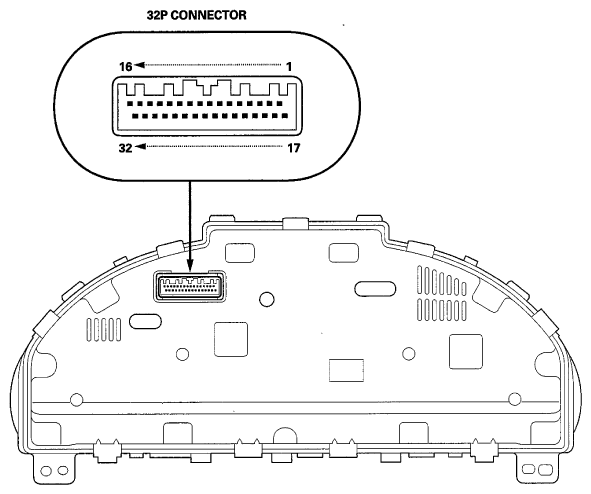

Fig 2: Identifying 32P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
