Transmission Fluid Pressure Switch B (3RD Clutch) Replacement

Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block rear wheels, and raise the front of the vehicle. Make sure it is securely supported.

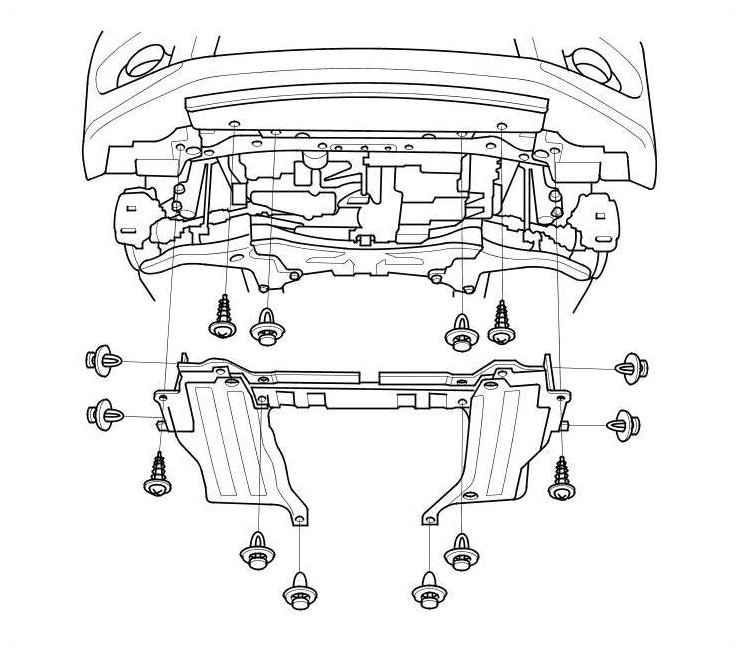

2. Remove the splash shield.






3. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, then remove the transmission fluid pressure switch B (3rd clutch).

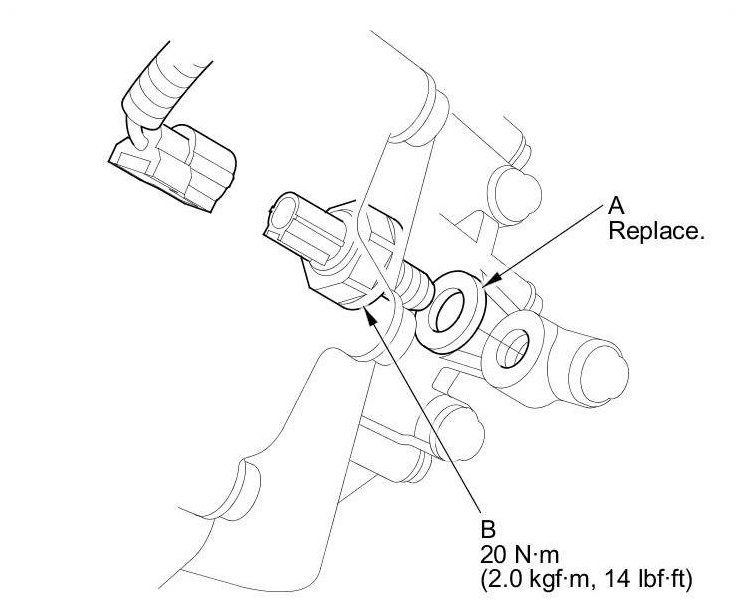

4. Install the new transmission fluid pressure switch B (3rd clutch) with a new sealing washer (A), and tighten the metal part of the switch.

5. Make sure there is no water, oil, dust, or foreign particles inside the connector.

6. Connect the connector securely.

7. Install the splash shield.
