Transmission Fluid Pressure Switch A (2ND Clutch) Replacement

Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

1. Remove the air cleaner assembly Service and Repair.

2. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove the transmission fluid pressure switch A (2nd clutch).

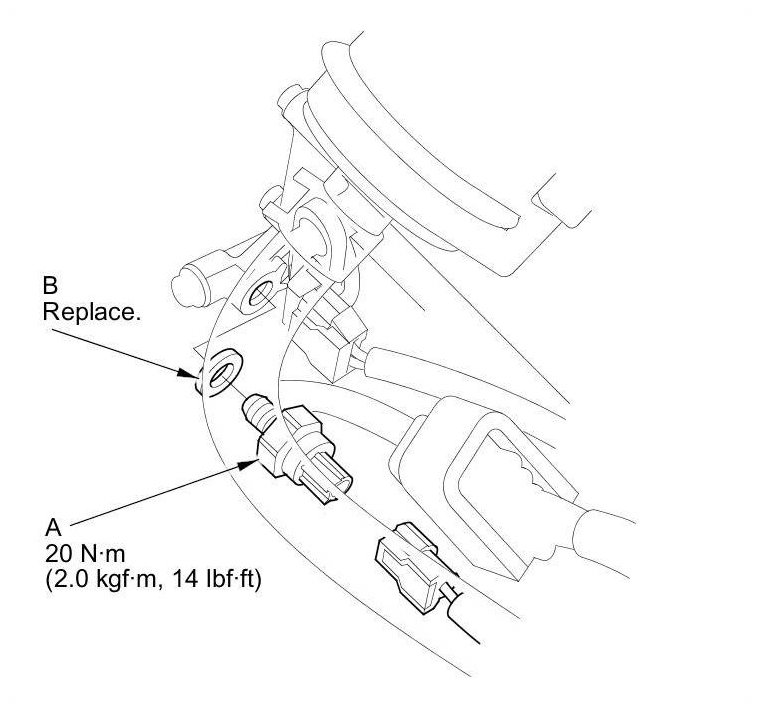

3. Install the new transmission fluid pressure switch A (2nd clutch) with a new sealing washer (B), and tighten the metal part of the switch.

4. Make sure there is no water, oil, dust, or foreign particles inside the connectors.

5. Connect the connector securely.

6. Install the air cleaner assembly Service and Repair.
