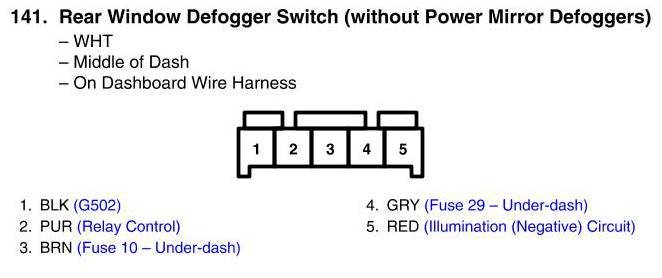

Rear Window Defogger Switch Connector View (Without Power Mirror Defoggers)
Rear Window Defogger Switch Connector View (Without Power Mirror Defoggers)
