ECT Sensor 2 Replacement

ECT Sensor 2 Replacement

1. Drain the engine coolant Service and Repair.

2. Raise the vehicle on a lift Service and Repair.

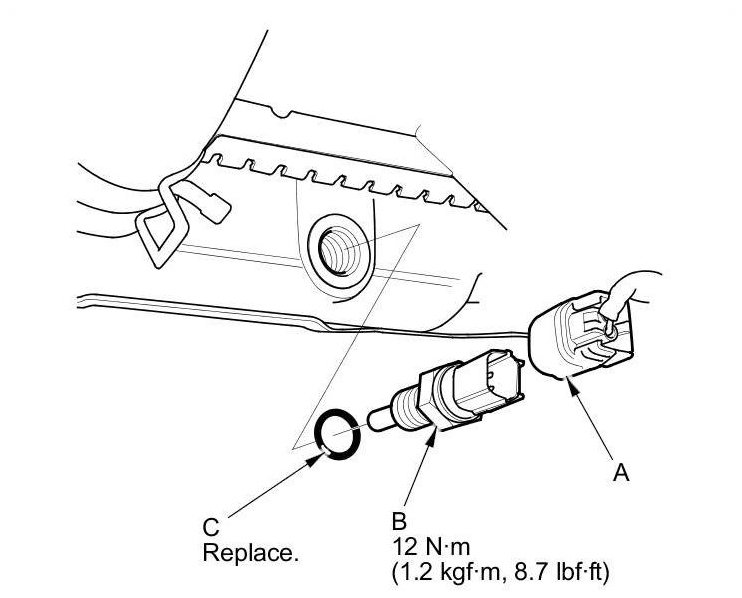

3. Disconnect the ECT sensor 2 connector (A), then remove ECT sensor 2 (B).





4. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant Service and Repair.
