Hazard Warning Switch: Service and Repair

Hazard Warning Switch Test/Replacement

1. Remove the audio panel.

- With navigation unit
- Without navigation unit

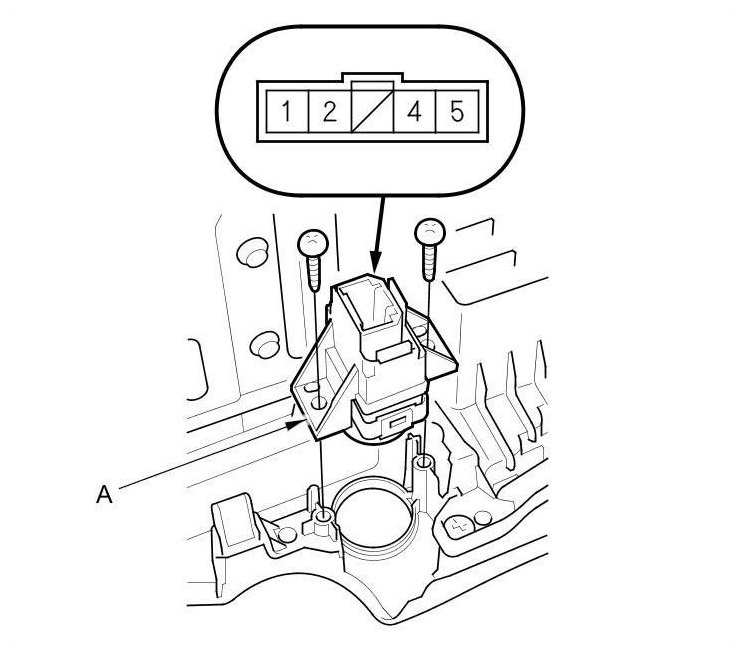

2. Remove the two screws and the hazard warning switch (A).

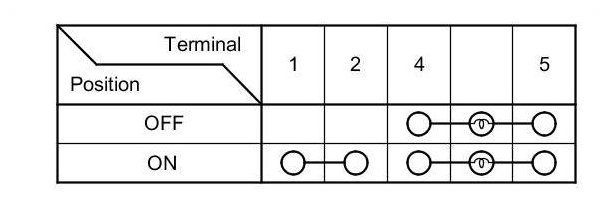

3. Check for continuity between the terminals in each switch position according to the table.

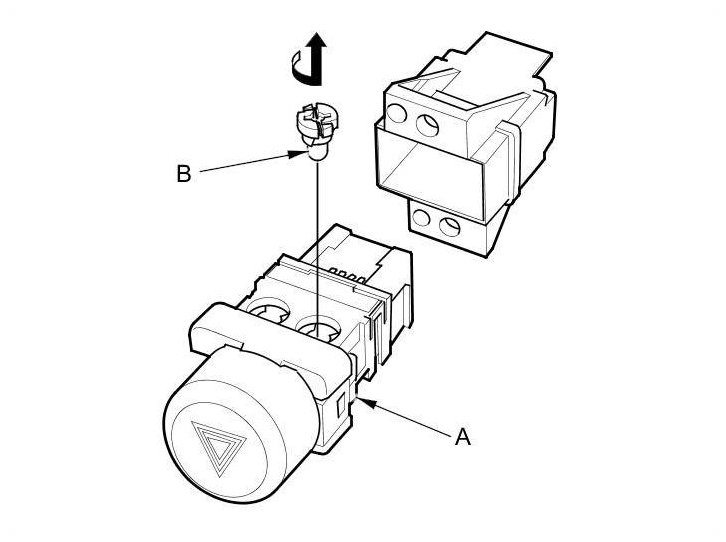

4. If the continuity is not as specified for terminals 1 and 2, replace the switch (A). If the continuity is not as specified for terminals 4 and 5, replace the bulb (B).





5. Install the switch in the reverse order of removal.
