Camshaft Installation

Camshaft Installation

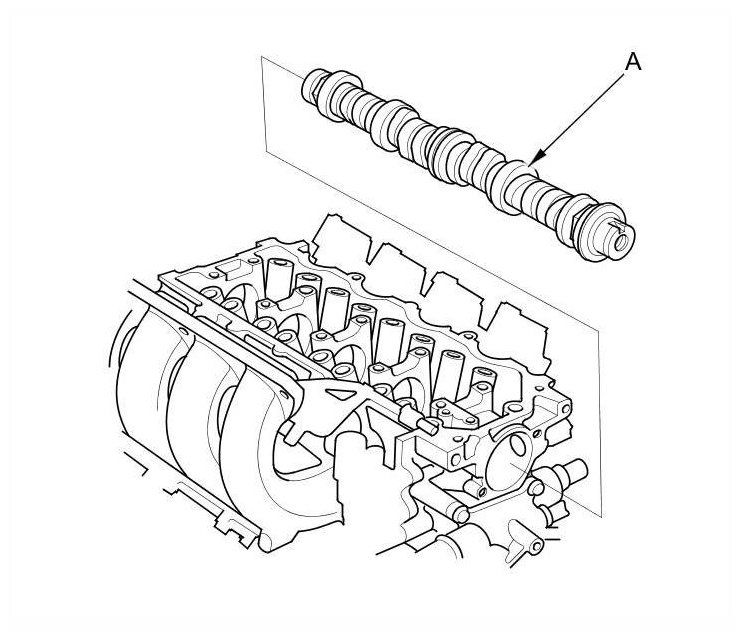

1. Insert the camshaft (A). Apply new engine oil to the journals and the cam lobes.





2. Install the CMP pulse plate.

3. Install the CMP sensor CMP Sensor Replacement.

4. Install the rocker arm assembly Rocker Arm Assembly Installation.

5. Install the camshaft sprocket Camshaft Sprocket Installation.
