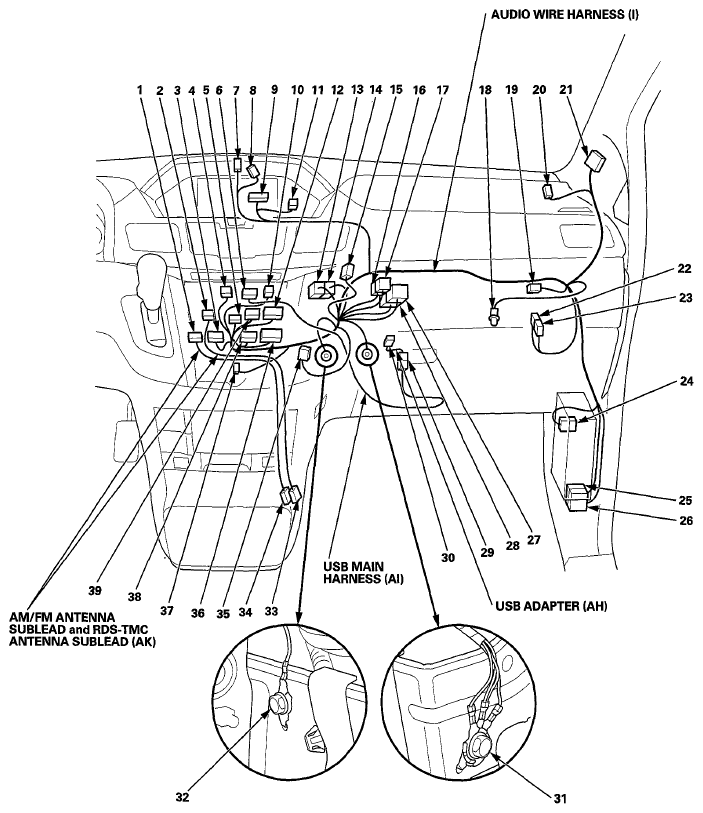

| Active noise cancellation unit |
15 |
20 |
Under middle of dash |
|
|
| Audio-navigation unit connector A |
36 |
24 |
Under middle of dash |
|
|
| Audio-navigation unit connector B |
38 |
24 |
Under middle of dash |
|
|
| Audio-navigation unit connector C |
12 |
28 |
Under middle of dash |
|
|
| Audio-navigation unit connector D |
3 |
14 |
Under middle of dash |
|
|
| Audio-navigation unit connector E |
5 |
16 |
Under middle of dash |
|
|
| Audio-navigation unit connector F |
39 |
20 |
Under middle of dash |
|
|
| Audio-navigation unit connector G |
4 |
8 |
Under middle of dash |
|
|
| Audio-navigation unit connector J |
10 |
2 |
Under middle of dash |
|
|
| Automatic lighting/sunlight sensor |
7 |
5 |
Under middle of dash |
|
|
| Front center speaker |
8 |
2 |
Under middle of dash |
|
|
| Front passenger's airbag cutoff indicator |
11 |
4 |
Under middle of dash |
|
|
| Glove box light |
18 |
2 |
Under right side of dash |
|
|
| HandsFreeLink control unit |
35 |
32 |
Under middle of dash |
|
|
| Interface dial |
37 |
5 |
Under middle of dash |
|
|
| Navigation display unit |
9 |
32 |
Under middle of dash |
|
|
| Navigation service check connector |
19 |
2 |
Under right side of dash |
|
|
| Passenger's under-dash fuse/relay box connector G (see
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
) |
24 |
2 |
Under right side of dash |
|
|
| Right front tweeter |
20 |
2 |
Under right side of dash |
|
|
| Stereo amplifier connector A |
22 |
24 |
Under right side of dash |
|
|
| Stereo amplifier connector B |
23 |
28 |
Under right side of dash |
|
|
| C412 |
27 |
16 |
Under right side of dash (view of middle to passenger's side) (see Dashboard Wire Harness (View of Middle to Passenger's Side) (H) ) |
Dashboard wire harness |
|
| C413 |
28 |
23 |
Under right side of dash (view of middle to passenger's side) (see Dashboard Wire Harness (View of Middle to Passenger's Side) (H) ) |
Dashboard wire harness |
|
| C501 (junction connector) |
17 |
12 |
Under right side of dash |
|
|
| C502 (junction connector) |
16 |
12 |
Under right side of dash |
|
|
| C503 (junction connector) |
13 |
12 |
Under middle of dash |
|
|
| C504 (junction connector) |
14 |
12 |
Under middle of dash |
|
|
| C505 |
21 |
34 |
Under right side of dash |
Roof wire harness:
|
|
| C505 |
21 |
16 |
Under right side of dash |
Roof wire harness:
|
|
| C506 |
25 |
34 |
Under right side of dash |
Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) |
|
| C507 |
26 |
14 |
Under right side of dash |
Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) |
|
| C507 |
26 |
8 |
Under right side of dash |
Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) |
|
| G501 |
31 |
|
Under right side of dash |
Body ground, via audio wire harness |
|
| G502 |
32 |
|
Under middle of dash |
Body ground, via audio wire harness |
|
