Electrical Compass
>>
Circuit Diagram
>>
Without USB Adapter
Without USB Adapter

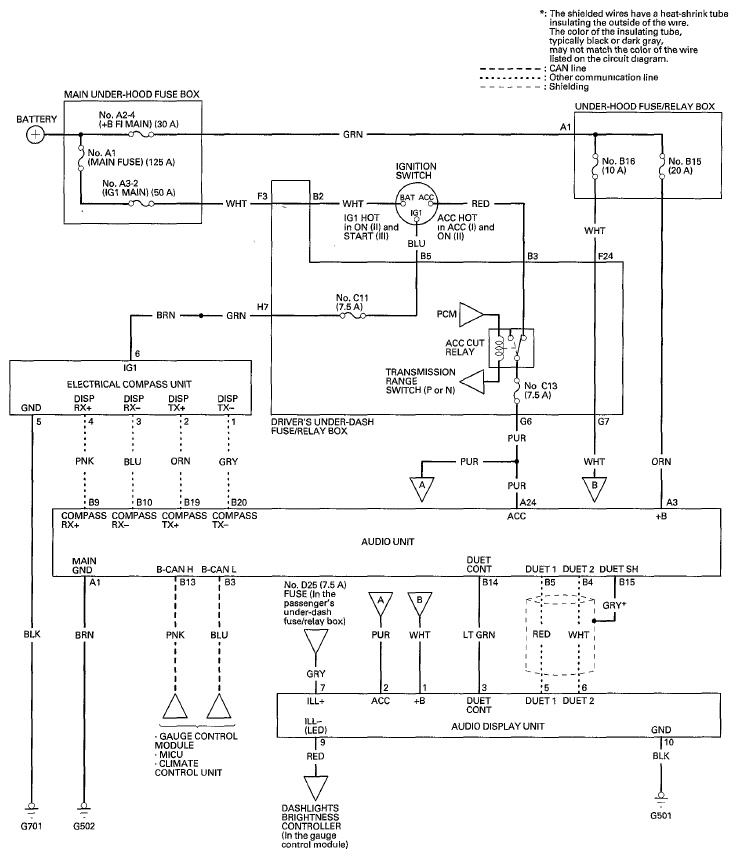

Fig 1: Identifying Electrical Compass Circuit Diagram - Without USB Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
