Electrical Compass
>>
Circuit Diagram
>>
With USB Adapter
With USB Adapter

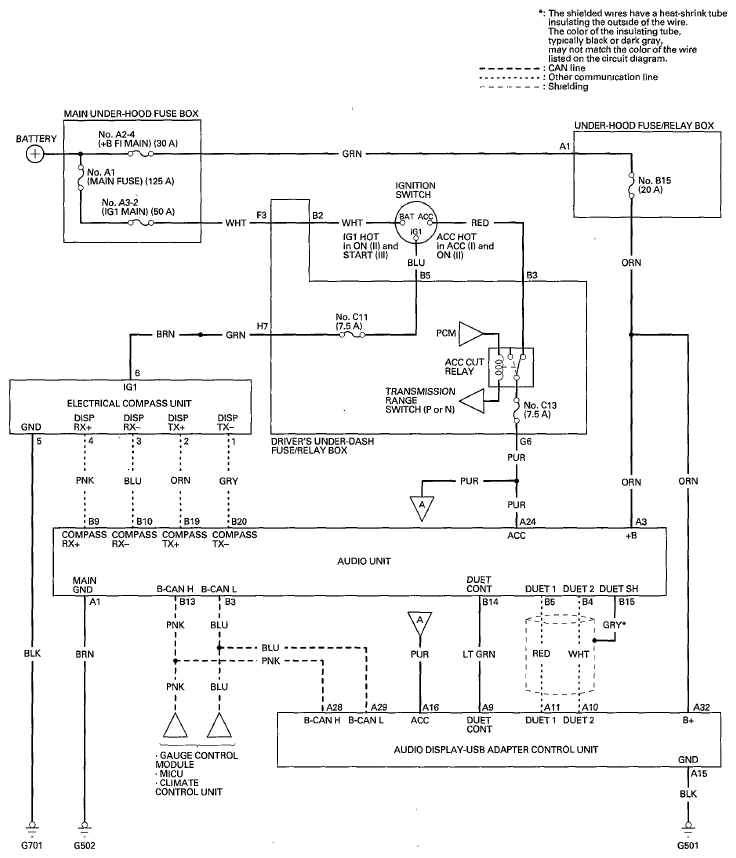

Fig 1: Identifying Electrical Compass Circuit Diagram - With USB Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
