A/T Housing Secondary Shaft ATF Feed Pipe Cap Removal

A/T Housing Secondary Shaft ATF Feed Pipe Cap Removal

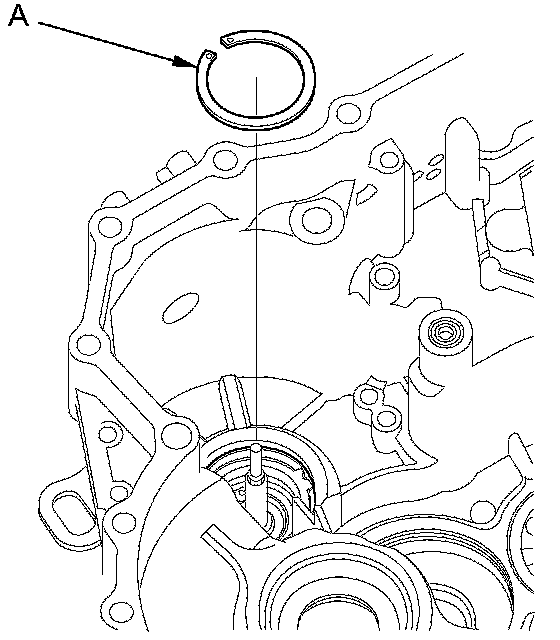

1. Remove the 65 mm thrust shim (A) from the transmission housing.






2. Cover the tip of the 1st-hold clutch ATF feed pipe with a shop rag.

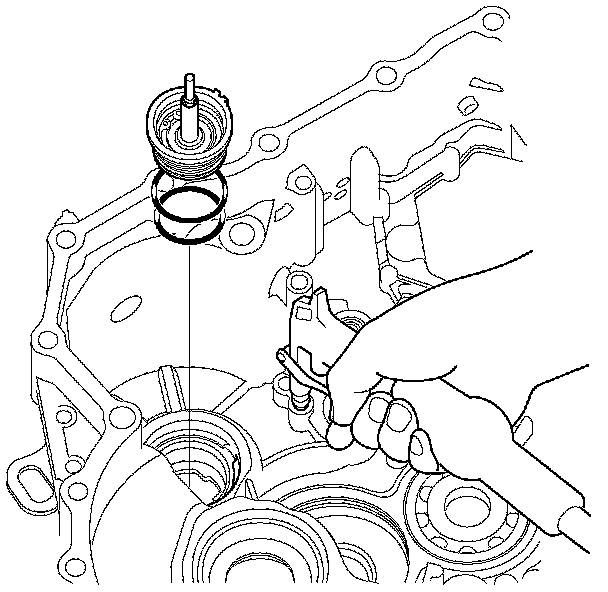

3. Apply air pressure to the ATF feed pipe hole of the 1st-hold clutch pressure circuit, and remove the ATF feed pipe cap from the transmission housing.
