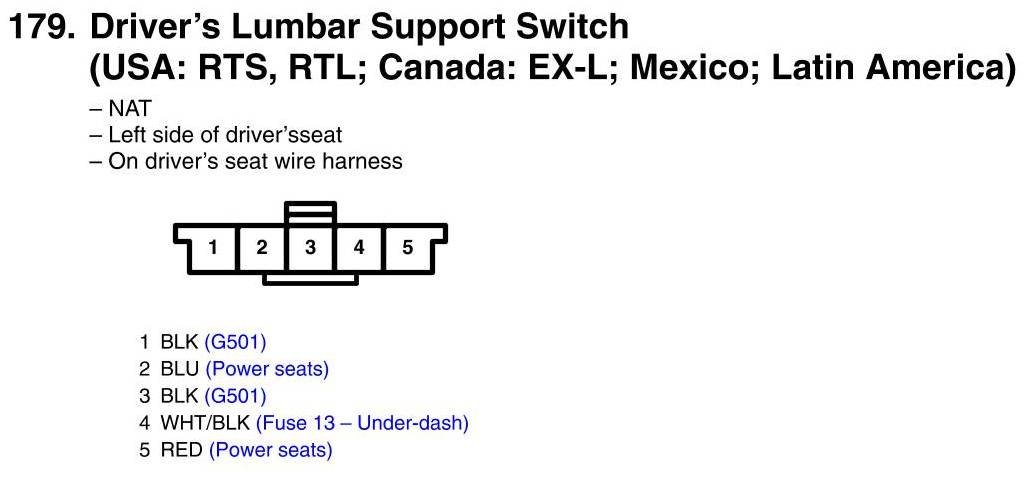

Driver's Lumbar Support Switch Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
Driver's Lumbar Support Switch Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
