Right Engine Compartment Wire Harness




Connector and Harness Locations

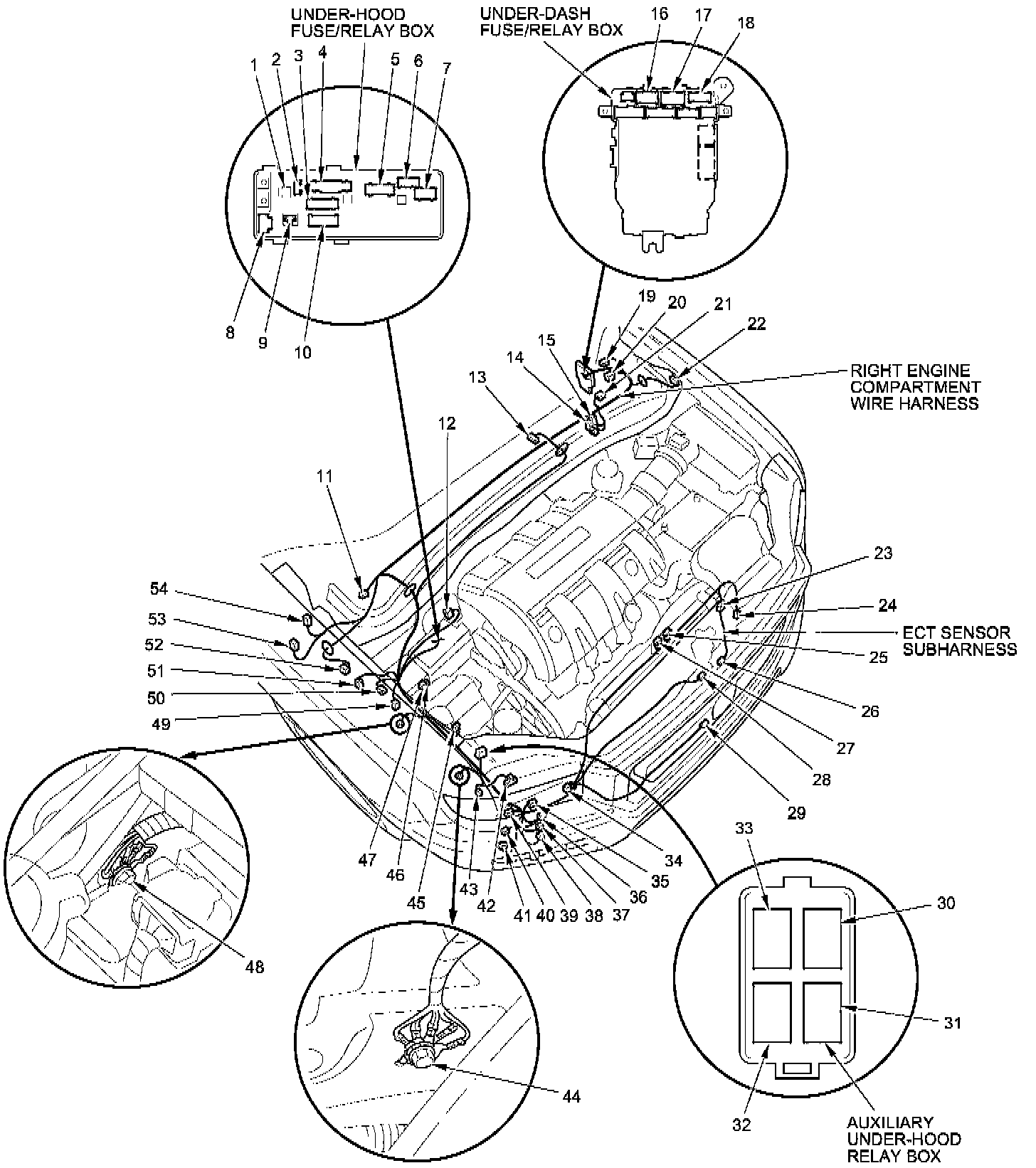

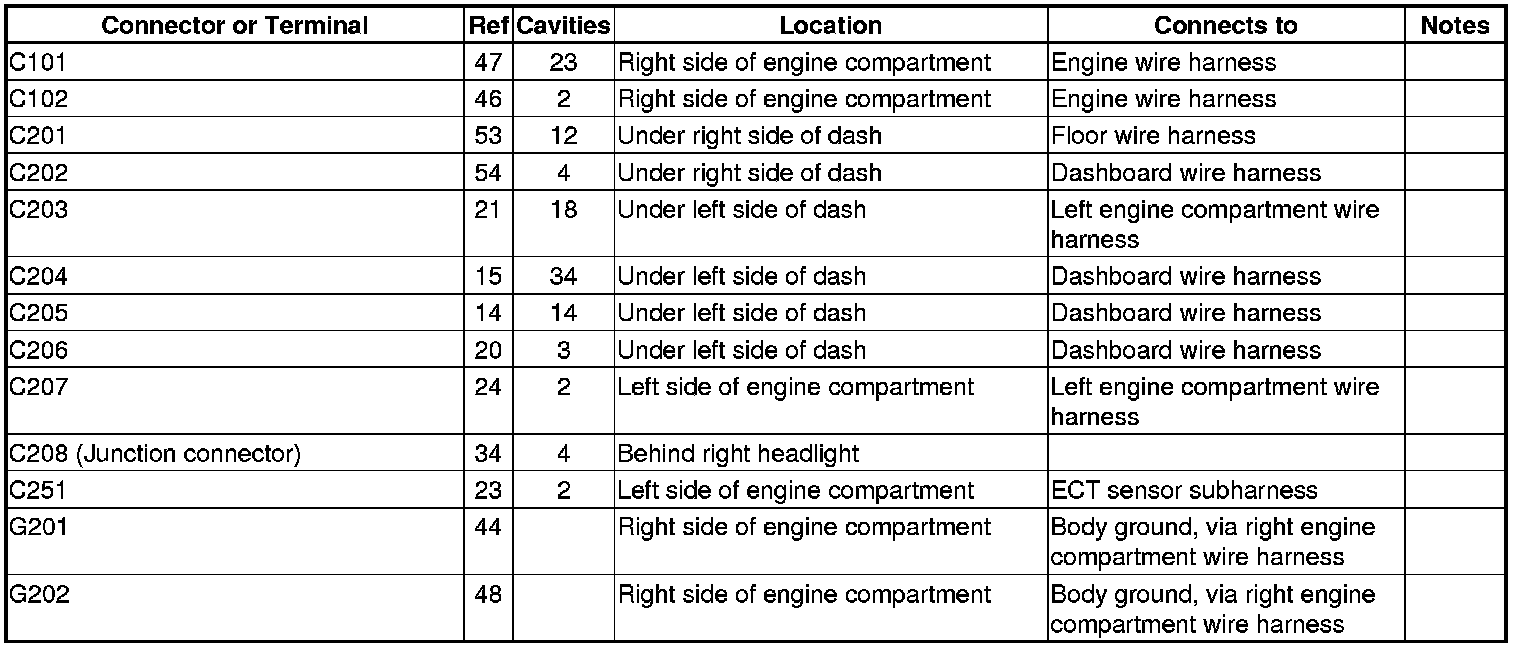

Right Engine Compartment Wire Harness

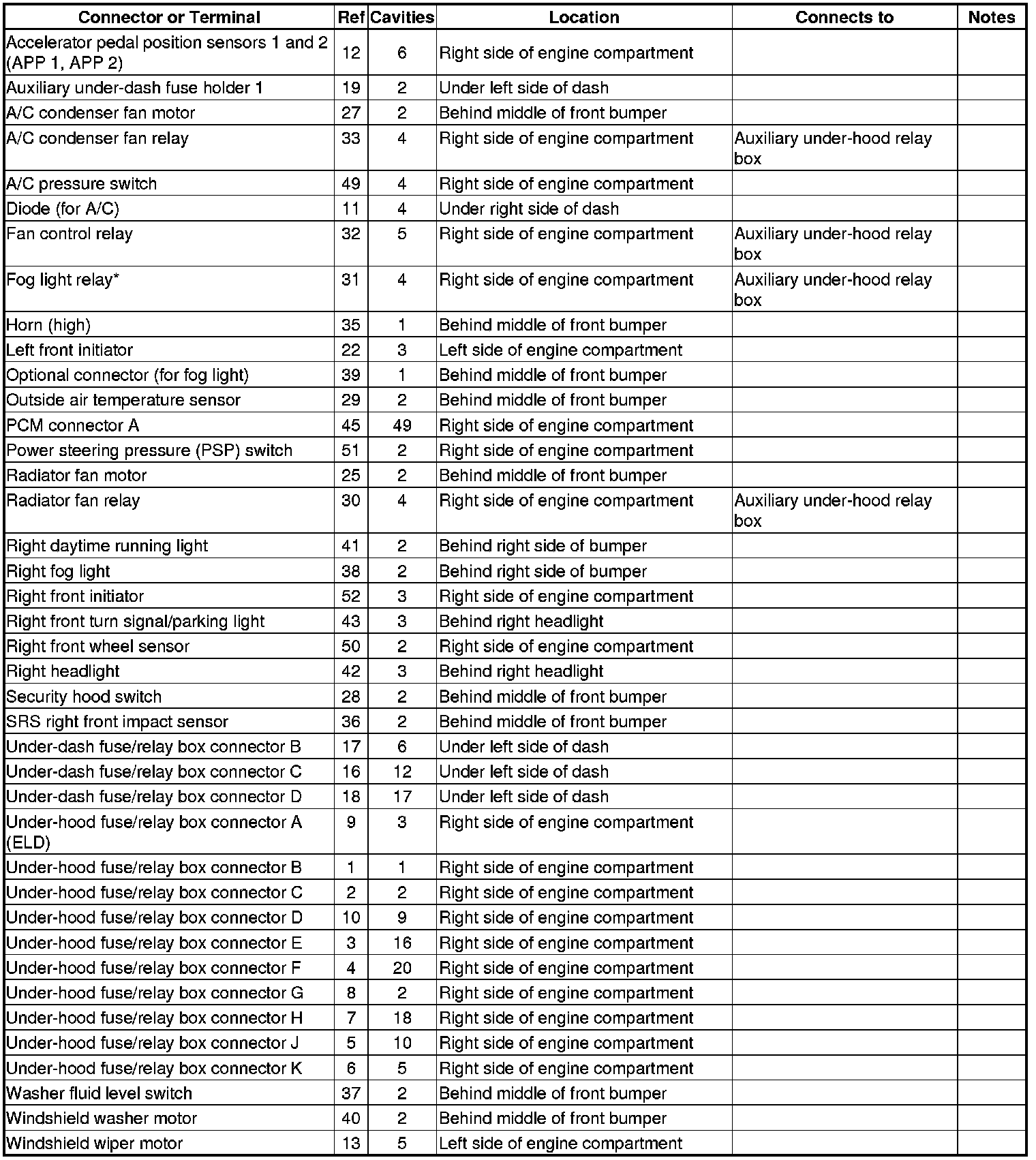

Right Engine Compartment Wire Harness (cont'd)
