Floor Wire Harness
Floor Wire Harness
Connector and Harness Locations

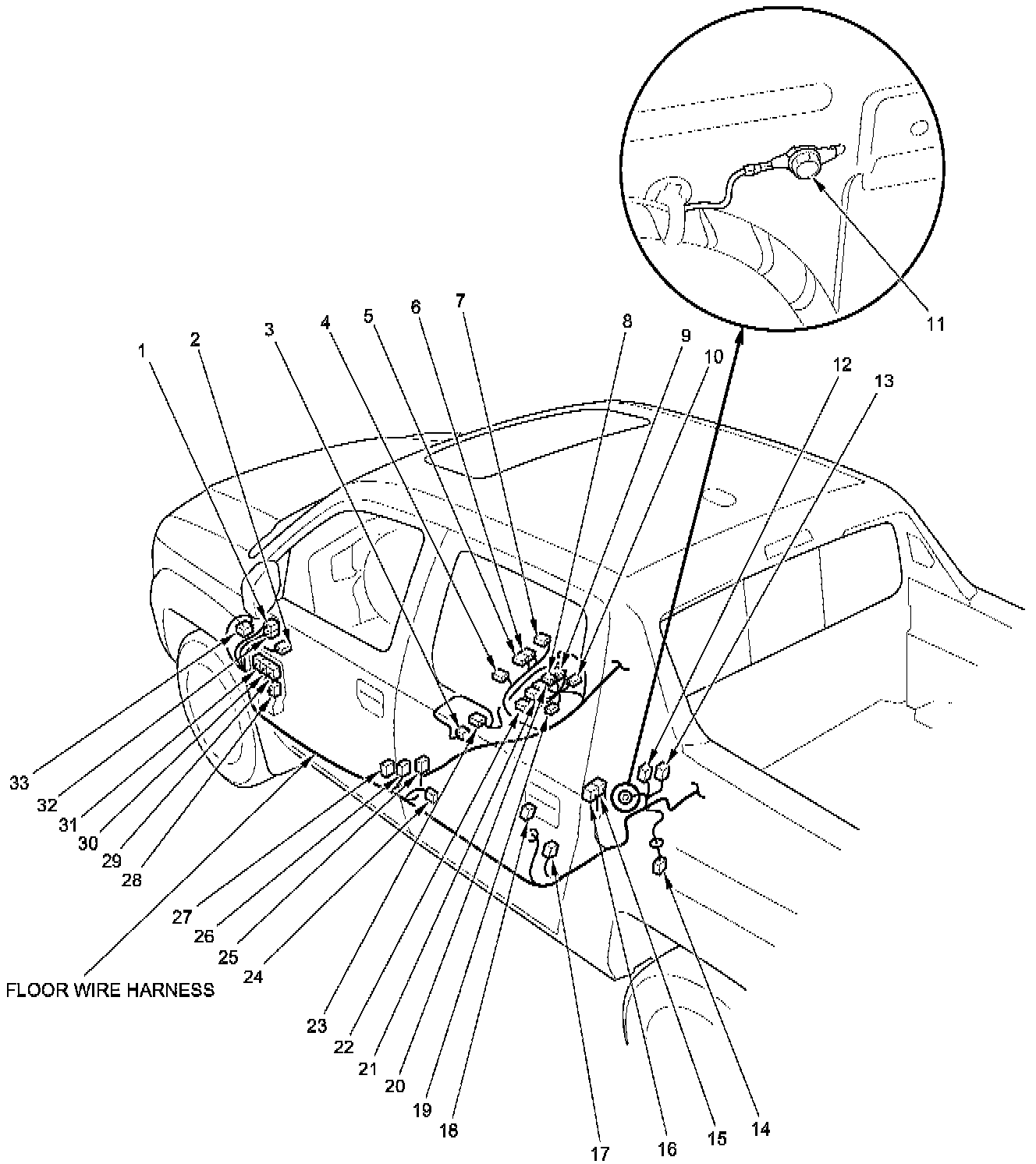

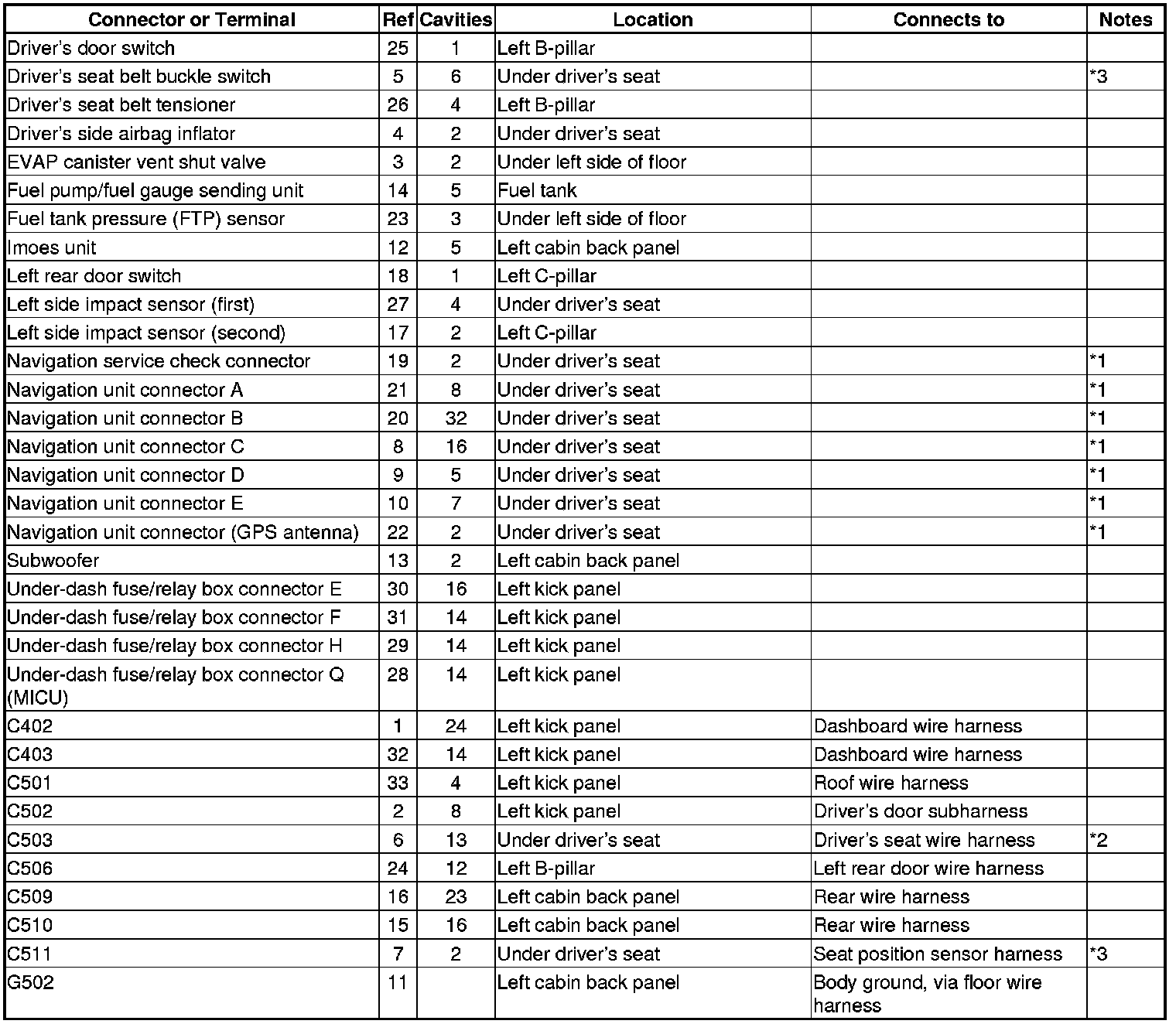

Floor Wire Harness (Left branch)

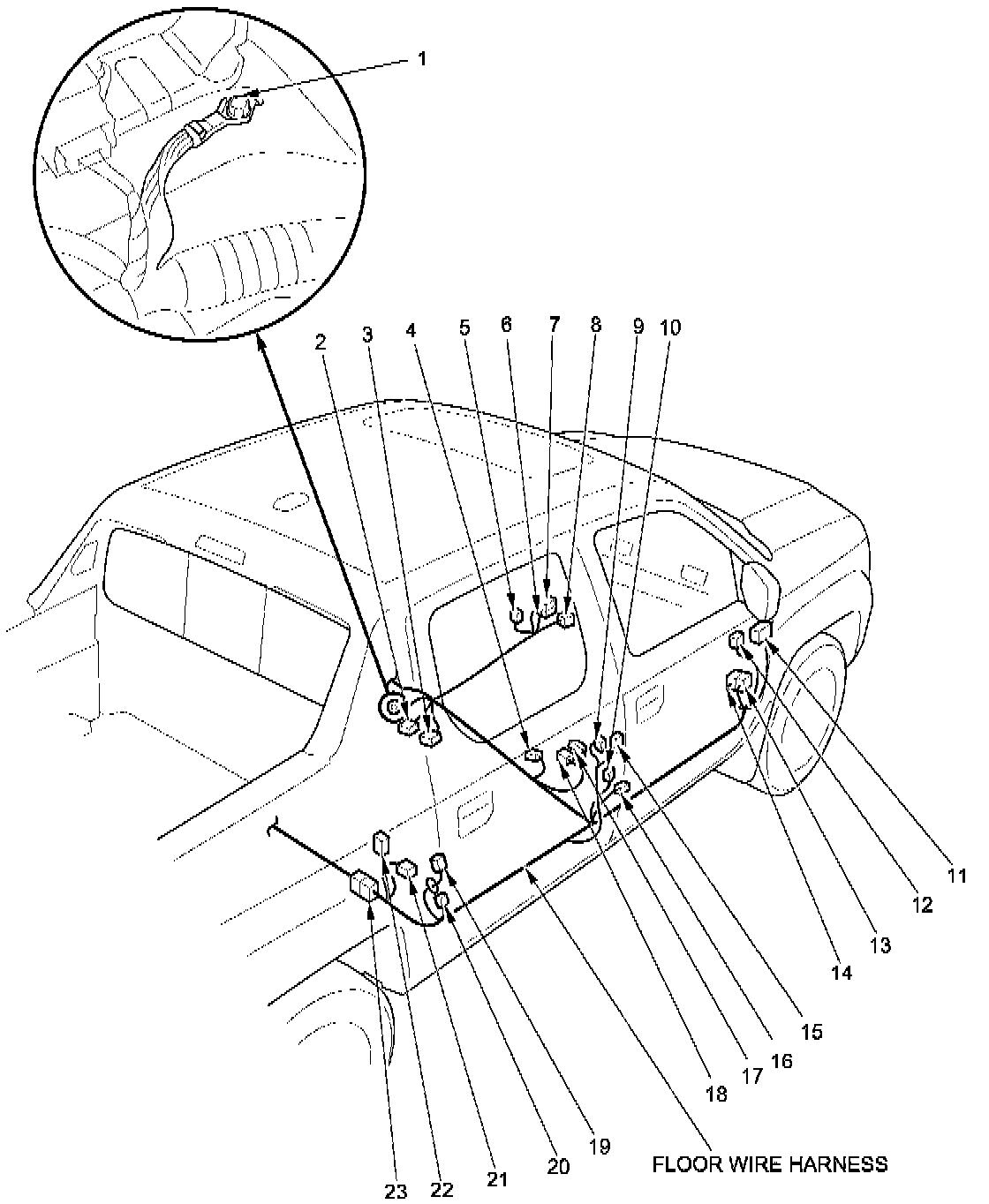

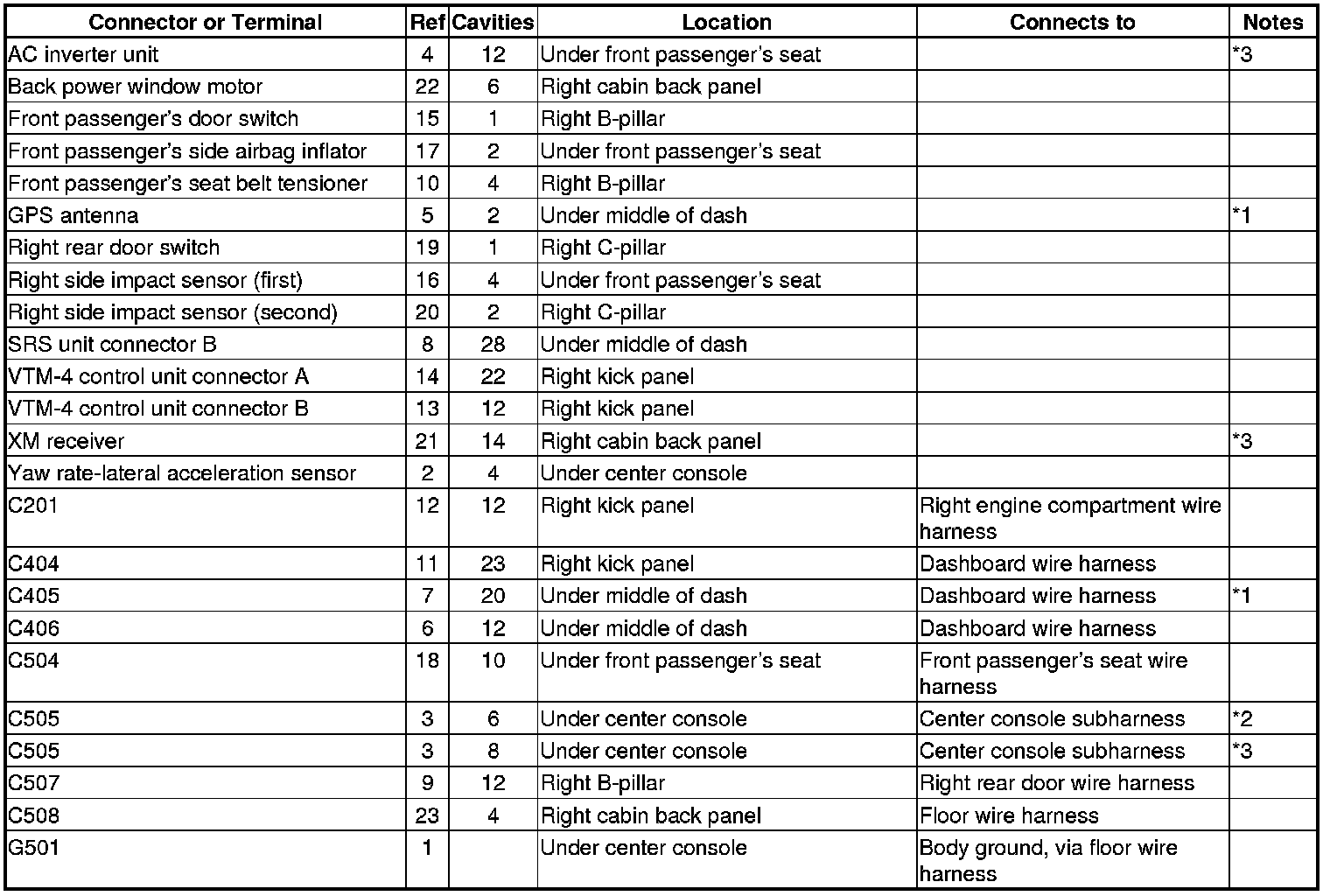

Floor Wire Harness (Right branch)
