Dashboard Wire Harness




Connector and Harness Locations

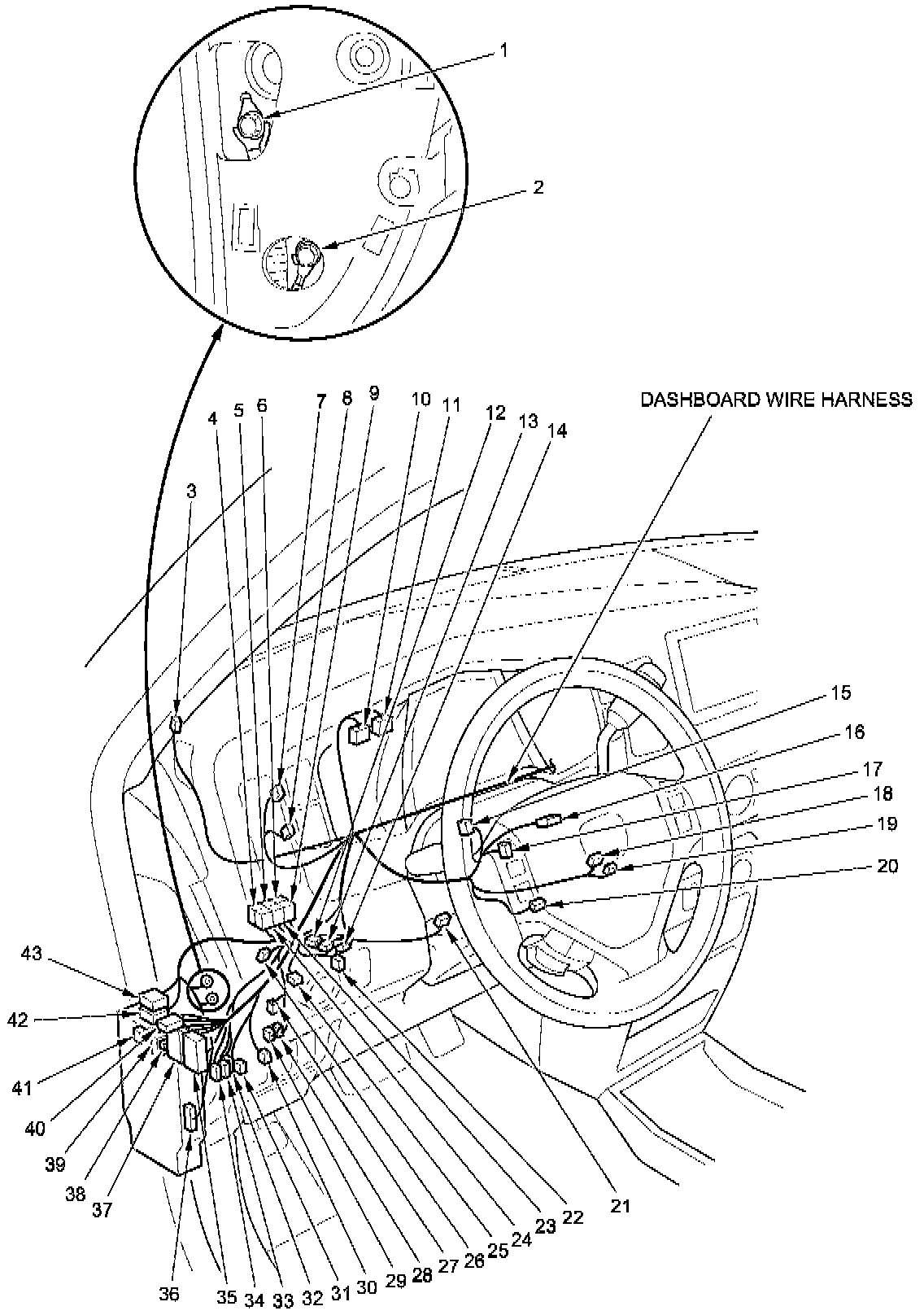

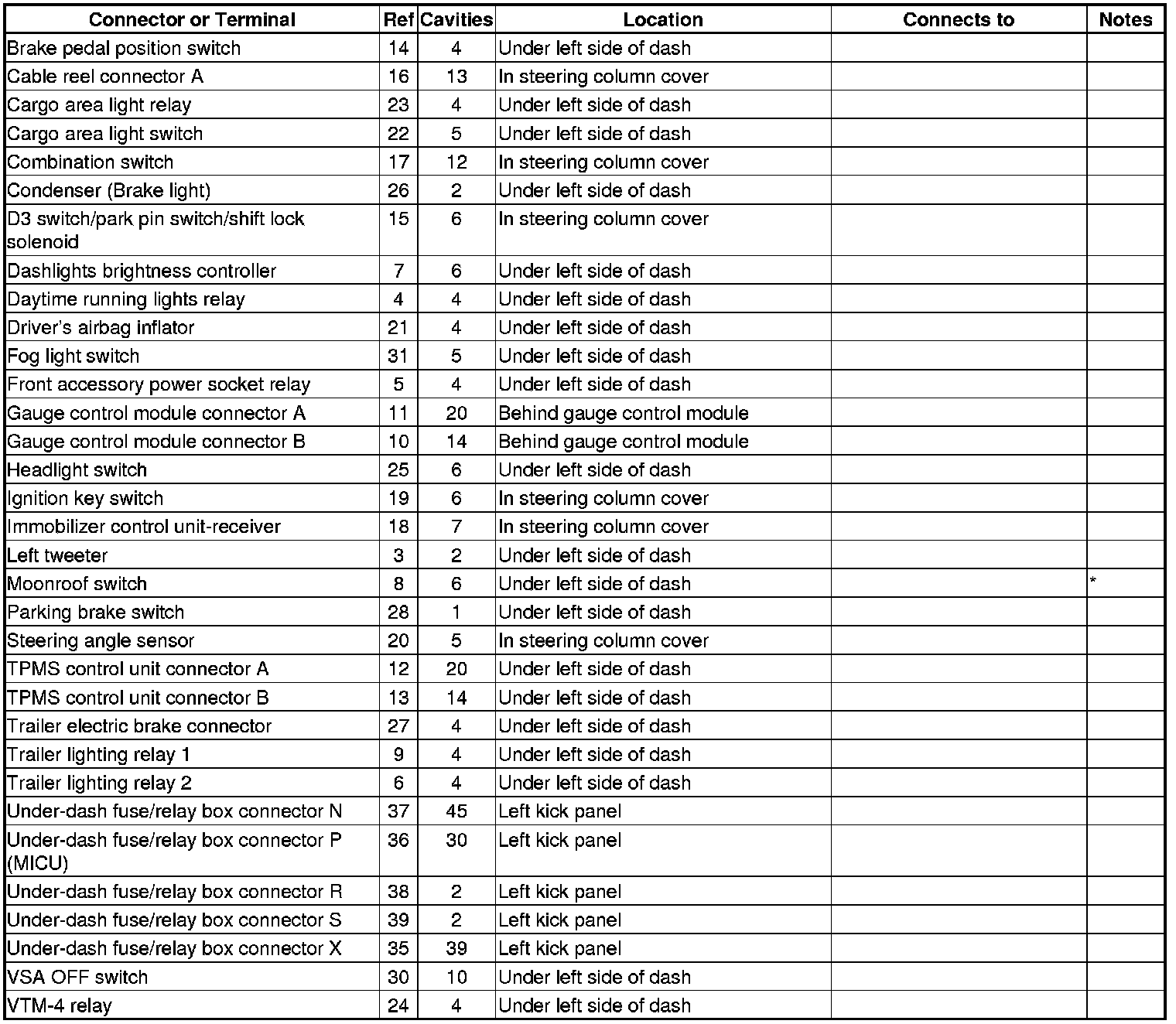

Dashboard Wire Harness (Left branch)














Dashboard Wire Harness (Left branch) (cont'd)

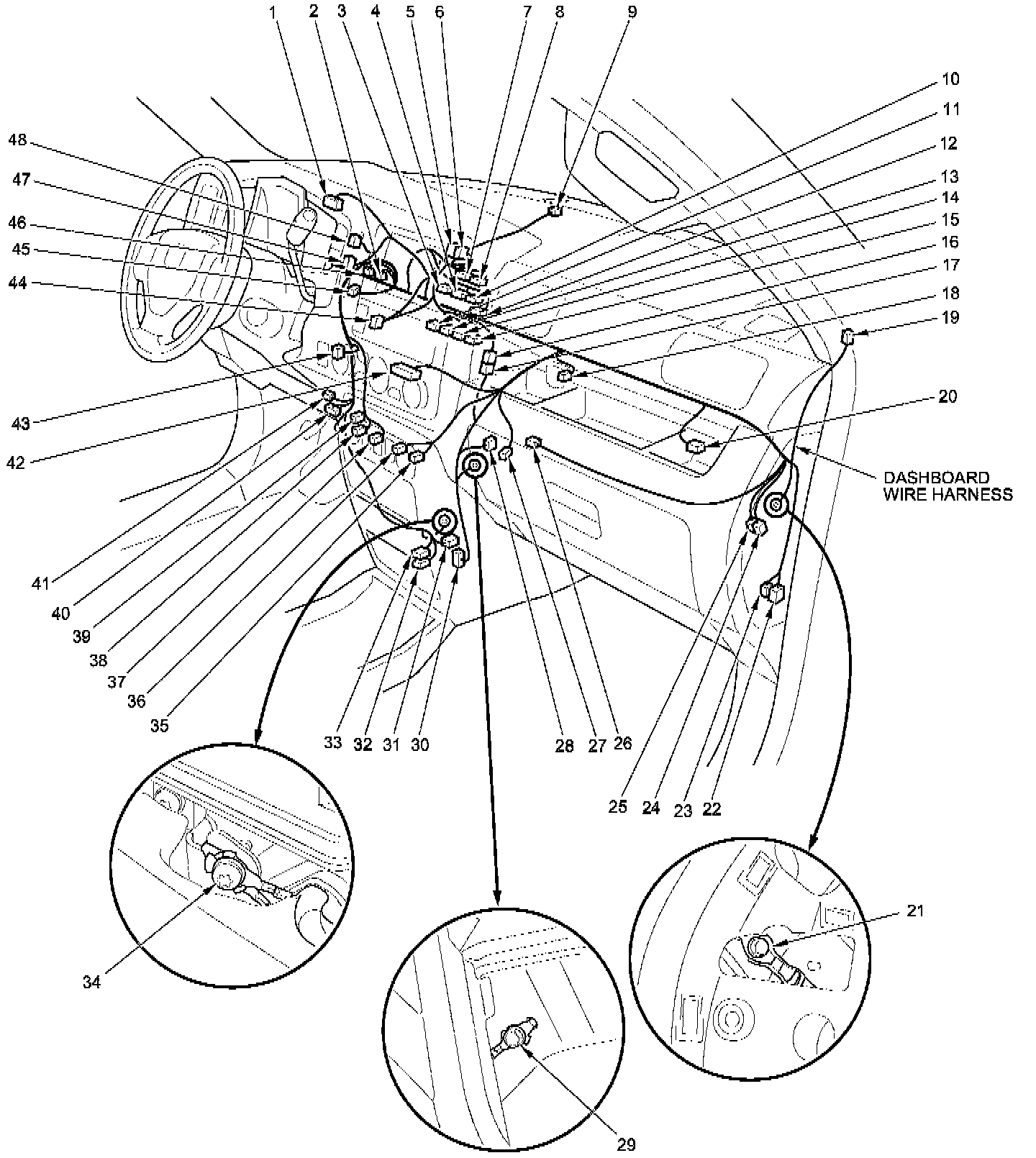

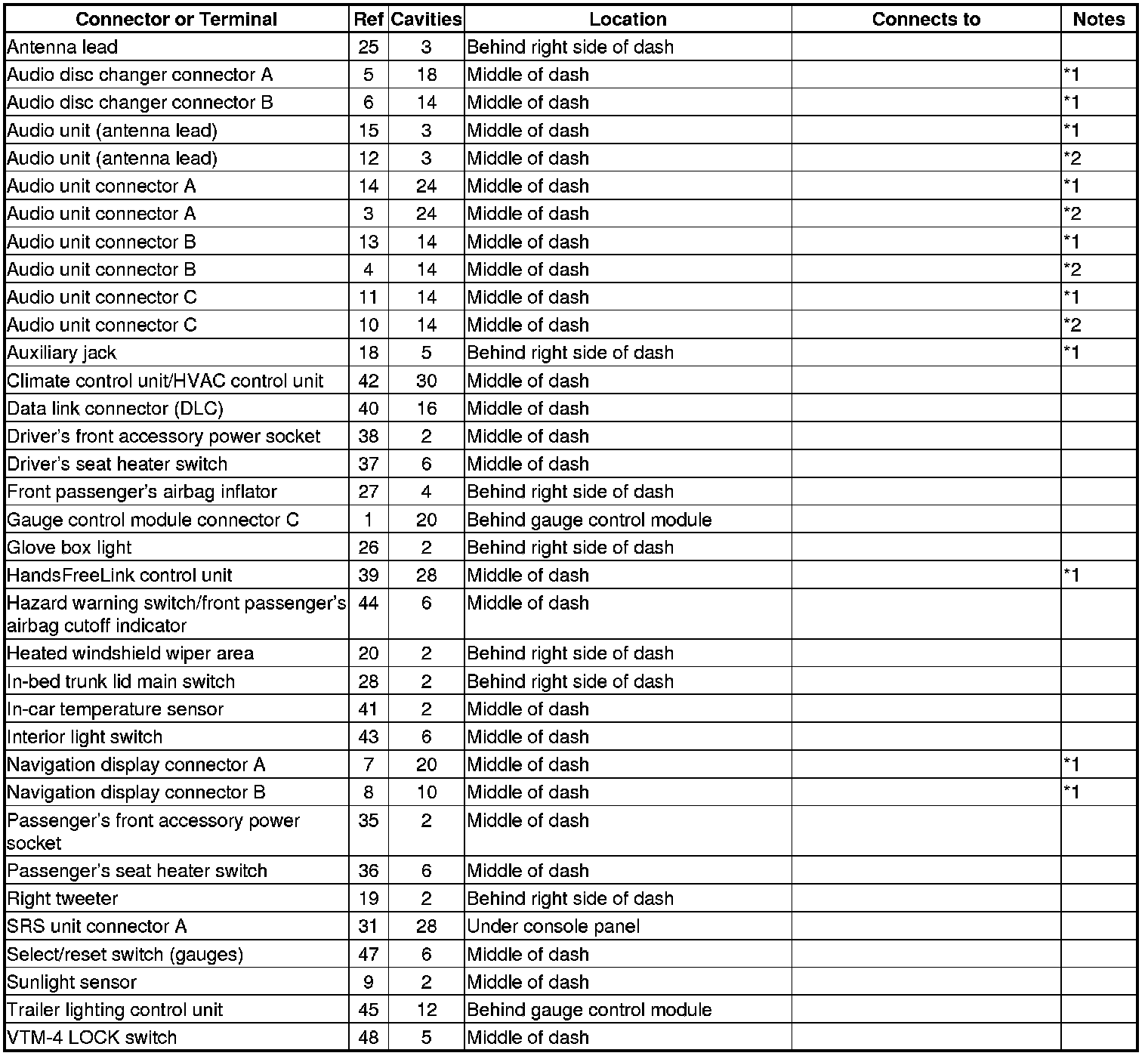

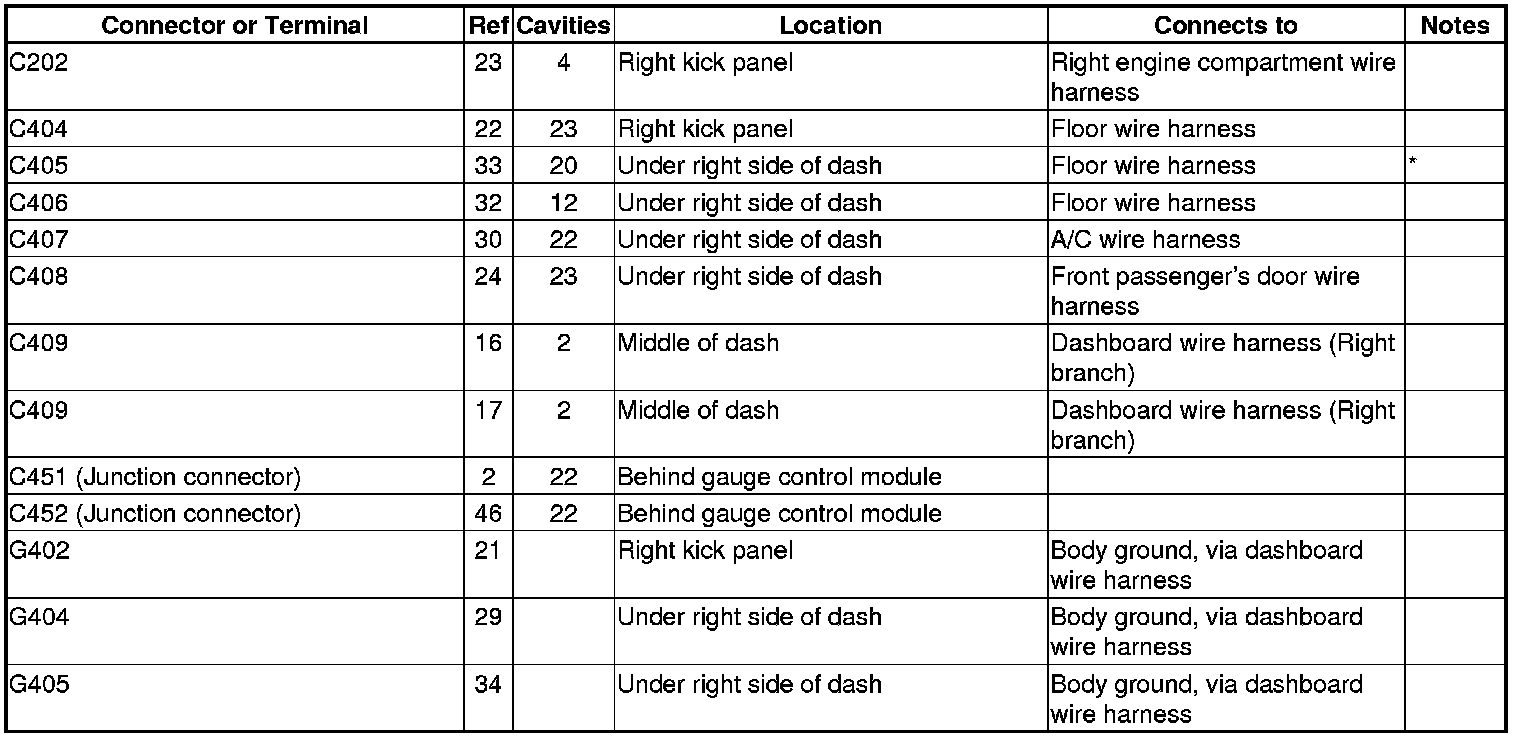

Dashboard Wire Harness (Right branch)














Dashboard Wire Harness (Right branch) (cont'd)
