Fog/Driving Lamp Switch
>>
Diagrams
>>

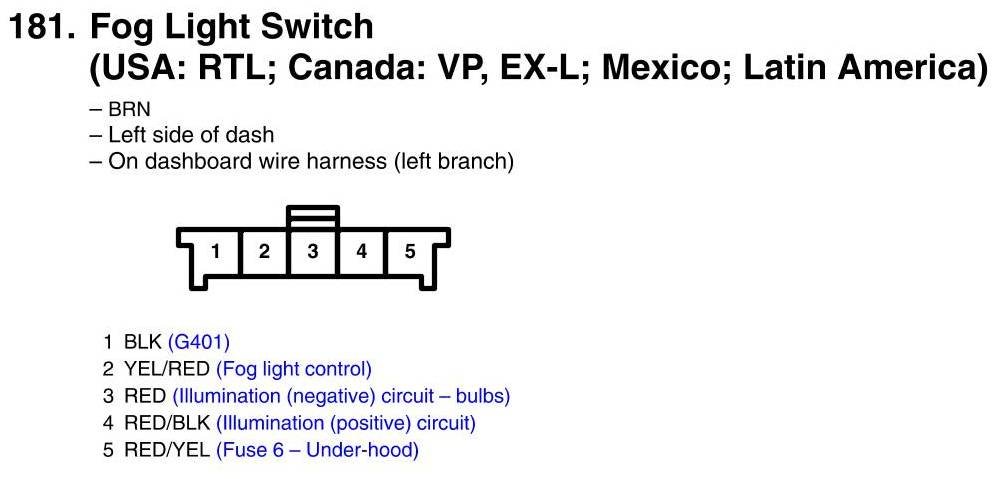

Fog Light Switch Connector View (USA: RTL; Canada: VP, EX-L; Mexico; Latin America)
Fog Light Switch Connector View (USA: RTL; Canada: VP, EX-L; Mexico; Latin America)
