Left Engine Compartment Wire Harness
Left Engine Compartment Wire Harness

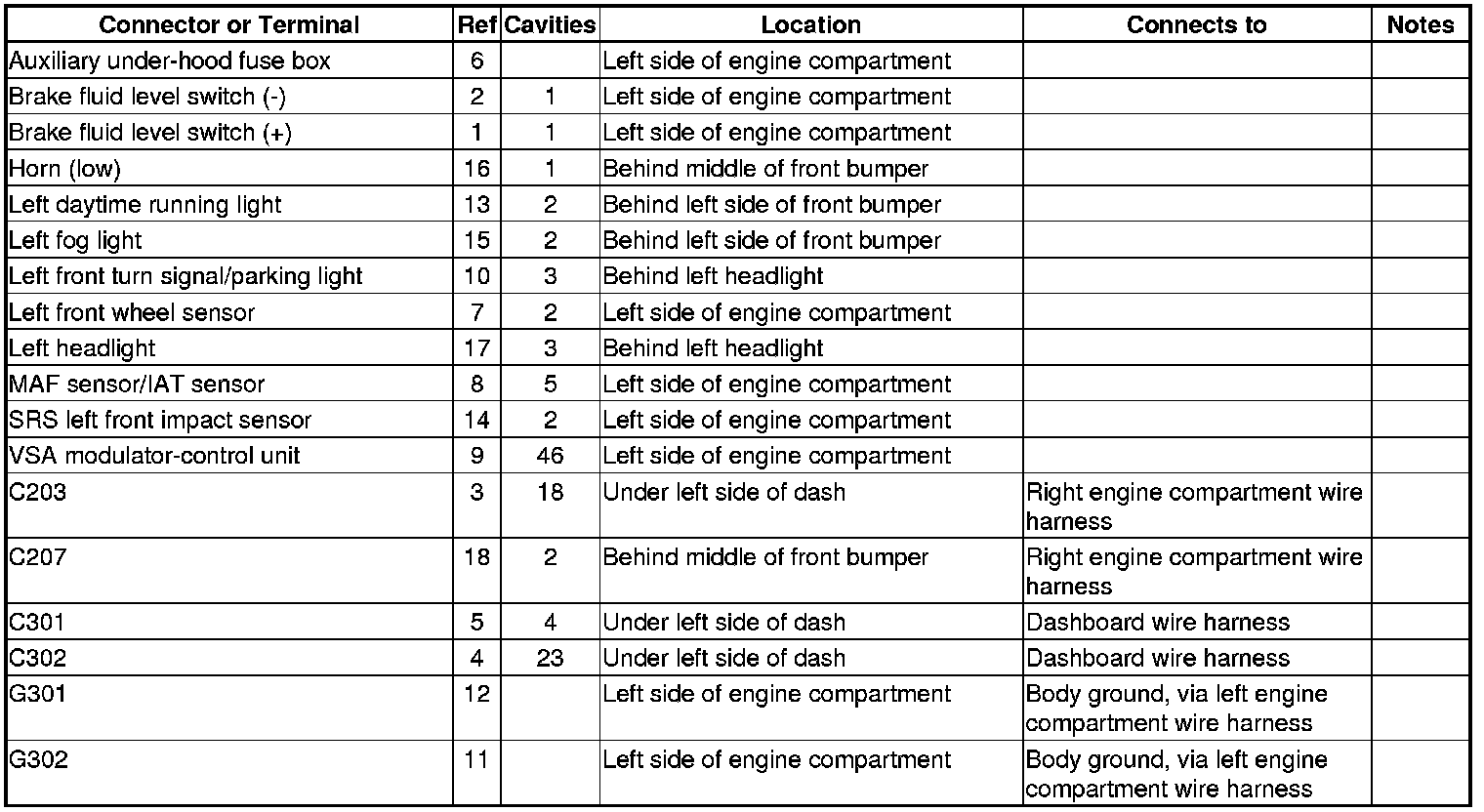

Connector and Harness Locations

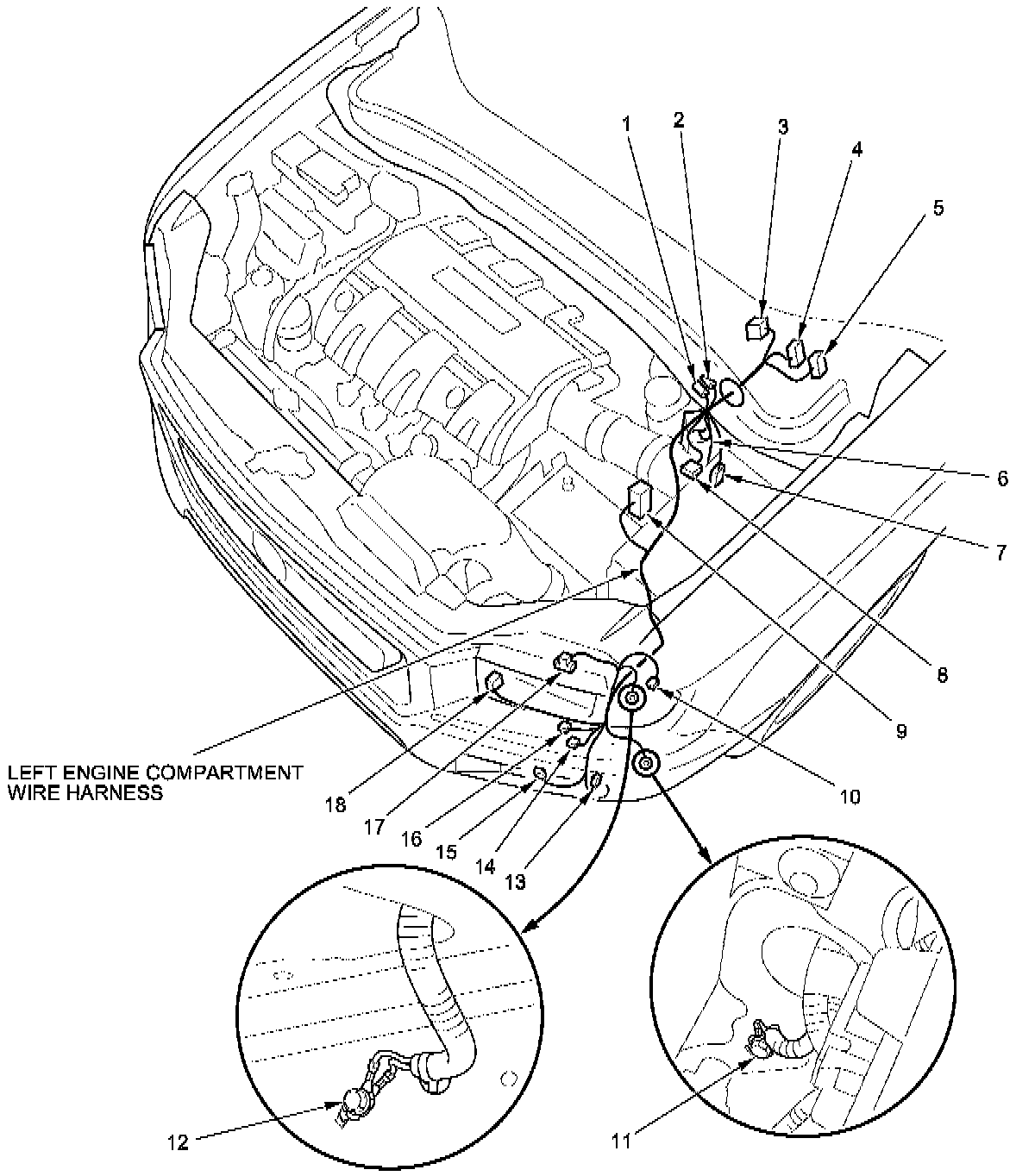

Left Engine Compartment Wire Harness
