Home
>>
Honda
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

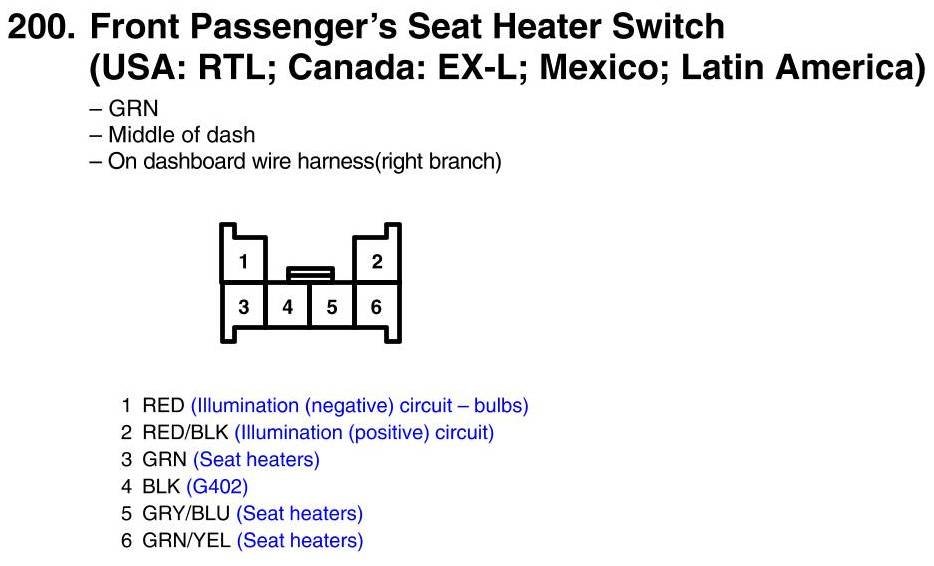

Front Passenger's Seat Heater Switch Connector View (USA: RTL; Canada: EX-L; Mexico; Latin America)
Front Passenger's Seat Heater Switch Connector View (USA: RTL; Canada: EX-L; Mexico; Latin America)
