Power Door Lock Switch
>>

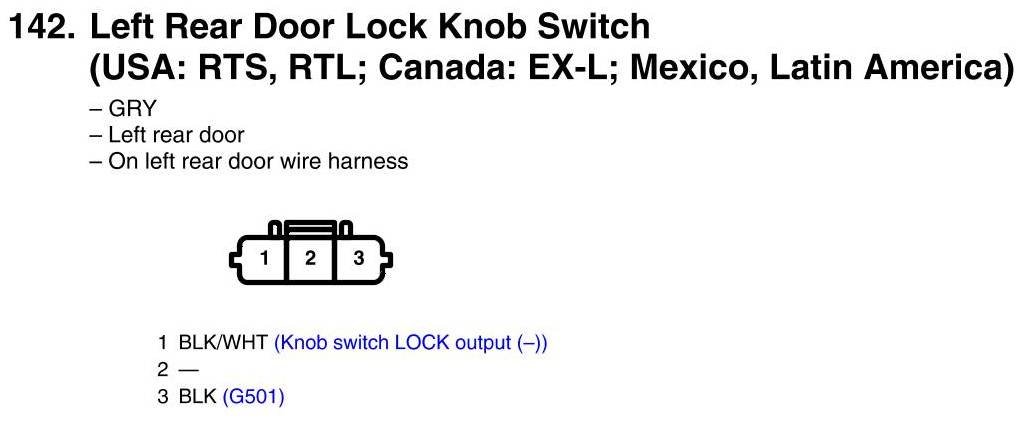

Left Rear Door Lock Knob Switch Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
Left Rear Door Lock Knob Switch Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
