Home >> Honda >> 2010 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

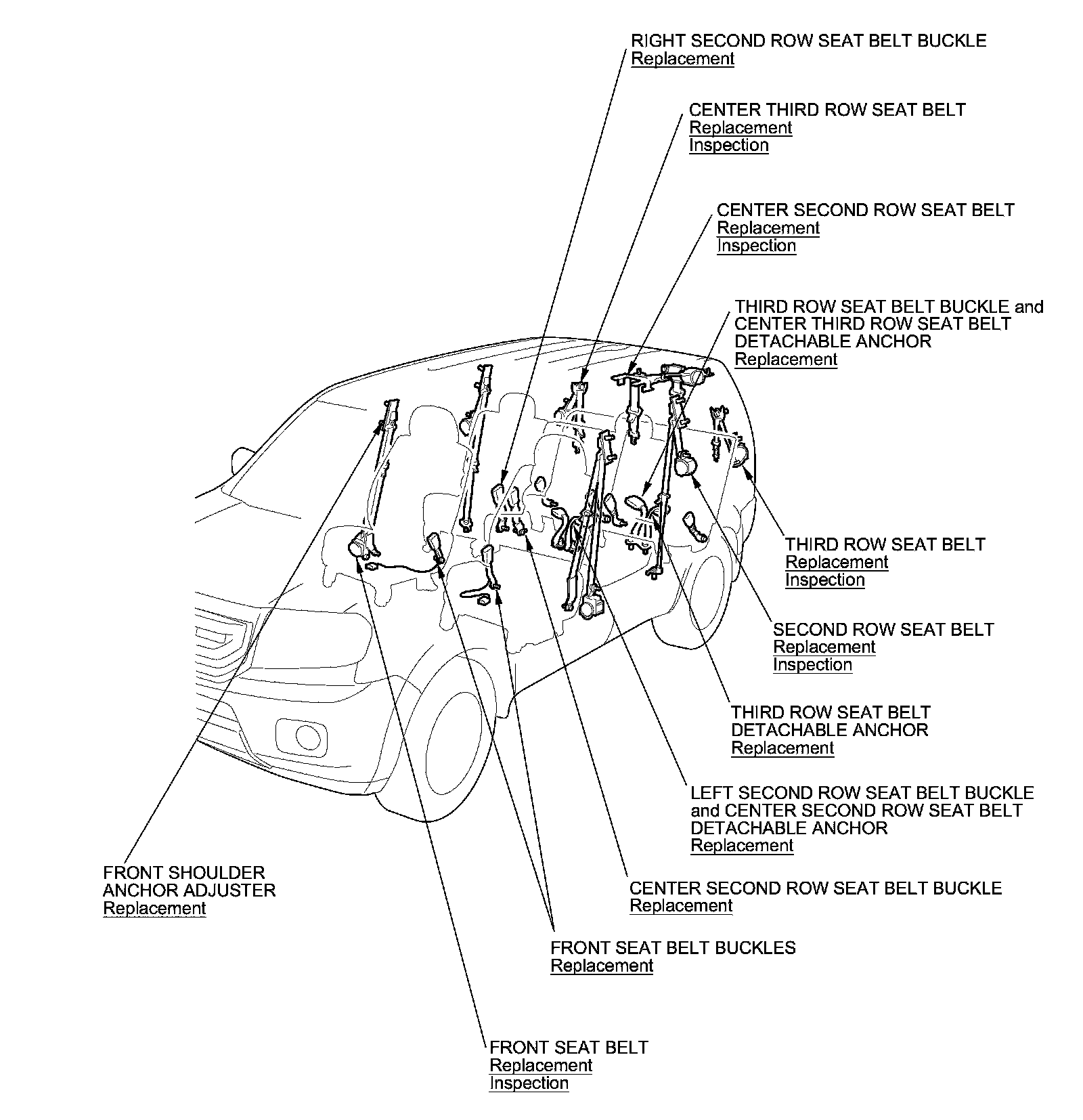

Seat Belts Component Location Index
