Resonator: Service and Repair

Intake Air Resonator Removal/Installation

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner Service and Repair.

3. Remove the front bumper Service and Repair.

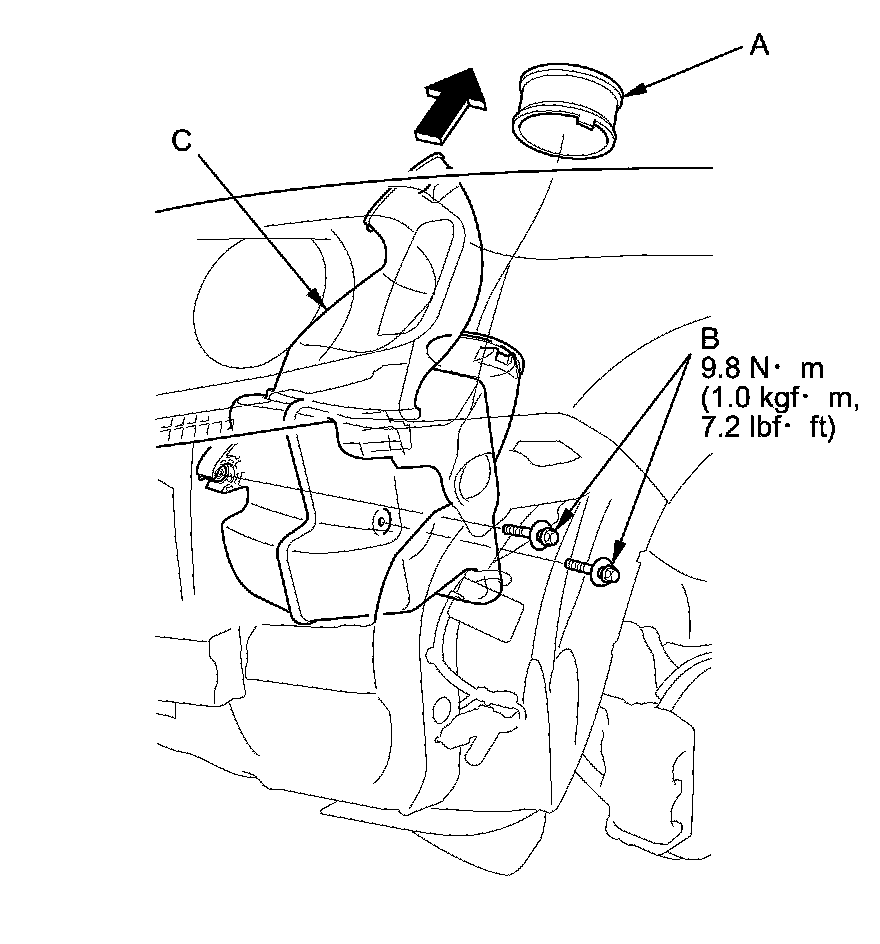

4. Remove the seal (A).





5. Remove the bolts (B), then remove the intake air resonator (C) from the engine compartment.

6. Install the parts in the reverse order of removal.

7. Do the battery installation procedure Removal and Replacement.
