Home >> Honda >> 2010 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Locations >> Harness Locations >> Tailgate Sub-Harness and License Plate Lights Sub-Harness Connector and Harness Locations

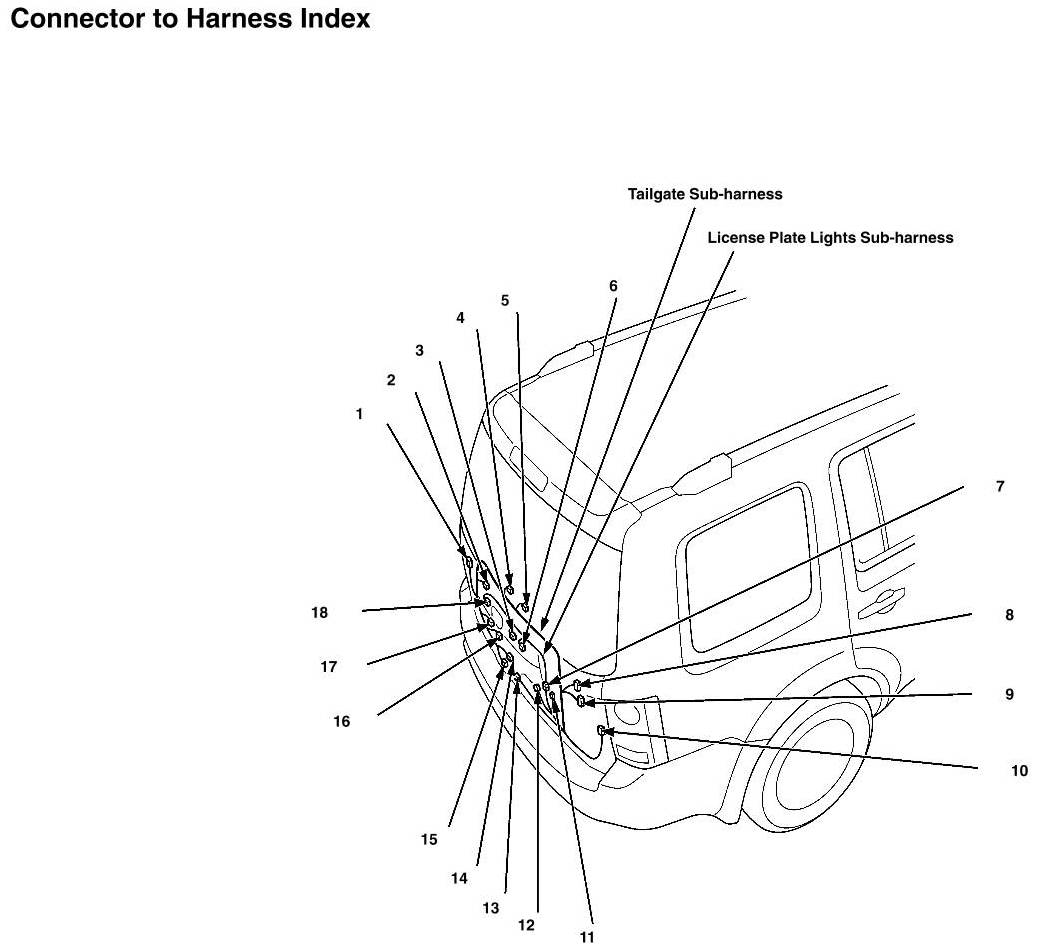

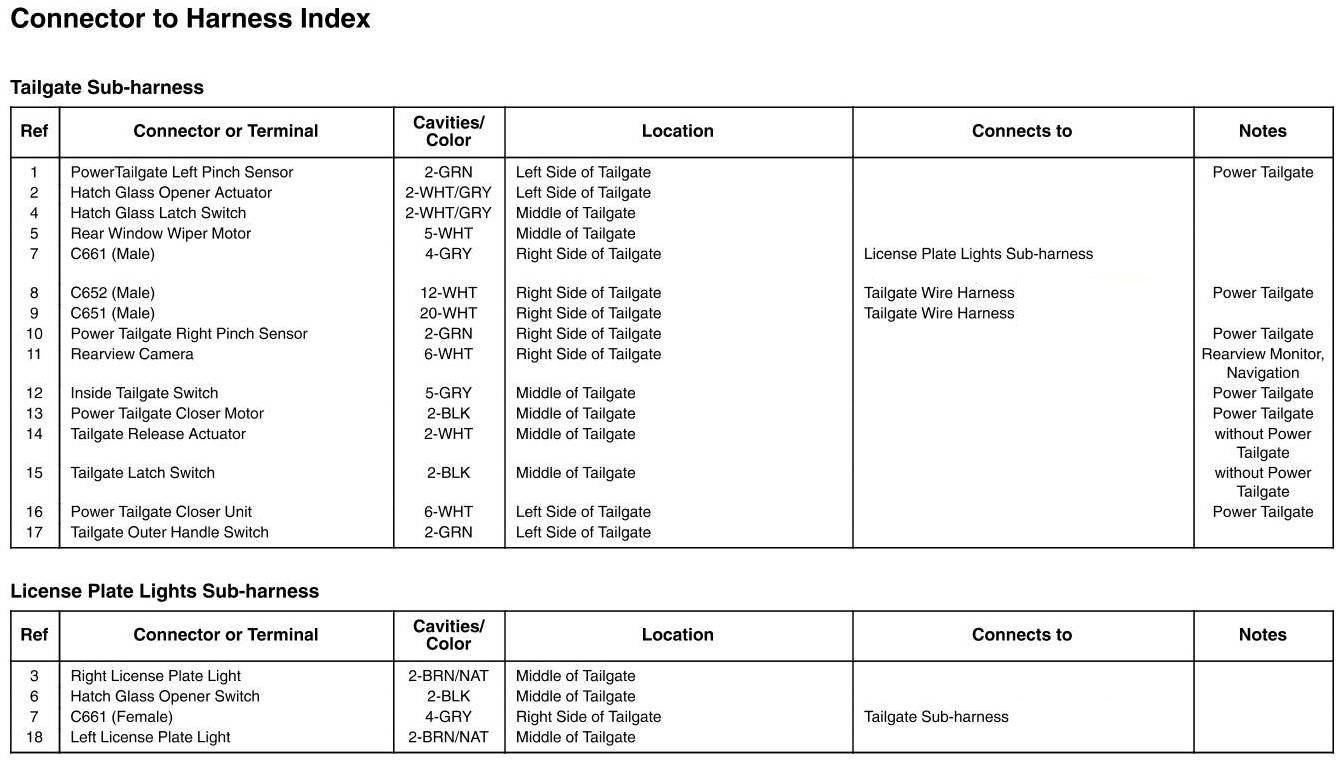

Tailgate Sub-Harness and License Plate Lights Sub-Harness Connector and Harness Locations
