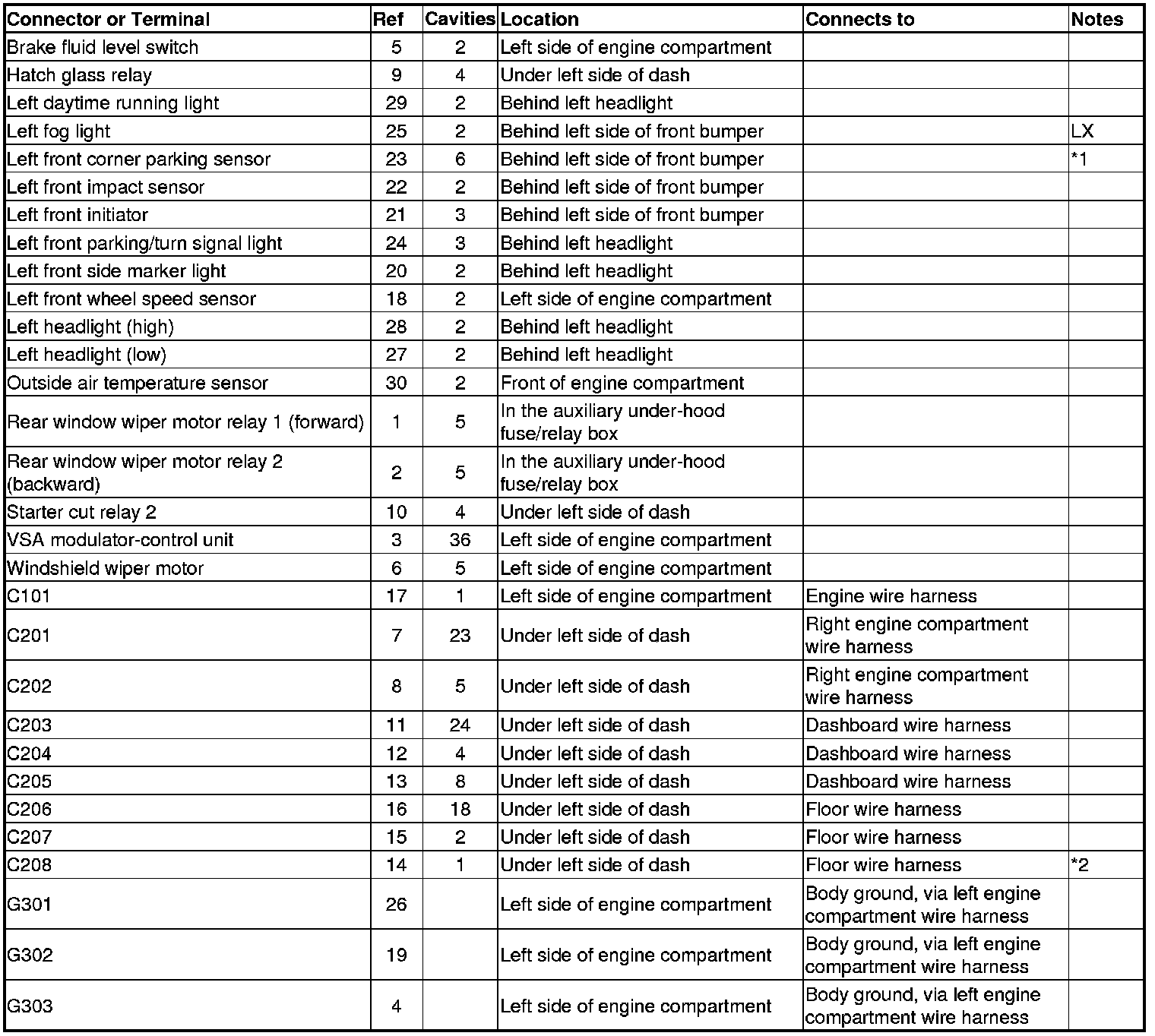

Left Engine Compartment Wire Harness

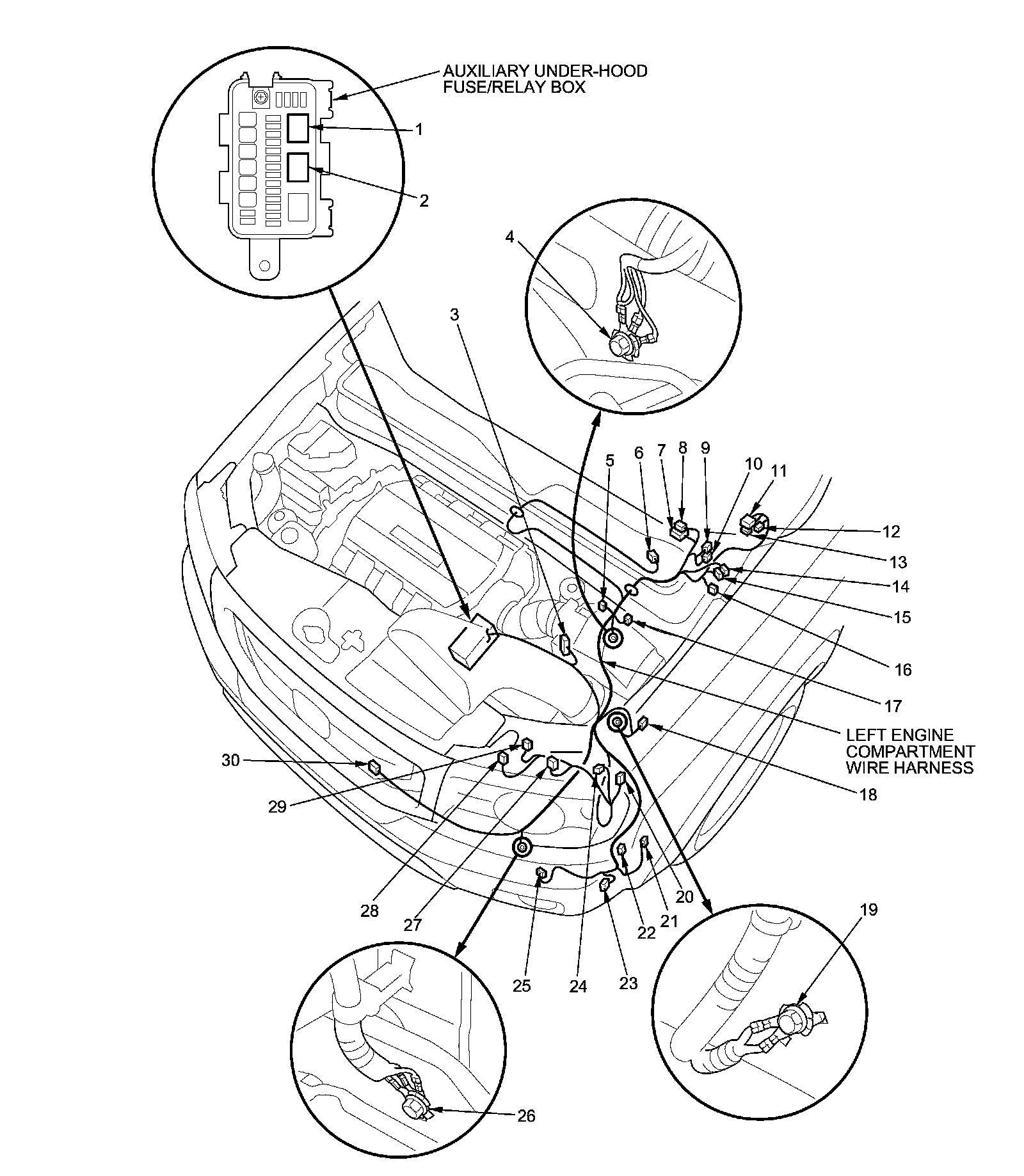

Connector and Harness Locations
Left Engine Compartment Wire Harness
Dashboard Wire Harness (View of driver's side)
Dashboard Wire Harness (View of driver's side) (cont'd)
Dashboard Wire Harness (View of middle side)
Dashboard Wire Harness (View of middle side) (cont'd)
Dashboard Wire Harness (View of passenger's side)

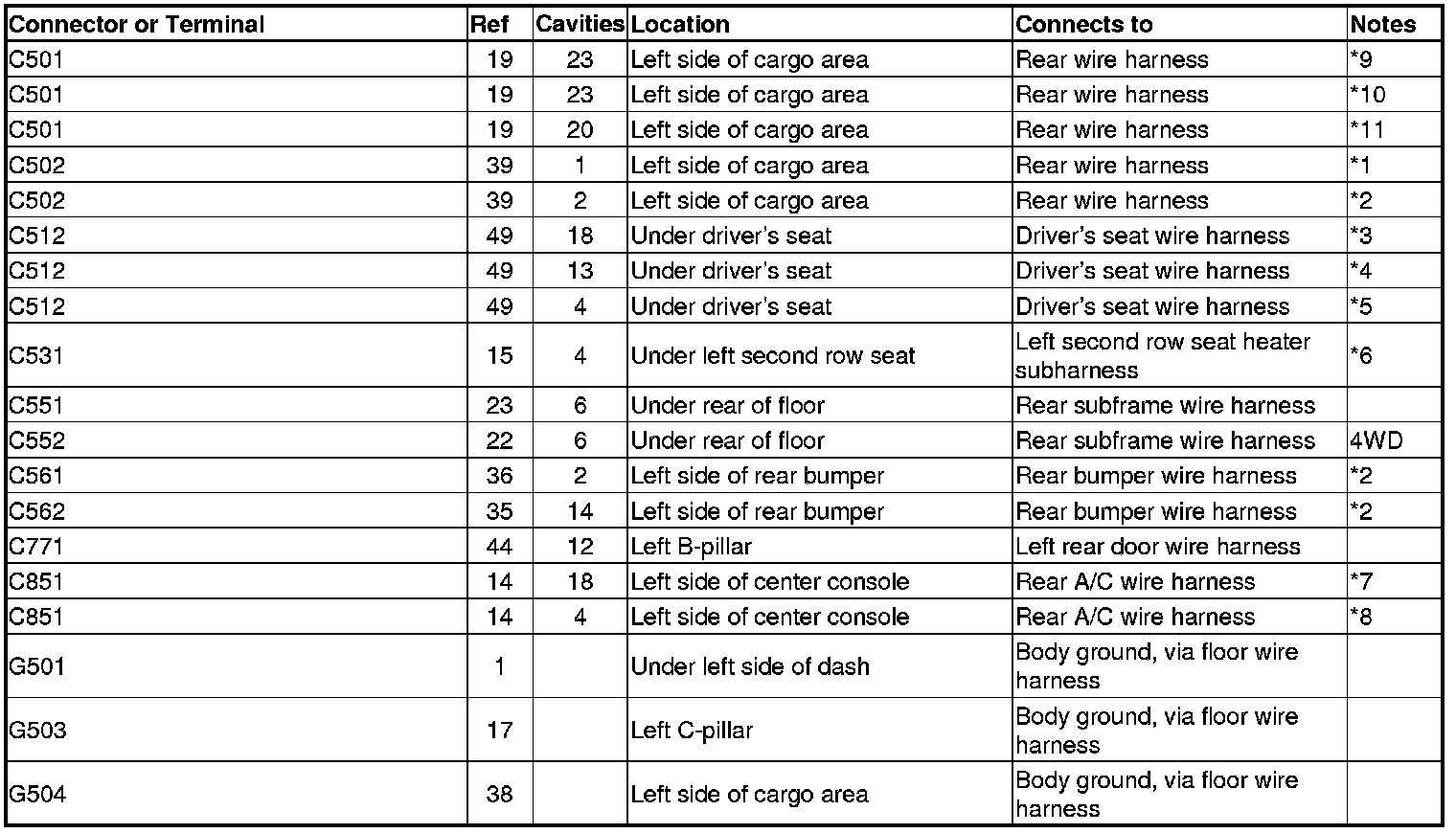

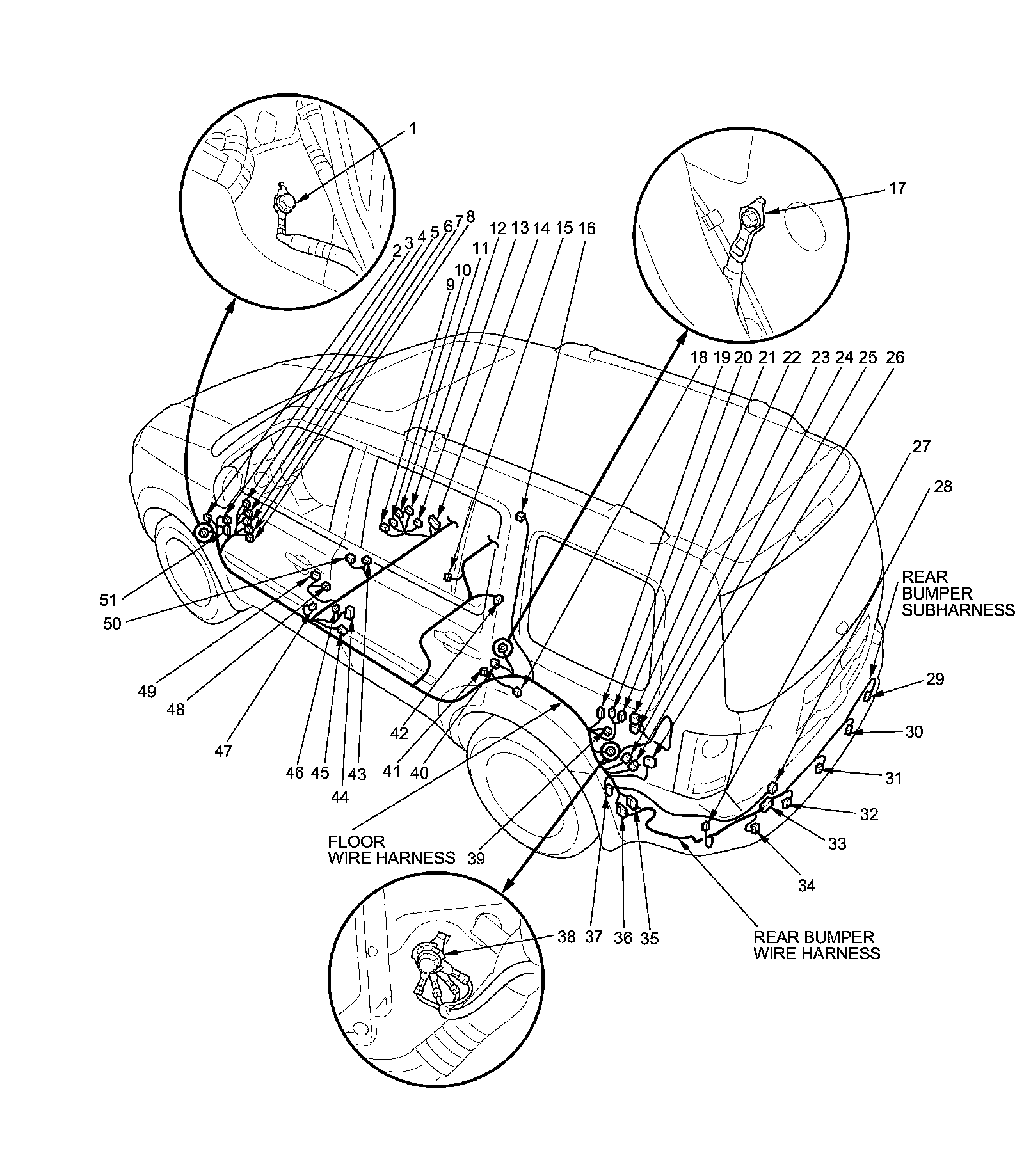

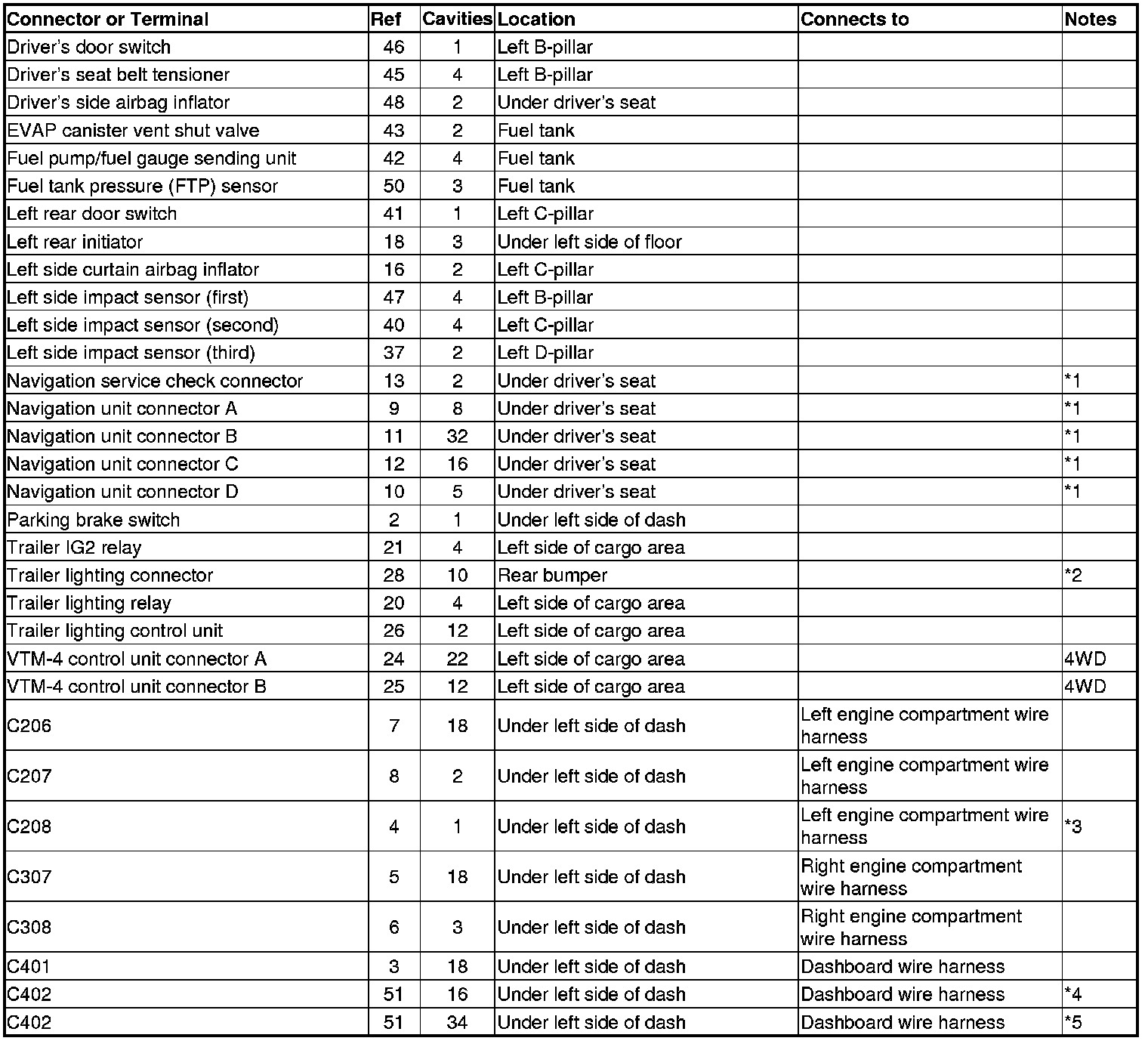

Floor Wire Harness (Left branch)
Floor wire harness (Left branch) (cont'd)
Rear Bumper Wire Harness (With power tailgate)
Rear Bumper Subharness (With parking and back-up sensor system)

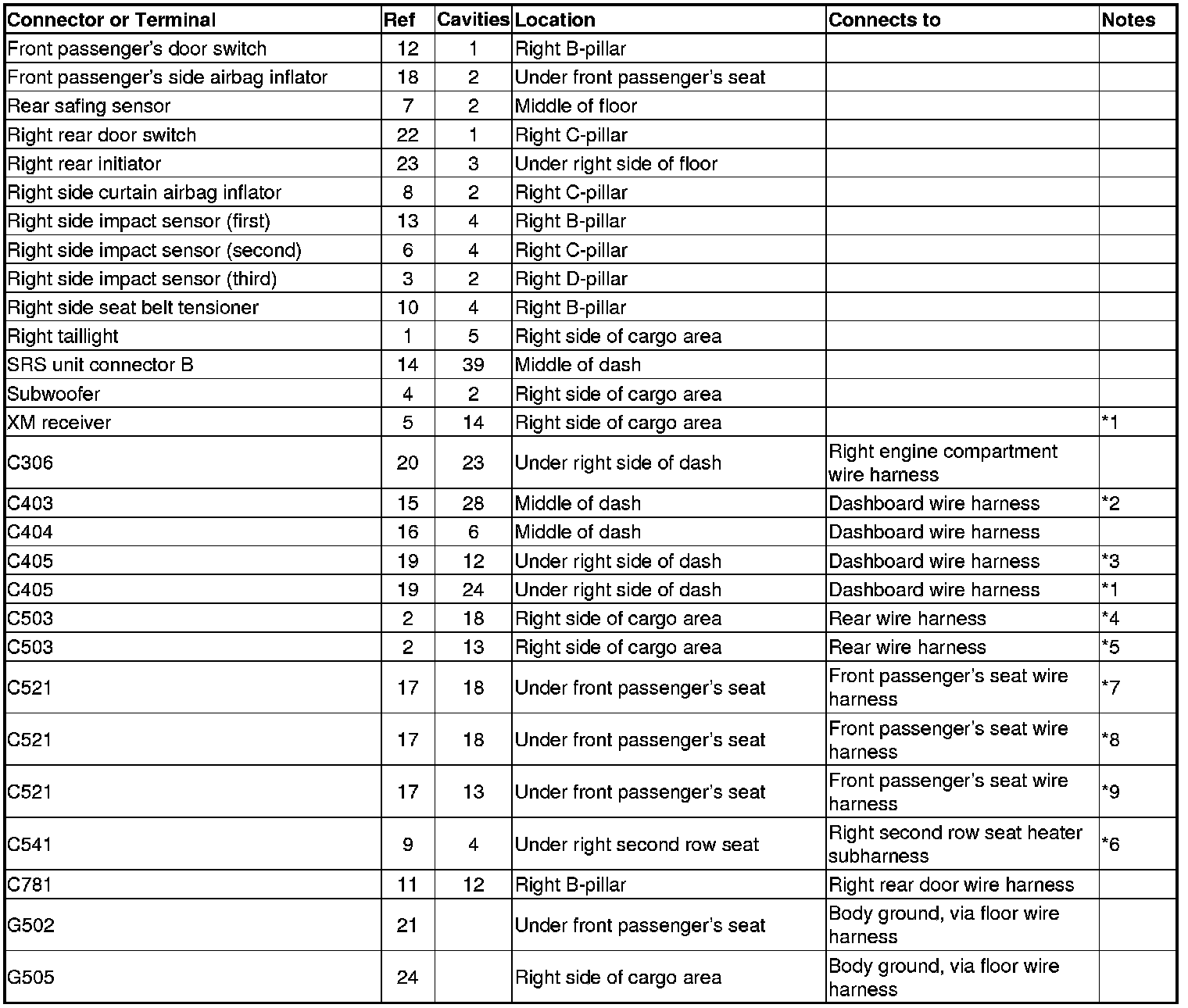

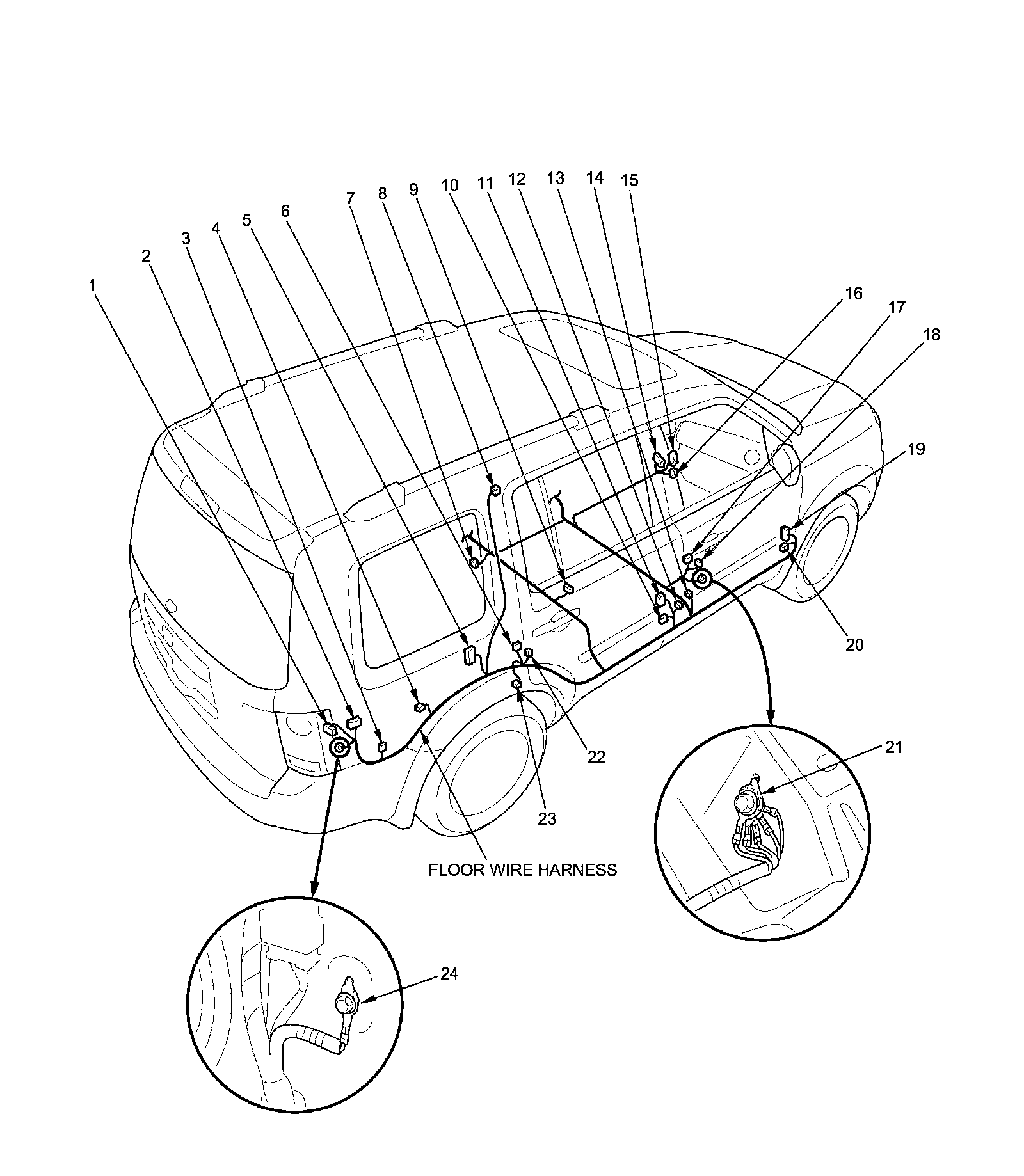

Floor Wire Harness (Right branch)
