Dashboard Wire Harness




Connector and Harness Locations

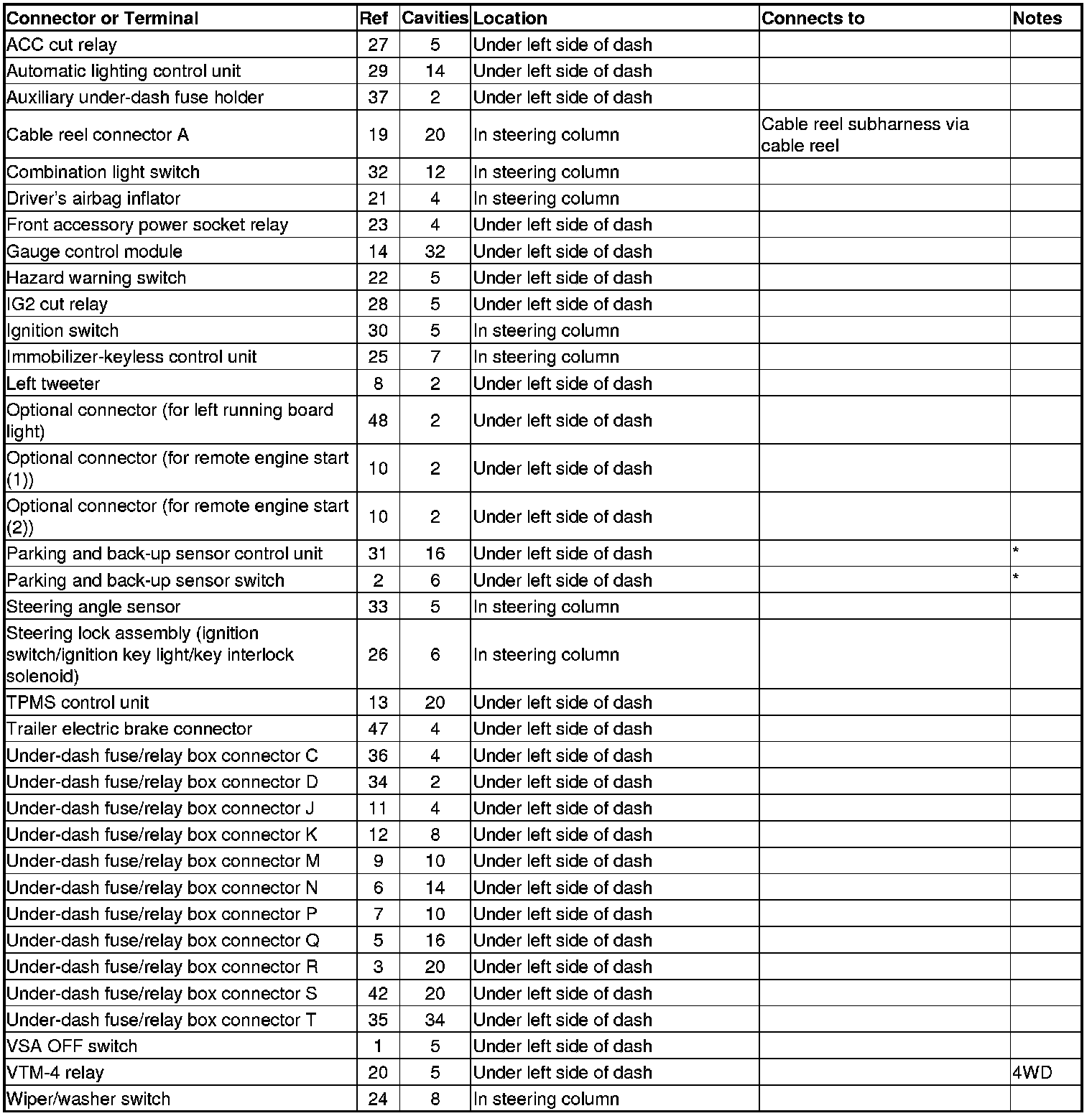

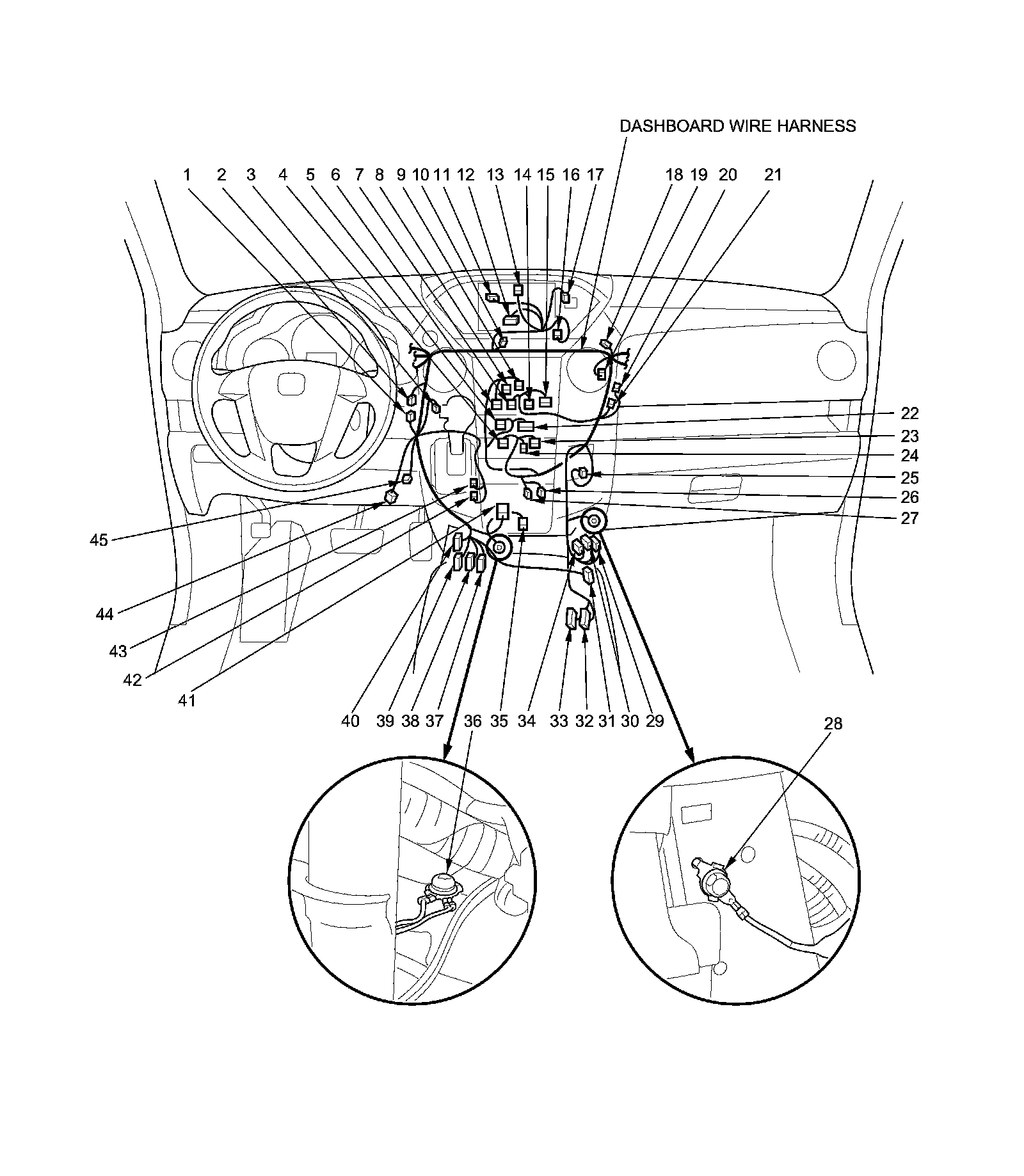

Dashboard Wire Harness (View of driver's side)

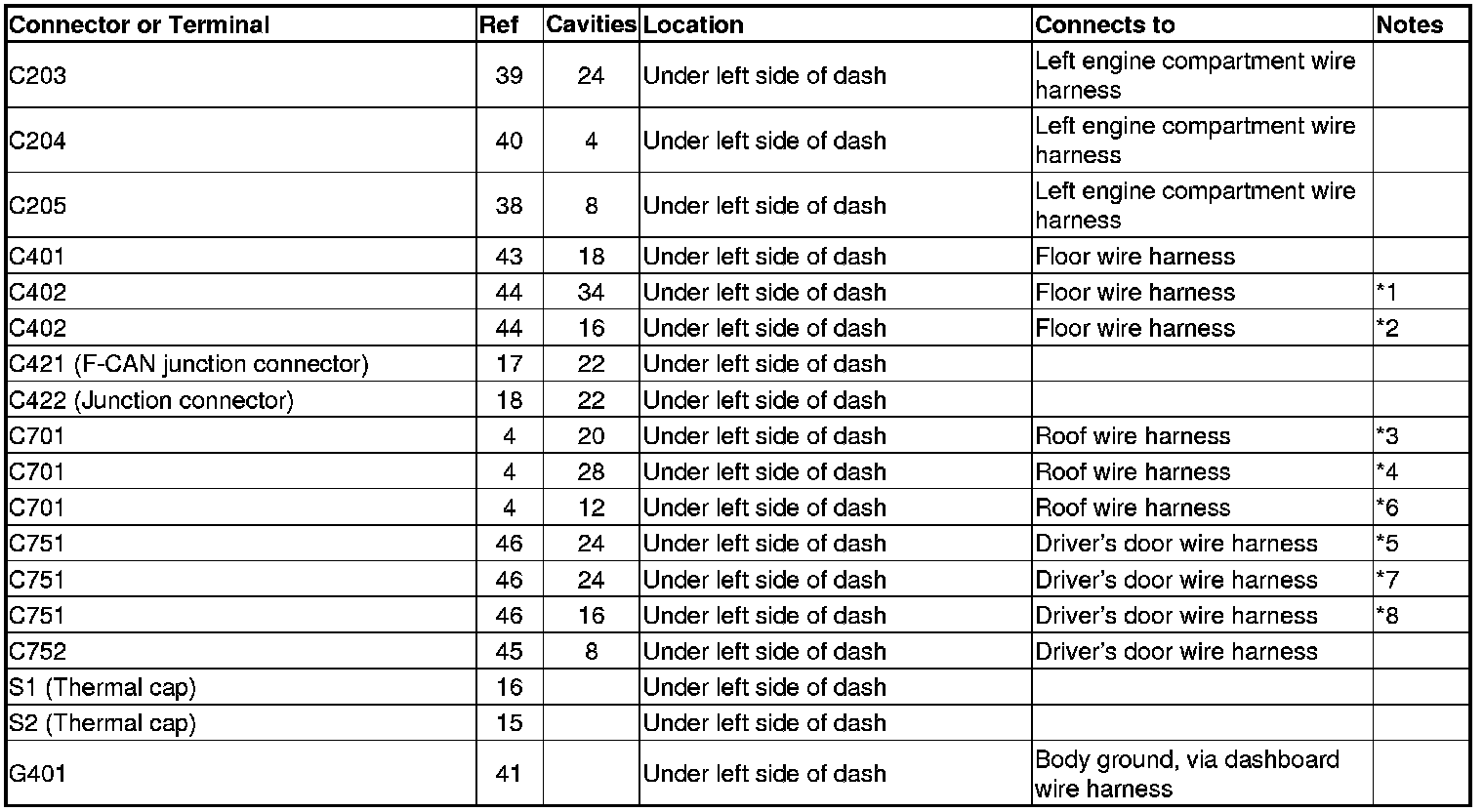

Dashboard Wire Harness (View of driver's side) (cont'd)

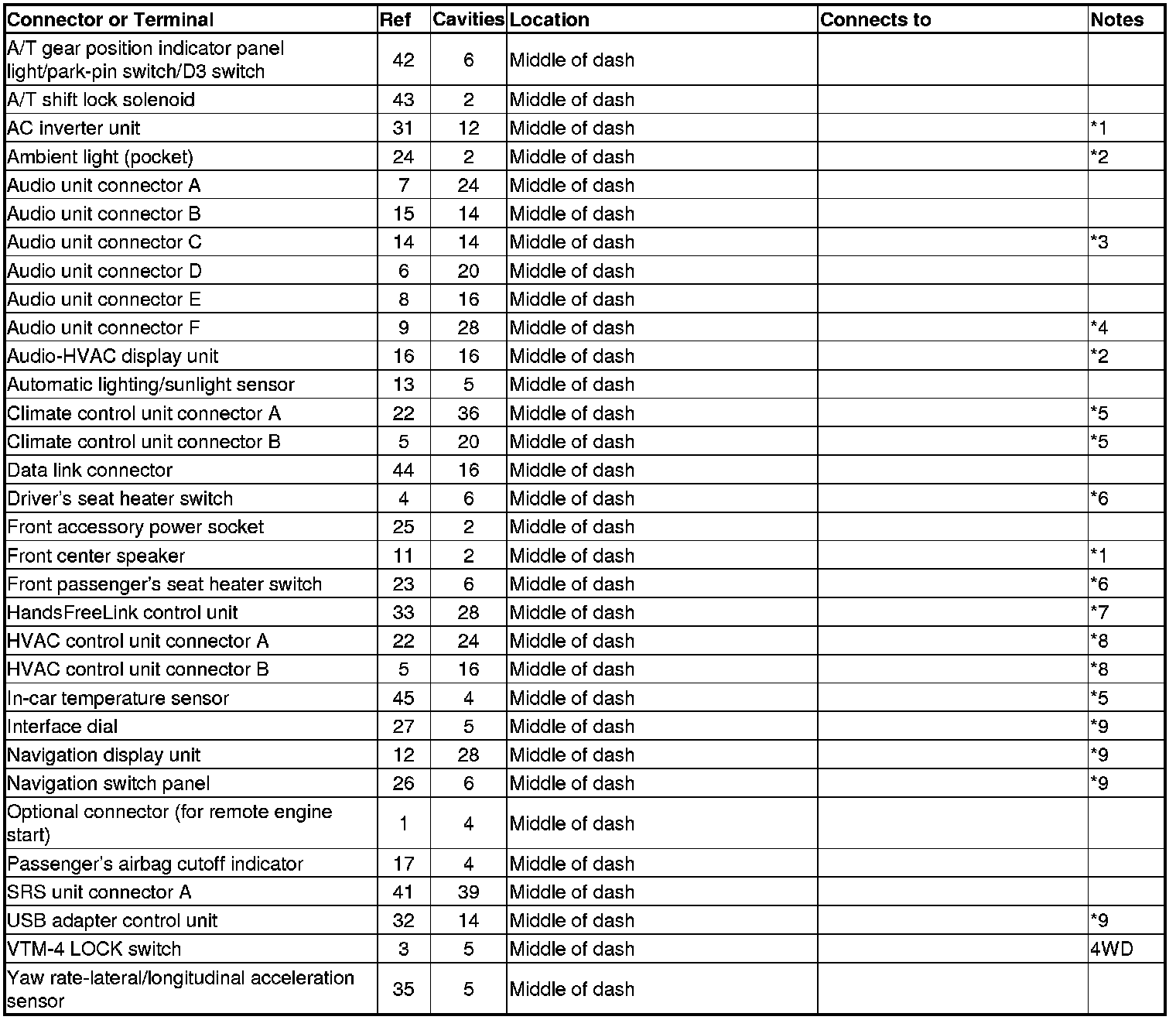

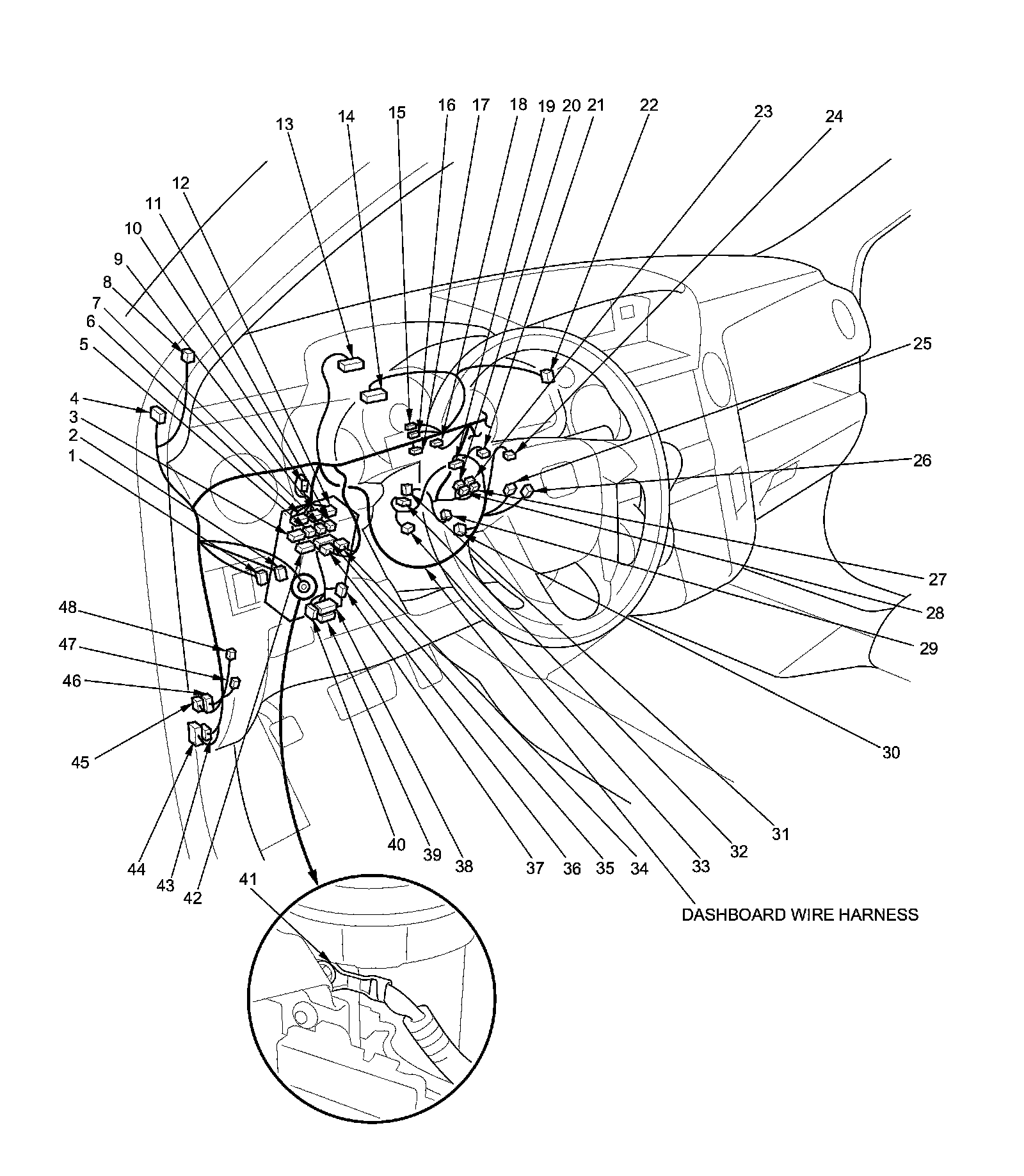

Dashboard Wire Harness (View of middle side)

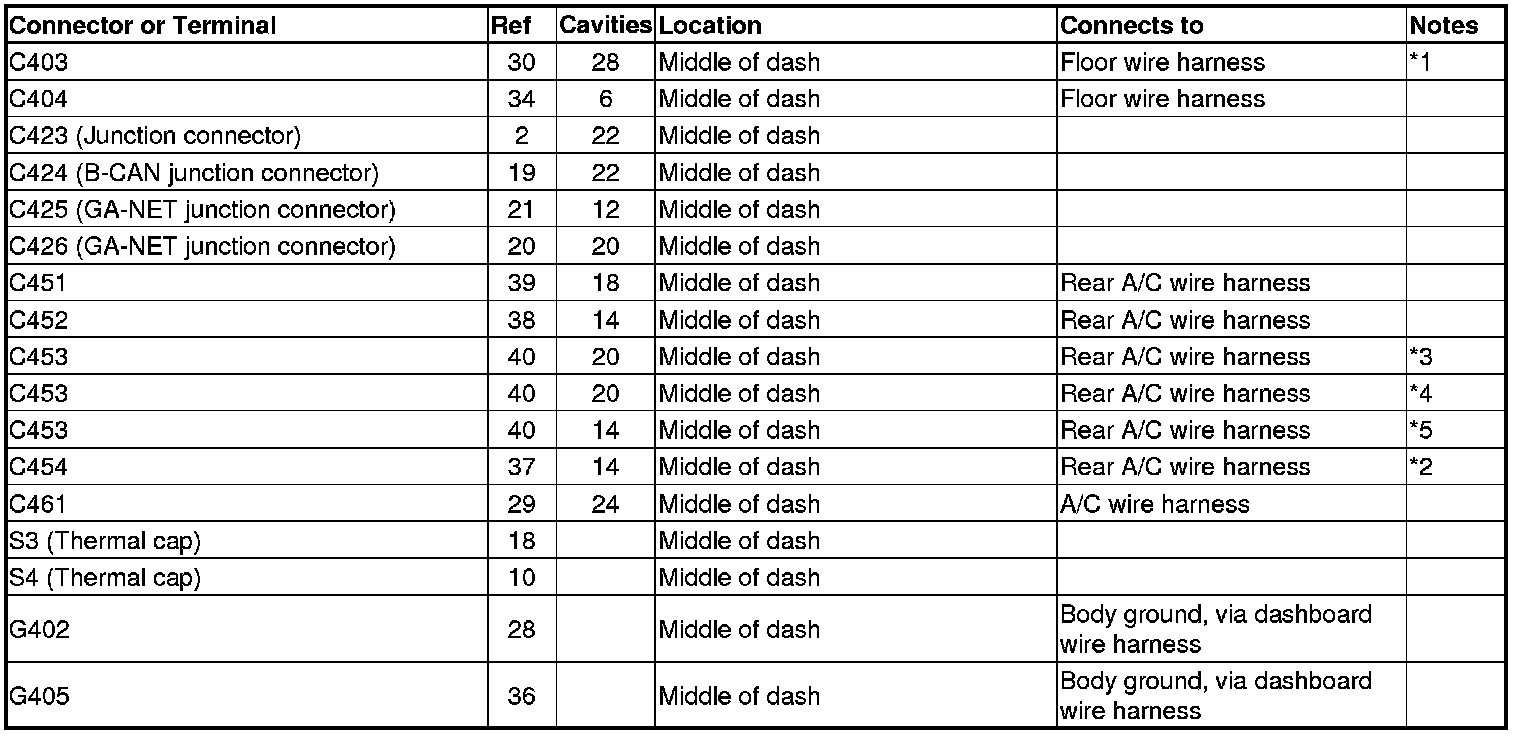

Dashboard Wire Harness (View of middle side) (cont'd)

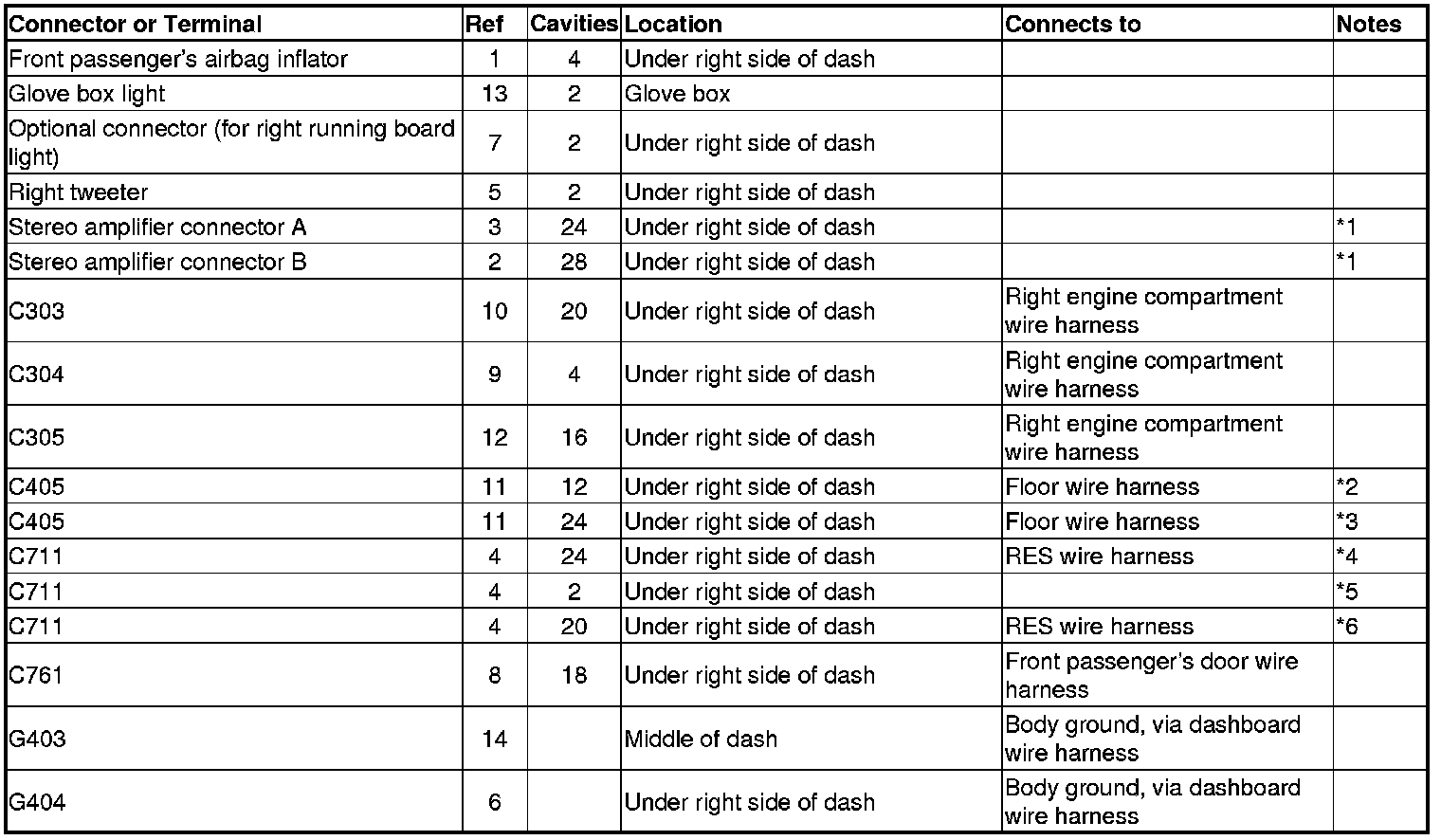

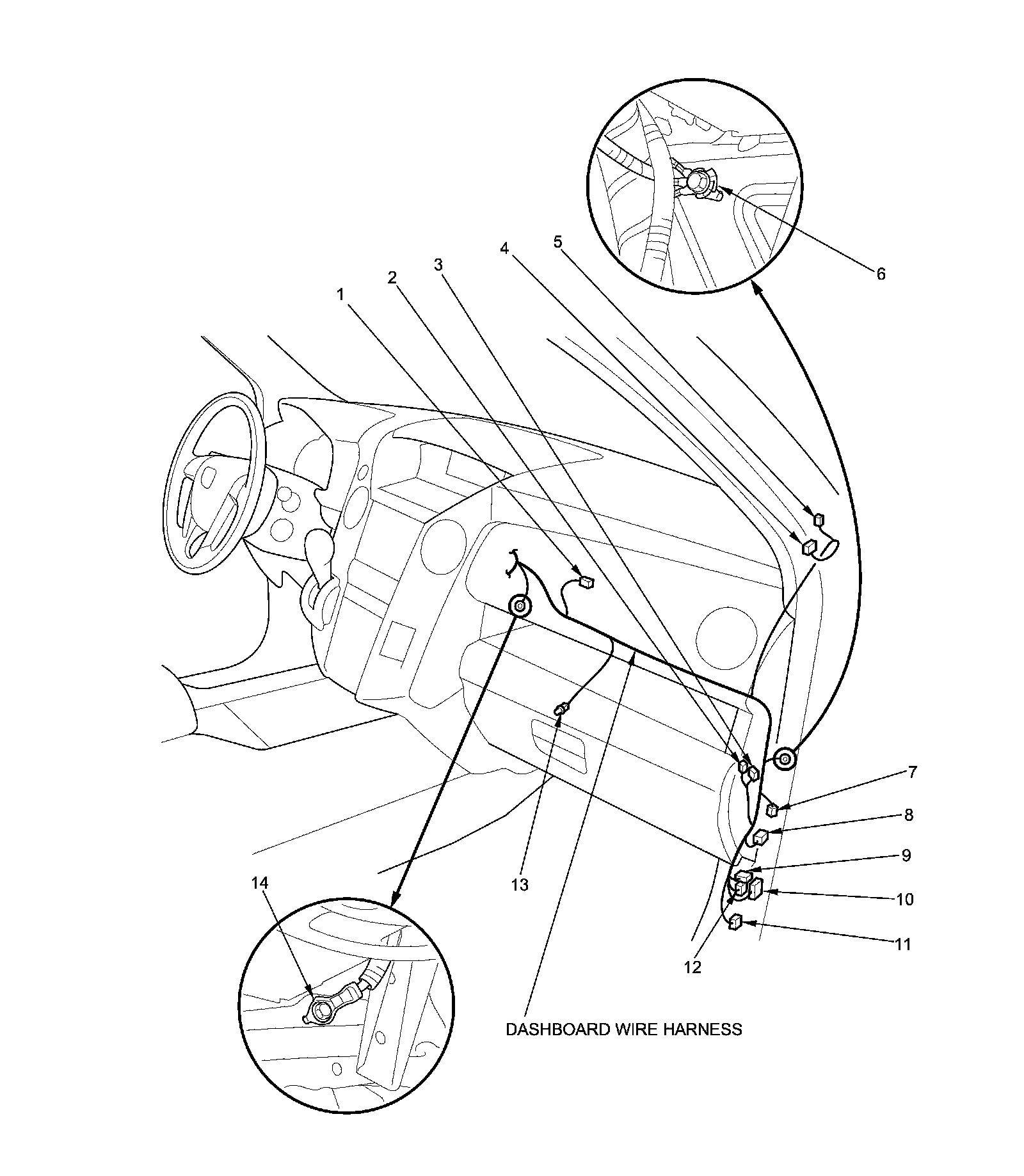

Dashboard Wire Harness (View of passenger's side)
