Headlamp: Service and Repair

Headlight Replacement

1. Remove the front bumper Service and Repair.

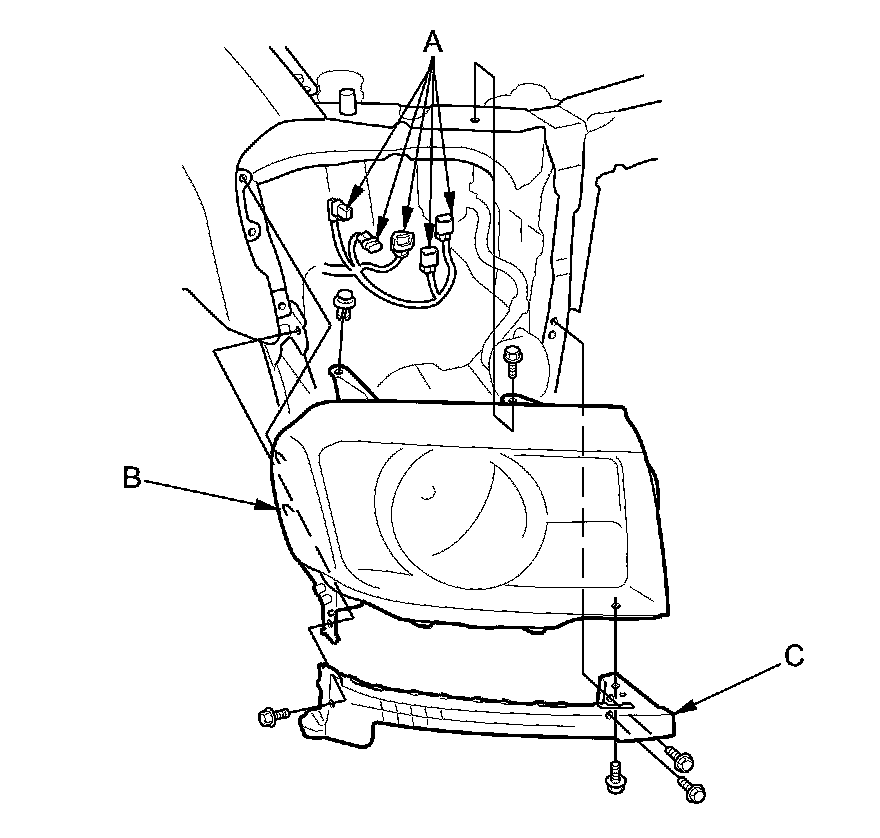

2. Disconnect the connectors (A) from the headlight assembly (B).





3. Remove the clips and bolts, then remove the corner upper beam (C) and headlight assembly.

4. Install the headlight in the reverse order of removal.

5. After the replacement, adjust the headlights to local requirements.
