Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter Replacement

1. Open the glove box, and release the glove box stops on each side, then let the glove box hang down Service and Repair.

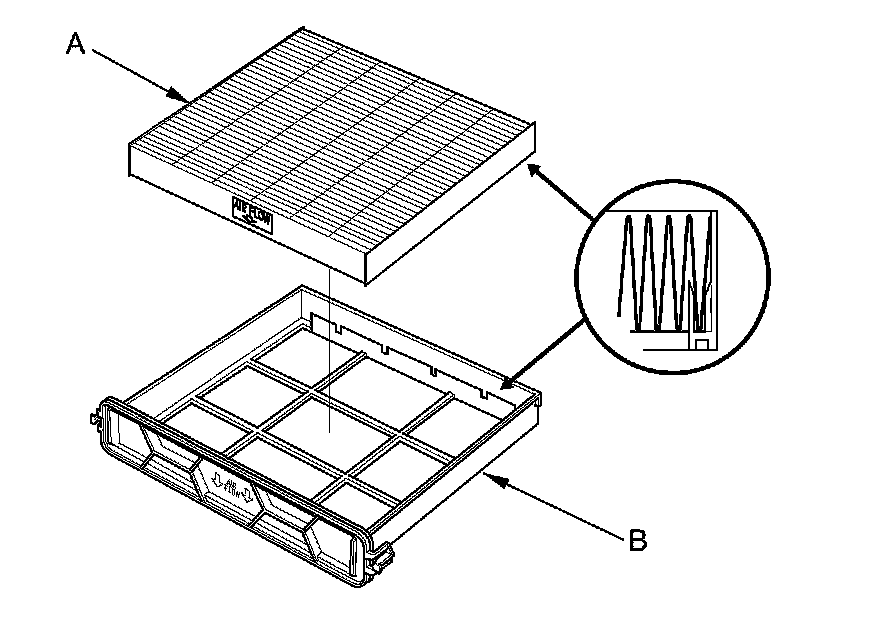

2. Remove the dust and pollen filter assembly (A) from the blower unit.






3. Remove the filter (A) from the housing (B), and replace the filter.





4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the blower unit.
