Front Air Mix Control Motor Replacement

Front Air Mix Control Motor Replacement

1. Remove self-tapping screws and the driver's heater duct (A).

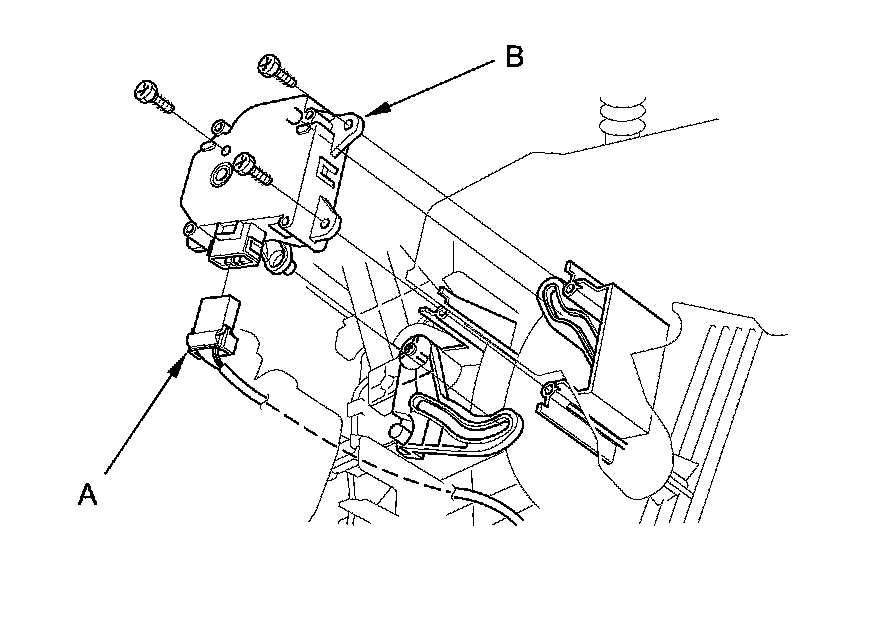

2. Disconnect the 7P connector (A) from the front air mix control motor (B). Remove the self-tapping screws and the front air mix control motor from the heater unit.
