Home >> Honda >> 2010 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Locations

Engine Lubrication: Locations

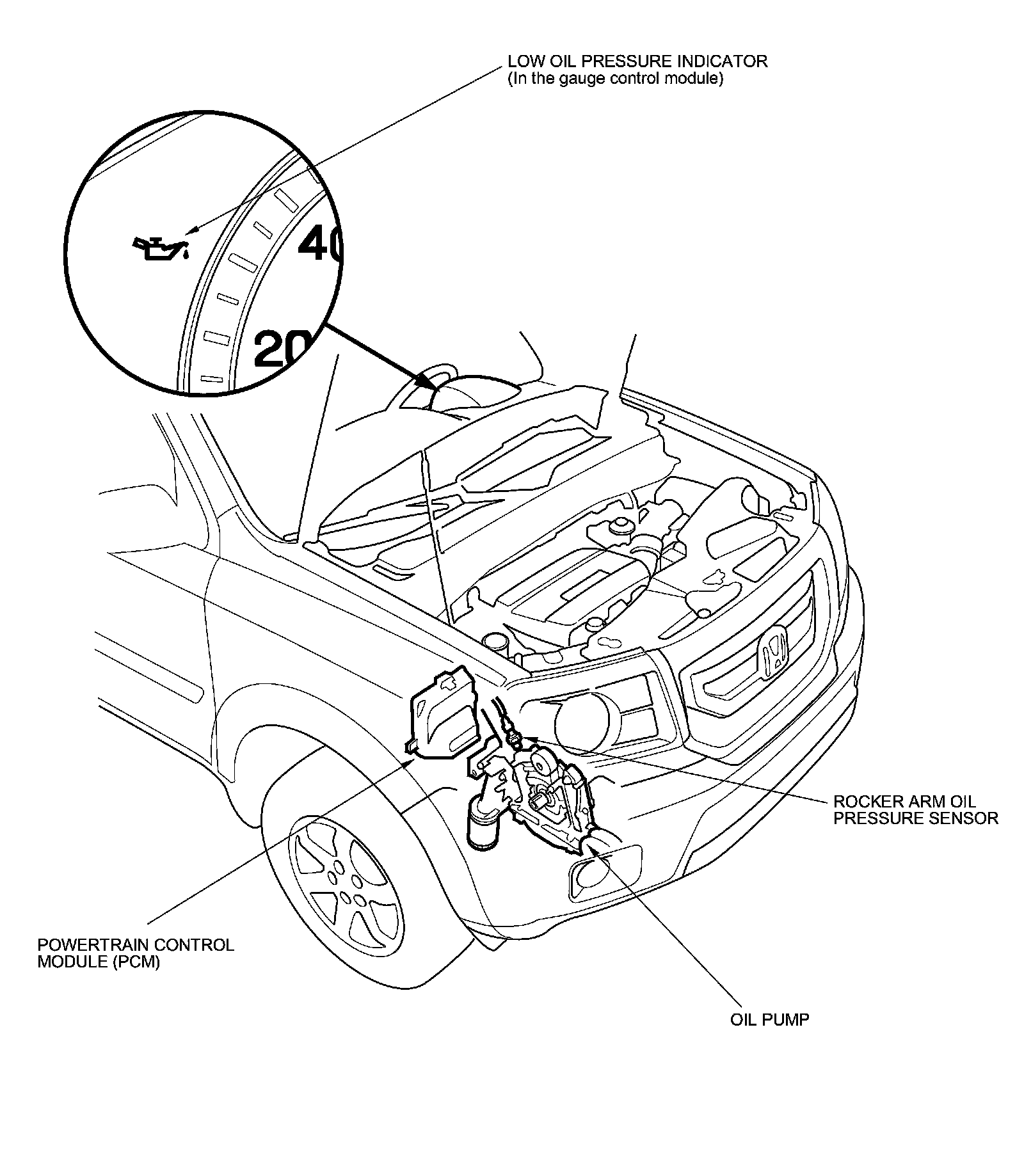

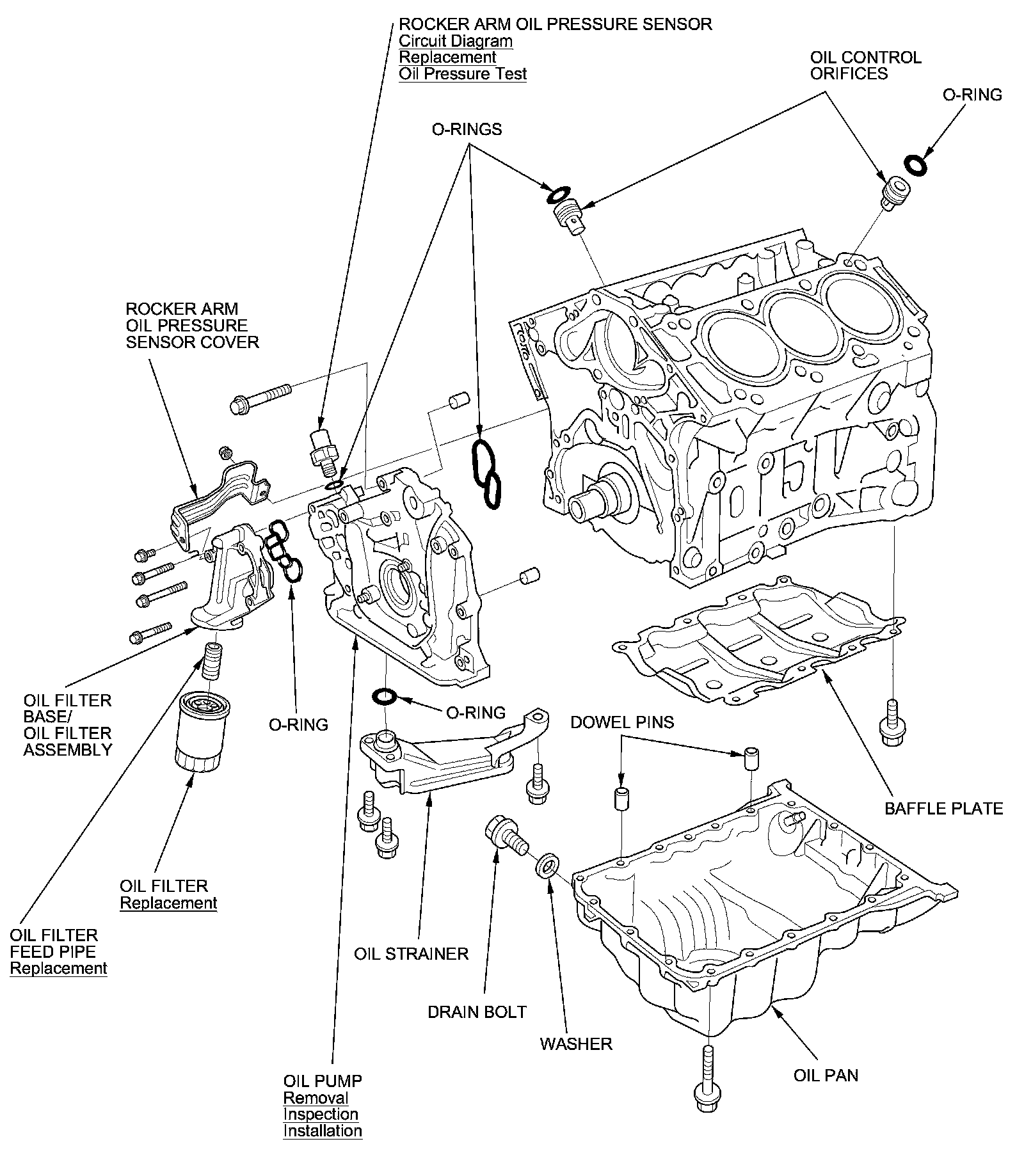

Engine Lubrication Component Location Index
