Rear Engine Mount Removal/Installation

Rear Engine Mount Removal and Installation

Removal

1. Remove the rear warm up three way catalytic converter (rear WU-TWC) Warm Up TWC Removal/Installation.

2. Remove the heat shield.






3. Lift and support the engine with a jack and a wood block under the engine/transmission.

4. Disconnect the rear engine mount actuator connector (A).

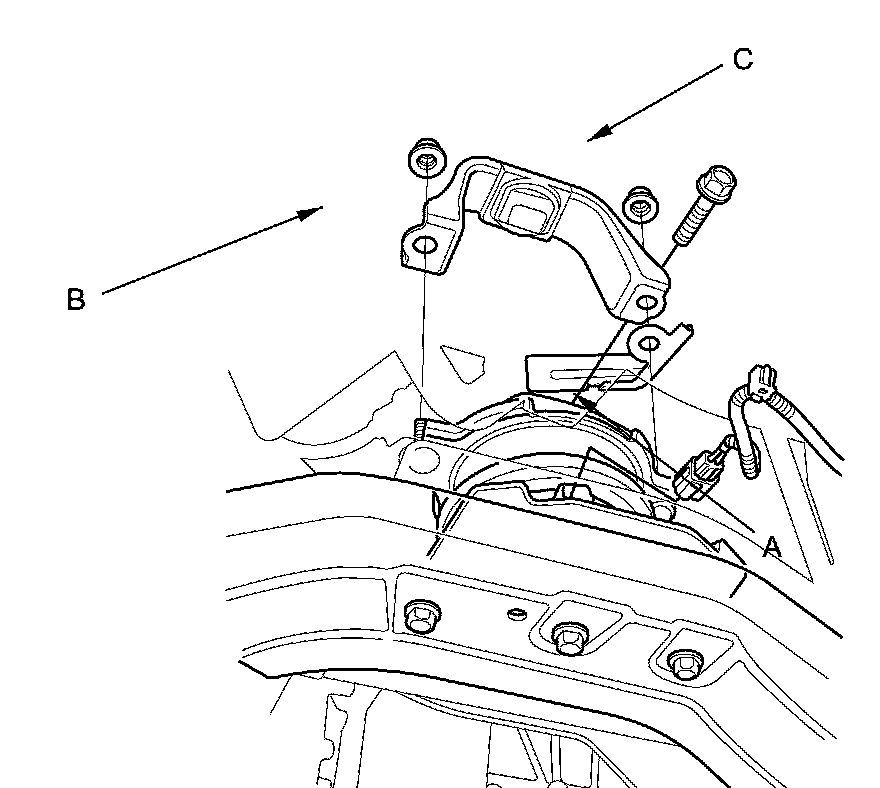

5. Remove the rear engine mount stop (B), then remove the rear engine mount bolt (C).

6. Remove the rear engine mount (A).






Installation

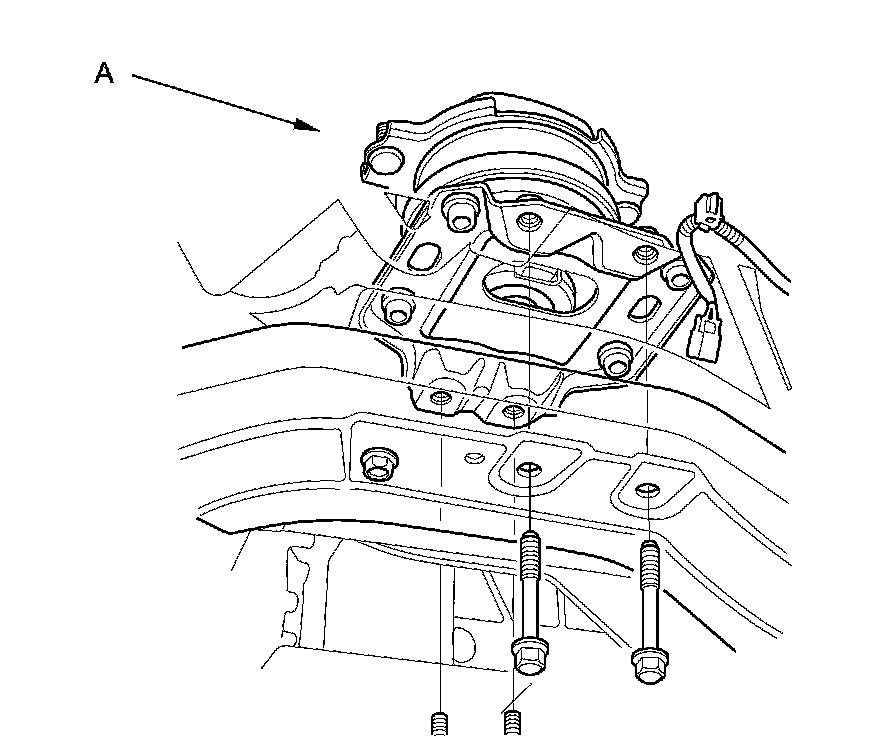

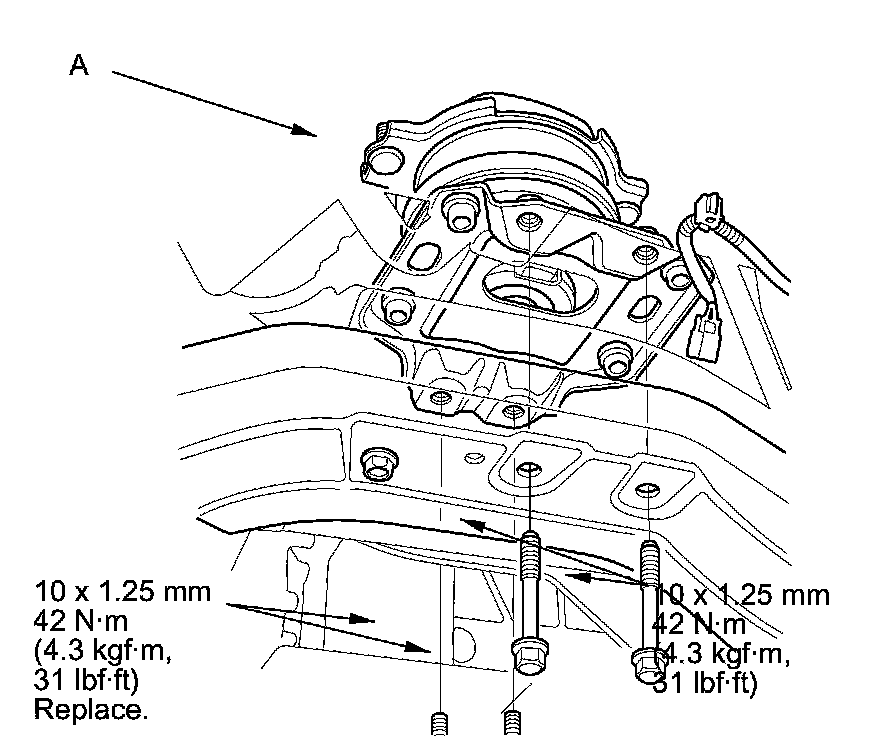

1. Install the rear engine mount (A).






2. Remove the jack and the wood block.

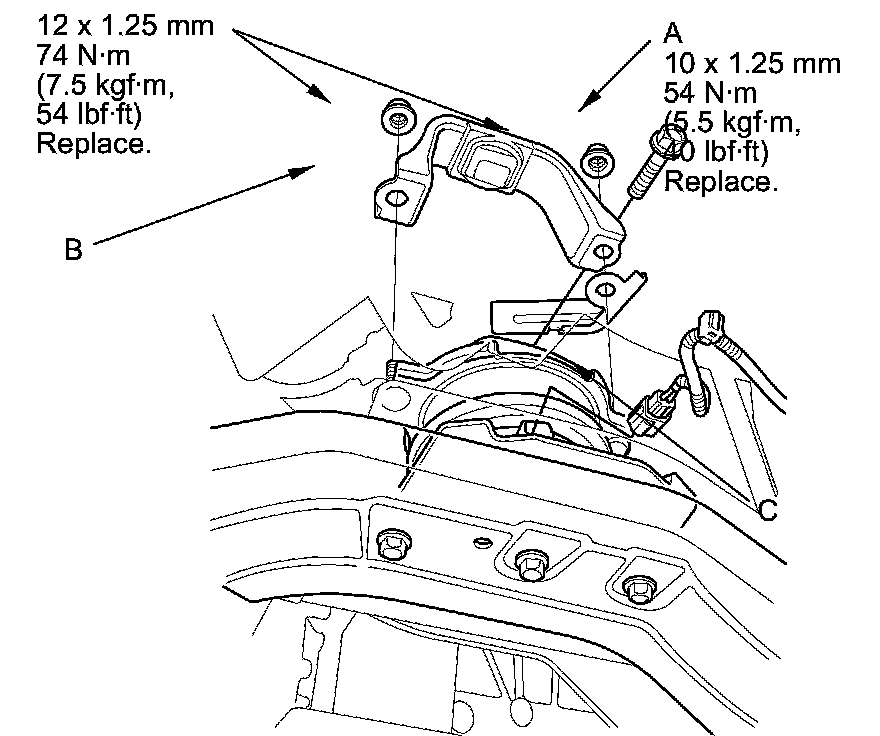

3. Tighten the rear engine mount bolt (A), then install the rear engine mount stop (B).





4. Connect the rear engine mount actuator connector (C).

5. Install the heat shield.






6. Install the rear WU-TWC Warm Up TWC Removal/Installation.
