Front Engine Mount Removal/Installation

Front Engine Mount Removal and Installation

Removal

1. Remove the radiator Service and Repair.

2. Lift and support the engine with a jack and a wood block under the engine/transmission.

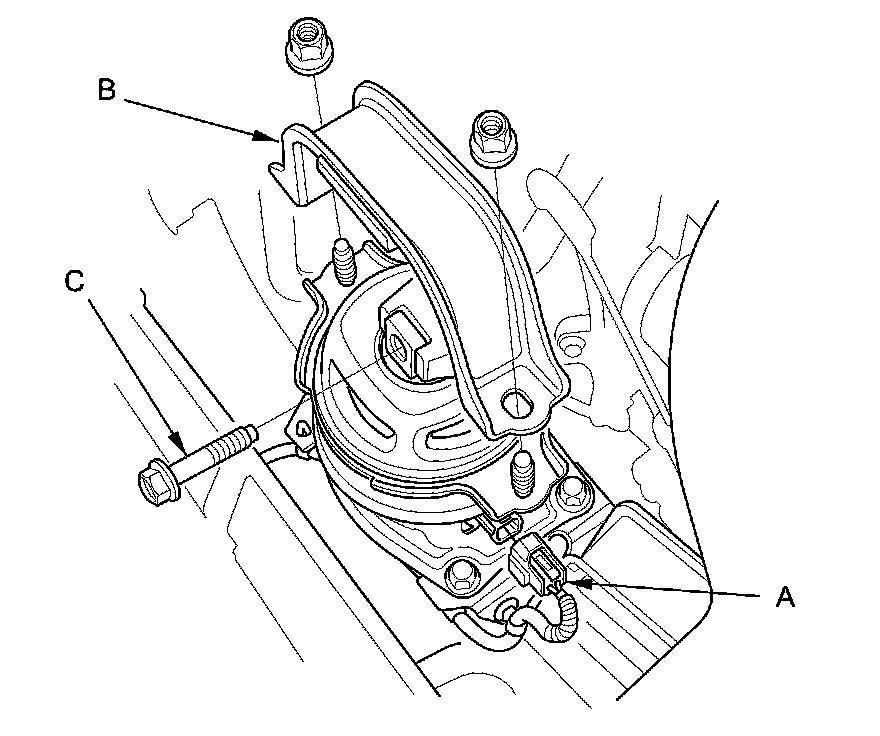

3. Disconnect the front engine mount actuator connector (A).





4. Remove the front engine mount stop (B), then remove the front engine mount bolt (C).

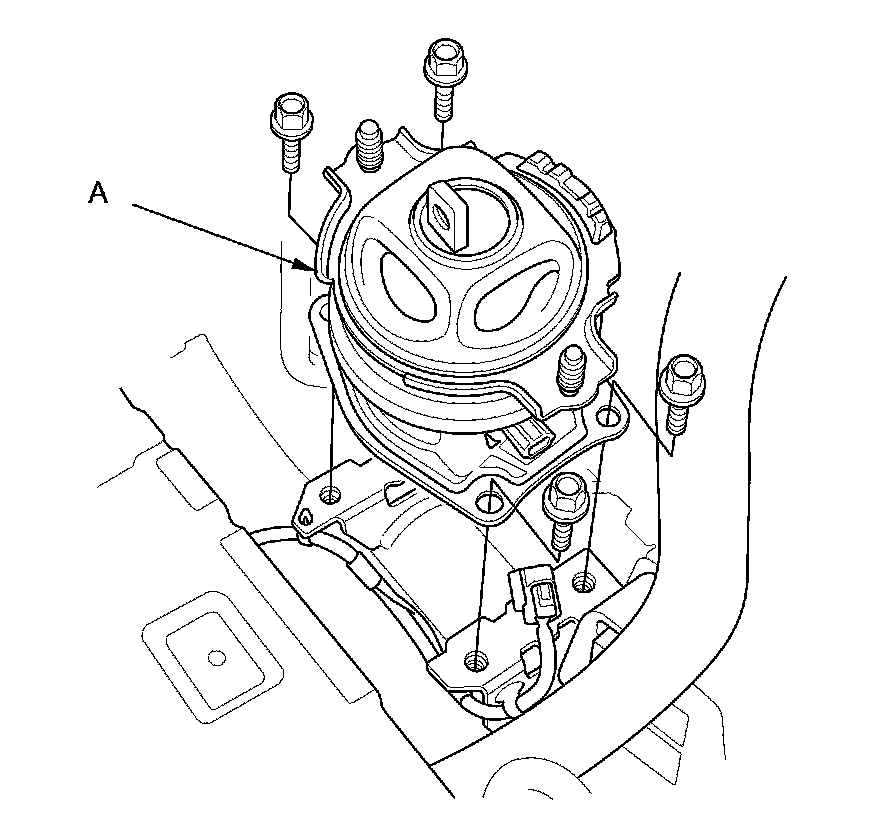

5. Remove the front engine mount (A).






Installation

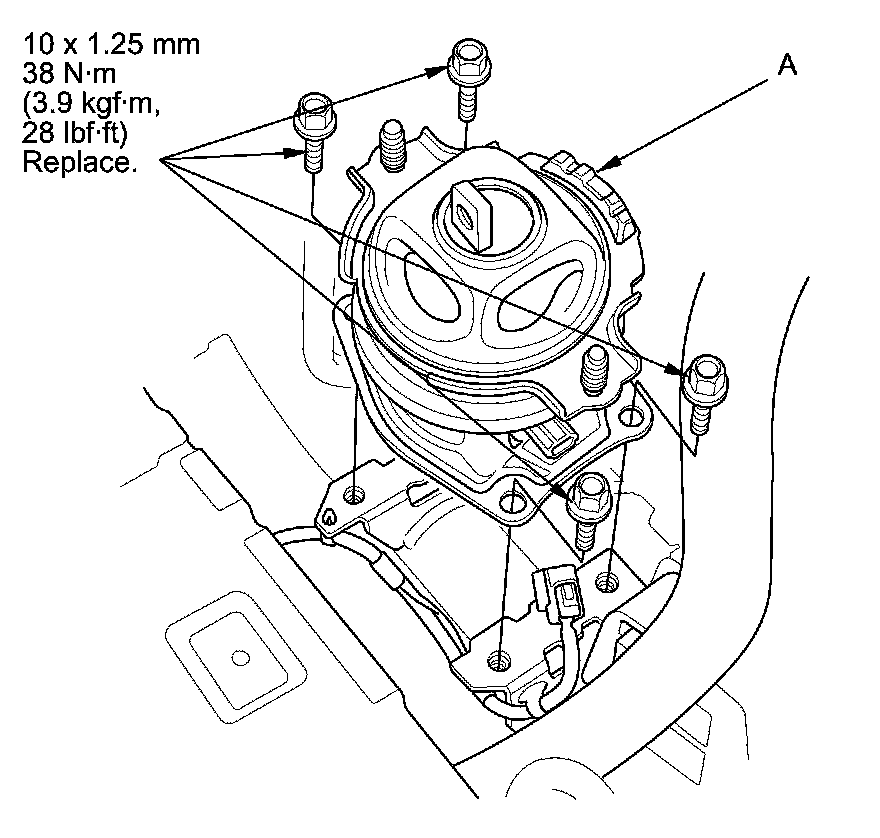

1. Install the front engine mount (A).





2. Remove the jack and the wood block.

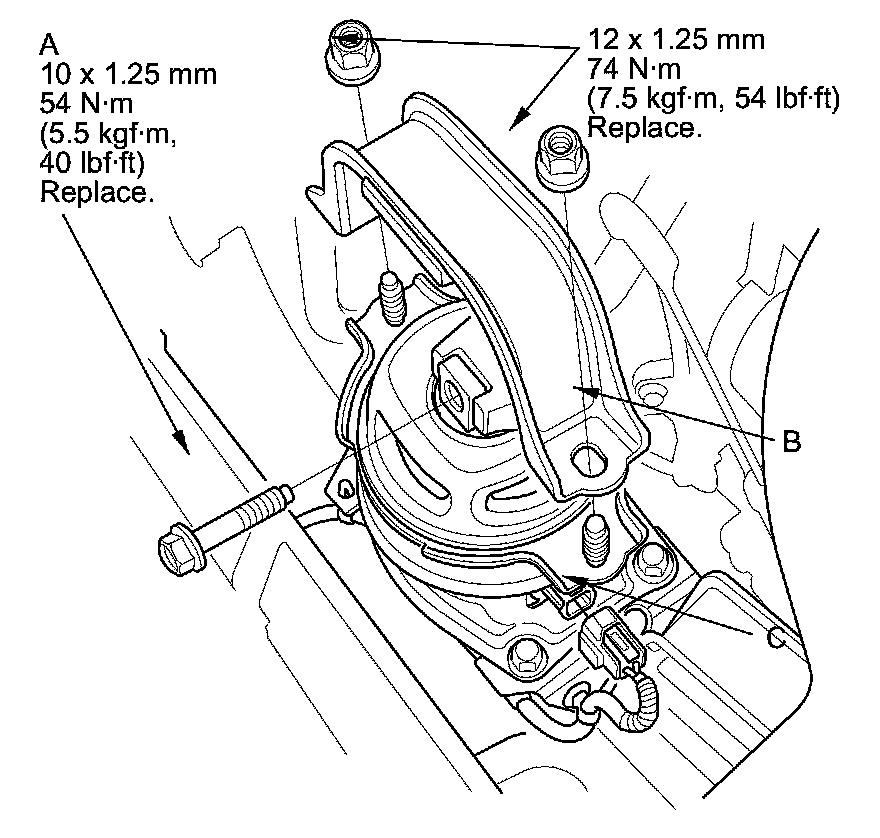

3. Tighten the front engine mount bolt (A), then install the front engine mount stop (B).





4. Connect the front engine mount actuator connector (C).

5. Install the radiator Service and Repair.
