Engine Block Sealing Bolt Installation




Engine Block Sealing Bolt Installation

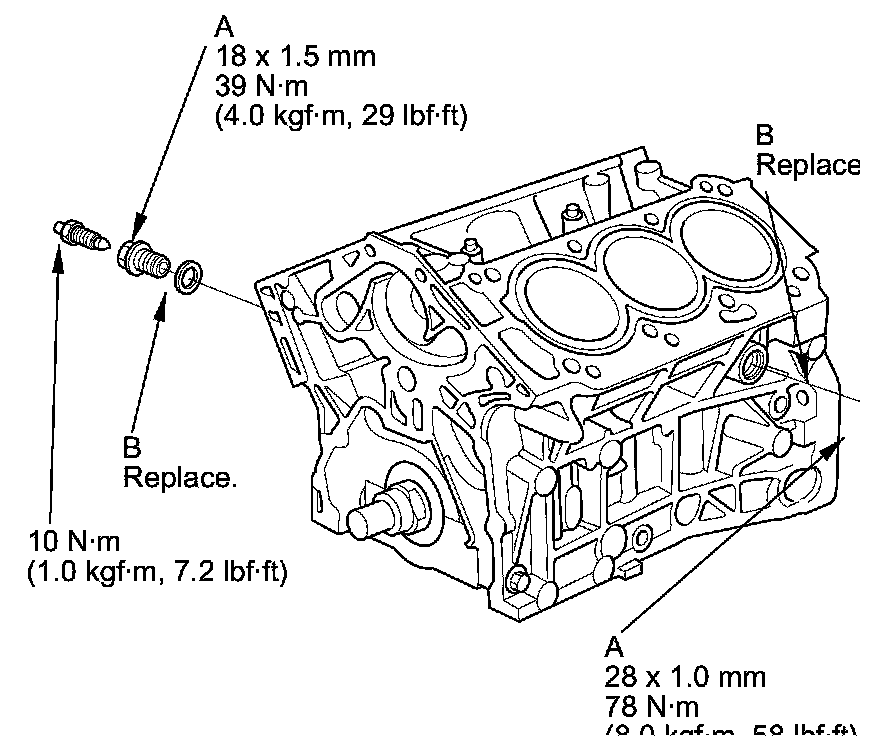

NOTE: When installing the sealing bolts (A), always use new washers (B).
