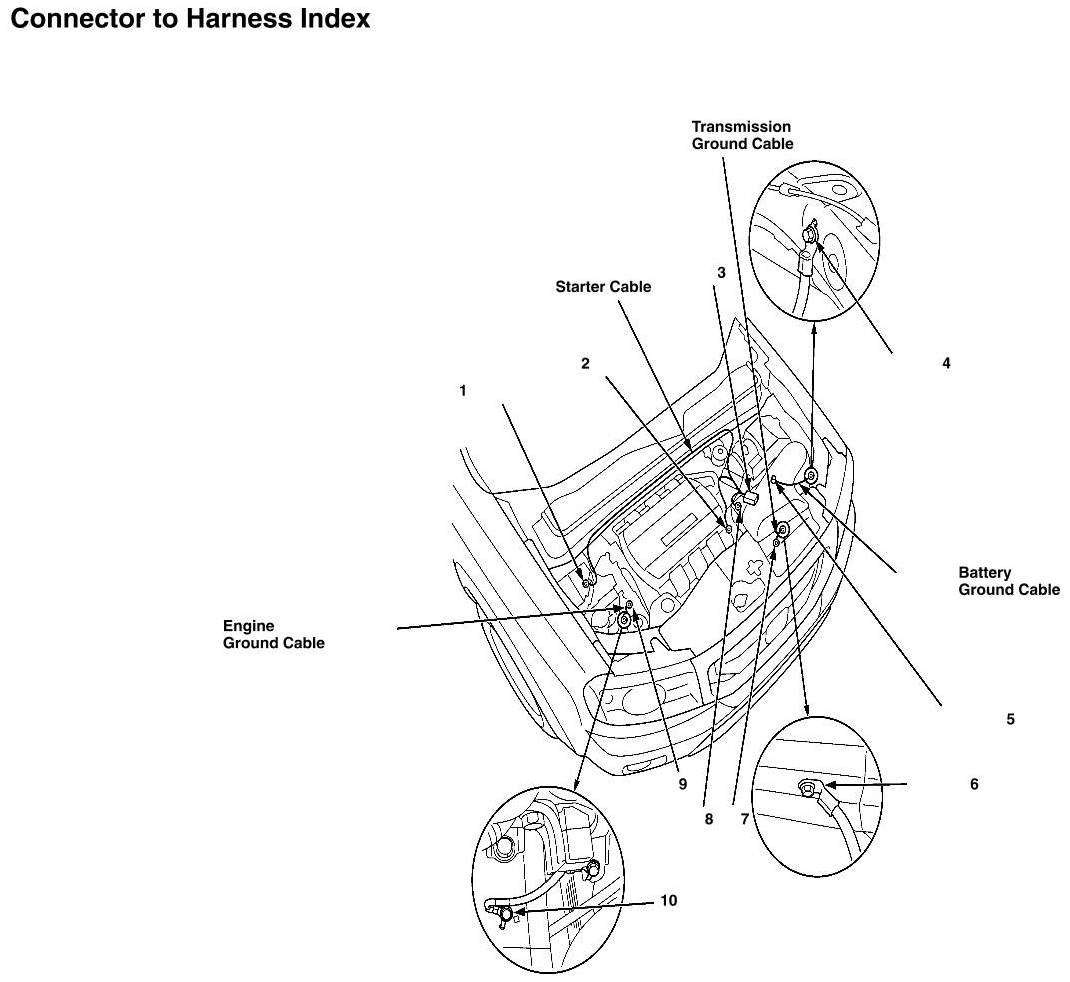

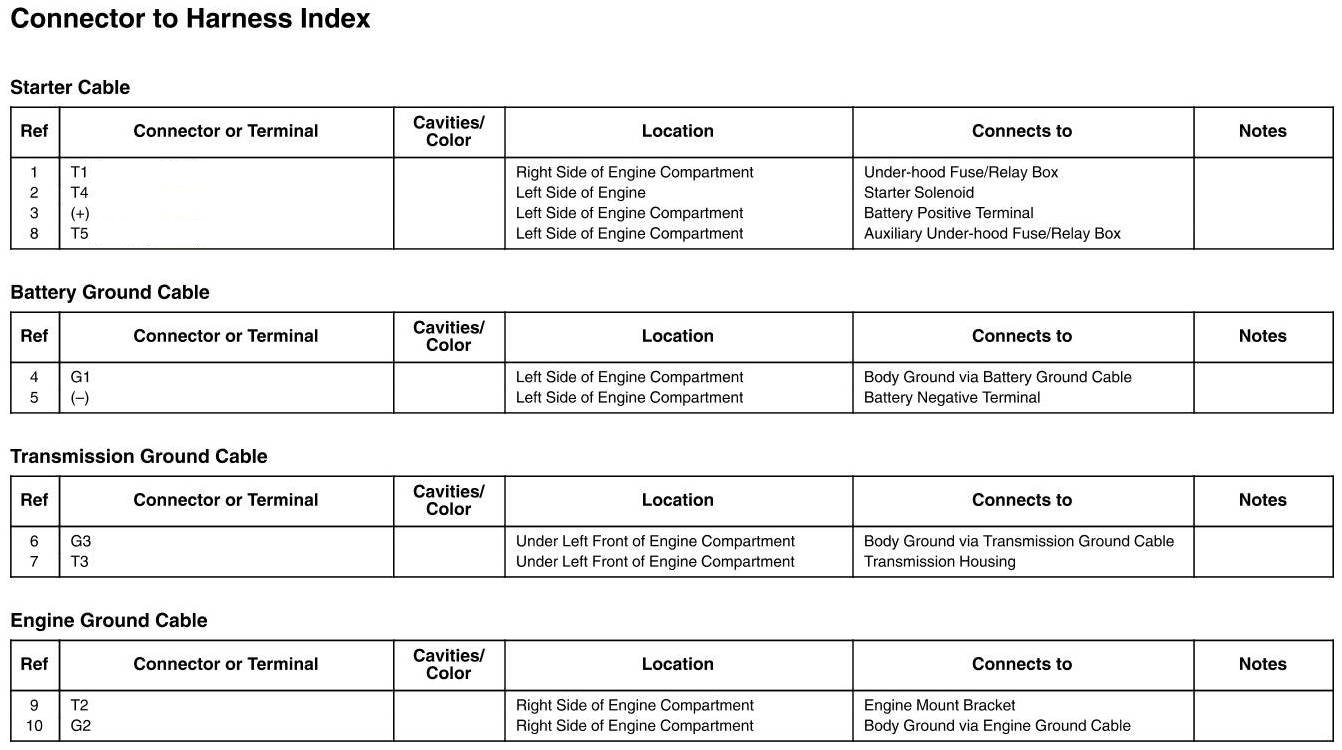

Starter Cable, Battery Ground Cable, Transmission Ground Cable, and Engine Ground Cable Connector and Harness Locations
Starter Cable, Battery Ground Cable, Transmission Ground Cable, and Engine Ground Cable Connector and Harness Locations
