Home >> Honda >> 2010 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Right Engine Compartment Wire Harness; ECT Sensor, Engine Mount Control Solenoid Sub-harness Connector and Harness Locations

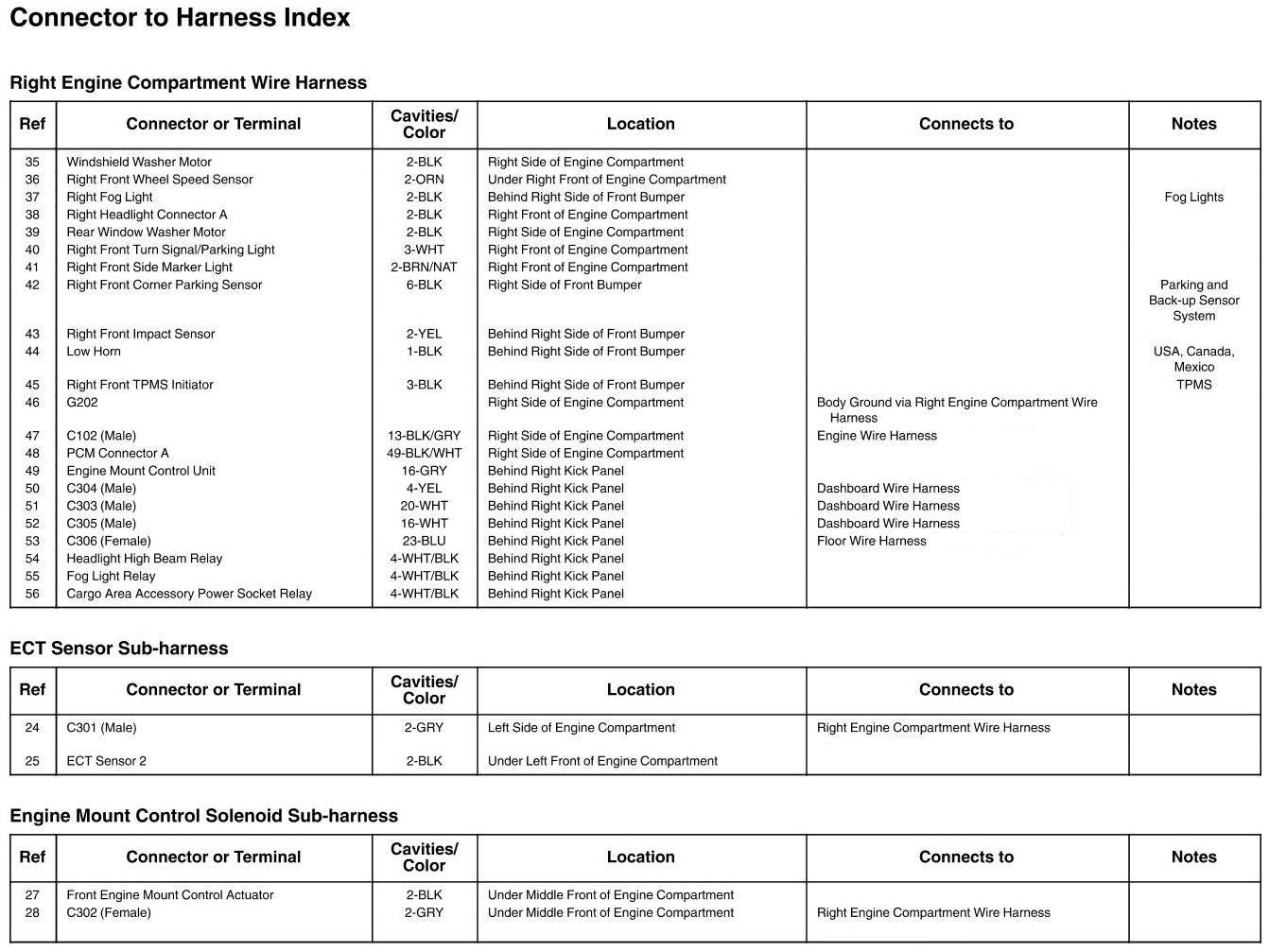

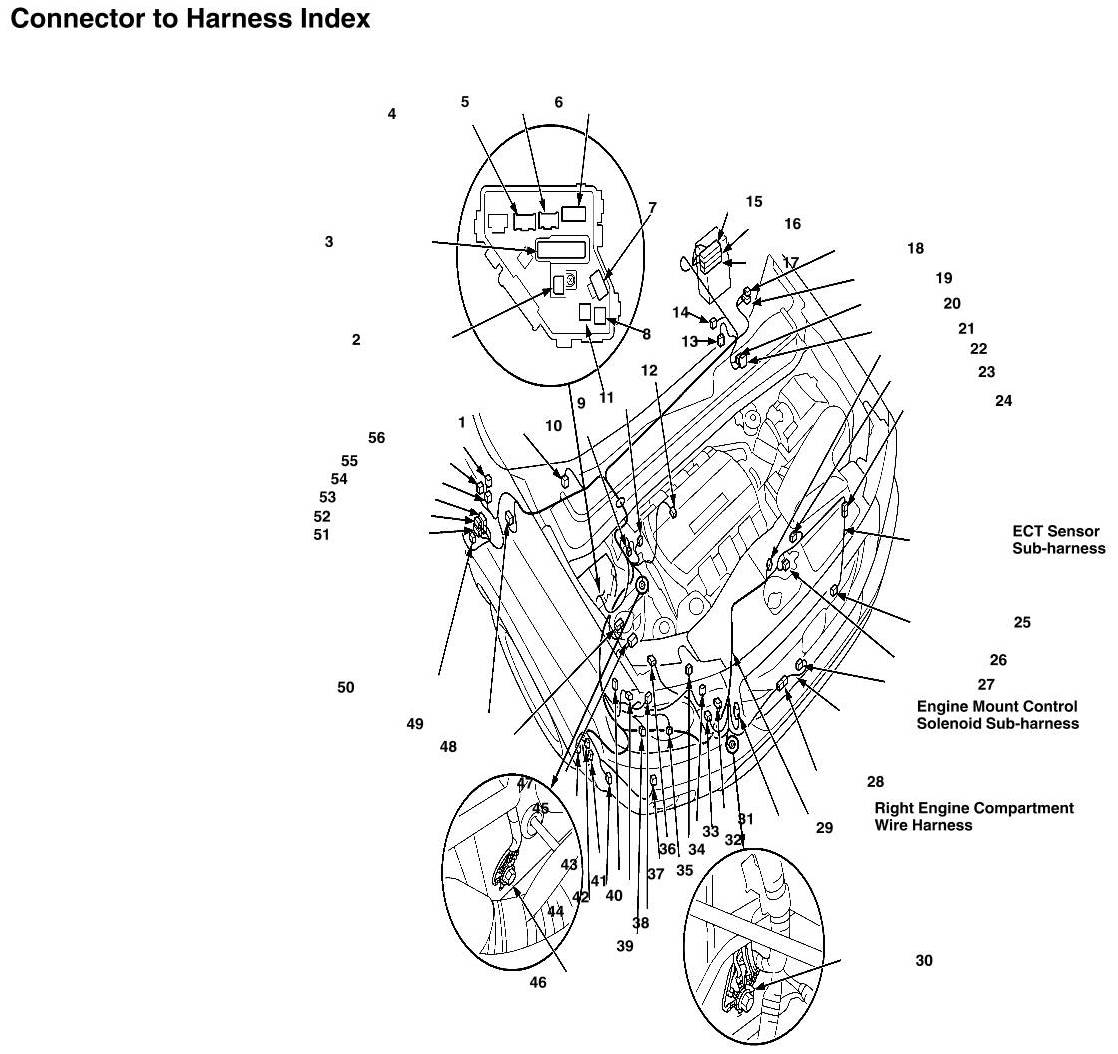

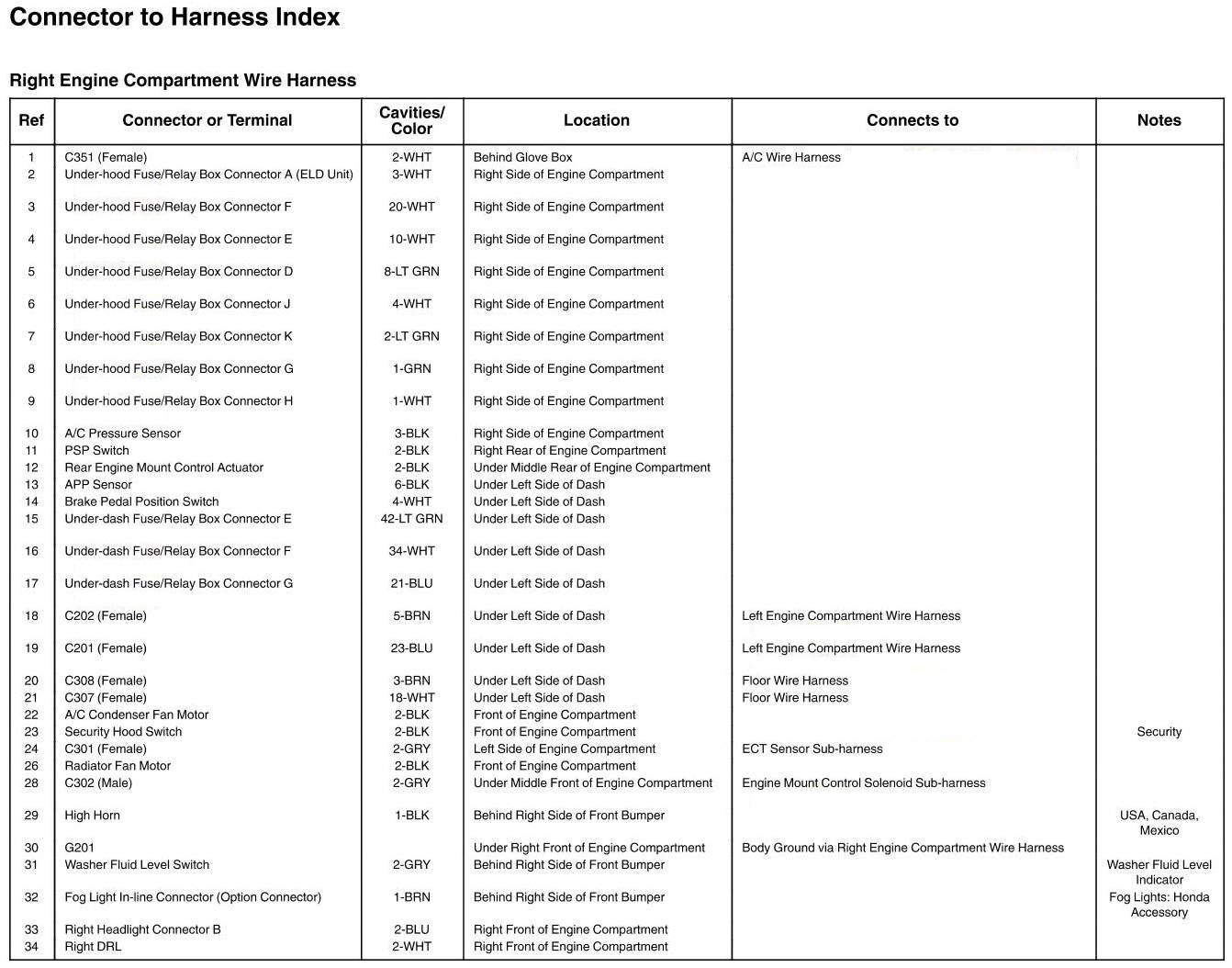

Right Engine Compartment Wire Harness; ECT Sensor, Engine Mount Control Solenoid Sub-harness Connector and Harness Locations
